Tricone Drill Bit
>
|
| Place of Origin | China |
| Brand Name | ROSCHEN |
| Certification | ISO9001 |
| Model Number | 3 7/8"~26" |

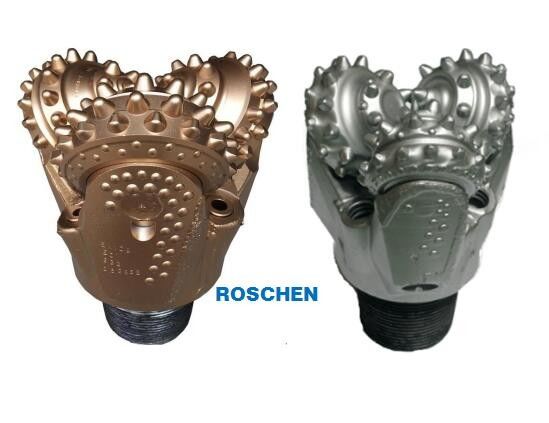

9 5/8inch Tri cone Rock Bit for Mining
Product Discription
| PRODUCT SPECIFICATIONS | |
| product name | 9 5/8 inch TCI tricone bit |
| size | 9 5/8 inch,244.5mm |
| tooth type | TCI |
| connection | 6 5/8" API Reg |
| bearing | Open bearing |
| Nozzle | three jet nozzles |
| application | Mining,exploration,etc |
| weight | 65kg |
| certificate | API7-1,SY/T5164,ISO9001:2008 |
The TriCone Bit is the most versatile drill bit on the market. It is the go to drill bit in most styles of drilling. ROSCHEN Tools always has the right Tri Cone Drill Bit for you Whether you are drilling a water well or an oil well.
Feature and Advantage
1. There is a Tri Cone suitable for any rock formation
2. Tricone bit is versatile and can handle changing formations
3. Tri Cones are reasonably priced, long lasting and have an efficient drilling rate
Specification
Tricone bits , hole openers can be used to explore /drill gas/oil/geothermal/water wells. 3 7/8”~26” are available for Tricone bits. 4 1/2”~17 1/2” are available for Diamond PDC bits.
| RECOMMENDED ROCK FORMATION | |||||||||
| Hard formation with high abrasiveness,such as hard limestone,dolomite,hard sandstone and chert,etc. | |||||||||
| RECOMMENDED DRILLING PARAMETERS FOR APPLICATION | |||||||||
| Type&IADC code | 417 | 437 | 447 | 517,527 | 537,547 | 617,627 | 637,647 | 737,837 | |
| WOB(KN/mm) | 0.35~0.90 | 0.35~0.95 | 0.35~1.00 | 0.35~1.05 | 0.35~1.05 | 0.35~1.05 | 0.70~1.20 | 0.70~1.20 | |
| RPM(r/min) | 140~70 | 140~60 | 140~60 | 120~50 | 110~40 | 80~40 | 70~40 | 70~40 | |
CUTTING STRUCTURE:
Gauge rows are ovoid type and inner rows are conical type
SHIRTTAIL PROTECTION:
Hard metal on lug;
Wear resistant carbide on shirttail lip and lug.
About us
ROSCHEN extensive products line includes DTH and reverse circulation hammers and bits, tricone bits, adaptor subs, air perforators, well casing, drill steel, casing alignment clamps and torch guides, diverter boxes, shock absorbers, retract hammers, thread lubes, oilers, as well as a comprehensive line of Matex environmentally friendly foamers, rock drill oils, polymers, and more.
Others
• Payment Terms
We accept T/T (30% in advance for big order, full T/T for small order), Wester Union, L/C at sight
• Delivery Tim
10 days after receipt payment for small order, 15~30 days for big order.
• Shipping Ways
Below 100kg, Suggest by DHL/FeDex/UPS/TNT internation express, between 100~500kg ,suggest by air, above 500kg, suggest by sea.
