Home
>
products
>
Tricone Drill Bit
>
|
| Place of Origin | China |
| Brand Name | ROSCHEN |
| Certification | ISO9001 |
| Model Number | 3 7/8"~26" |

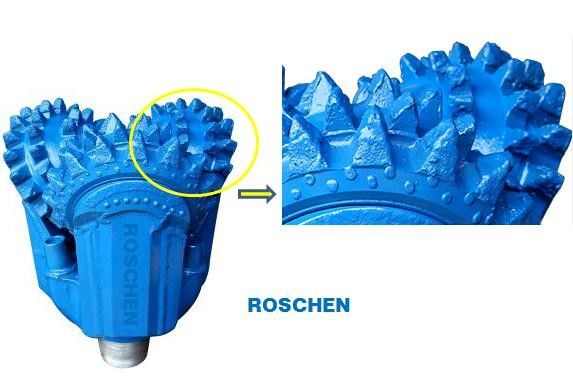

24inch Milled Tooth Tricone Bit IADC 127
Product Discription
The TriCone Bit is the most versatile drill bit on the market. It is the go to drill bit in most styles of drilling. ROSCHEN Tools always has the right Tri Cone Drill Bit for you Whether you are drilling a water well or an oil well.
| PRODUCT SPECIFICATIONS | |
| product name | 24 inch mill tooth tricone bit |
| size | 24 inch,609.6mm |
| tooth type | mill tooth |
| connection | 7 5/8" API Reg |
| bearing | elastomer rubber sealed journal bearing |
| Nozzle | three jet nozzles |
| application | water well,oil well,HDD,exploration,etc |
| weight | 720kg |
| certificate | API7-1,SY/T5164,ISO9001:2008 |
Feature and Advantage
1. There is a Tri Cone suitable for any rock formation
2. Tricone bit is versatile and can handle changing formations
3. Tri Cones are reasonably priced, long lasting and have an efficient drilling rate
Specification
Tricone bits , hole openers can be used to explore /drill gas/oil/geothermal/water wells. 3 7/8”~26” are available for Tricone bits. 4 1/2”~17 1/2” are available for Diamond PDC bits.
The TCI Tricone Bit ranges in size from 3.875” (88.9mm) to 28” (711.2mm)
The Mill Tooth TriCone Bit ranges in size from 5” (127mm to 32” (812.8mm)
| RECOMMENDED DRILLING PARAMETERS FOR APPLICATION | ||||||
| Type&IADC code | 116,117,115 | 126,127 | 136,137 | 216,217 | 317 | 337 |
| WOB(KN/mm) | 0.35~0.90 | 0.35~1.00 | 0.35~1.05 | 0.35~1.2 | 0.7~1.30 | 0.80~1.40 |
| RPM(r/min) | 150~80 | 150~70 | 120~60 | 90~50 | 80~45 | 75~45 |
Medium hard with relatively higher compressive strength and hard stringers, such as hard shale, sandstone and limestone, etc.
About us
Our extensive product line includes DTH and reverse circulation hammers and bits, tricone bits, adaptor subs, air perforators, well casing, drill steel, casing alignment clamps and torch guides, diverter boxes, shock absorbers, retract hammers, thread lubes, oilers, as well as a comprehensive line of Matex environmentally friendly foamers, rock drill oils, polymers, and more.
Others
• Payment Terms
We accept T/T (30% in advance for big order, full T/T for small order), Wester Union, L/C at sight
• Delivery Tim
10 days after receipt payment for small order, 15~30 days for big order.
• Shipping Ways
Below 100kg, Suggest by DHL/FeDex/UPS/TNT internation express, between 100~500kg ,suggest by air, above 500kg, suggest by sea.
