Tricone Drill Bit
>
|
| Place of Origin | China |
| Brand Name | ROSCHEN |
| Certification | API |

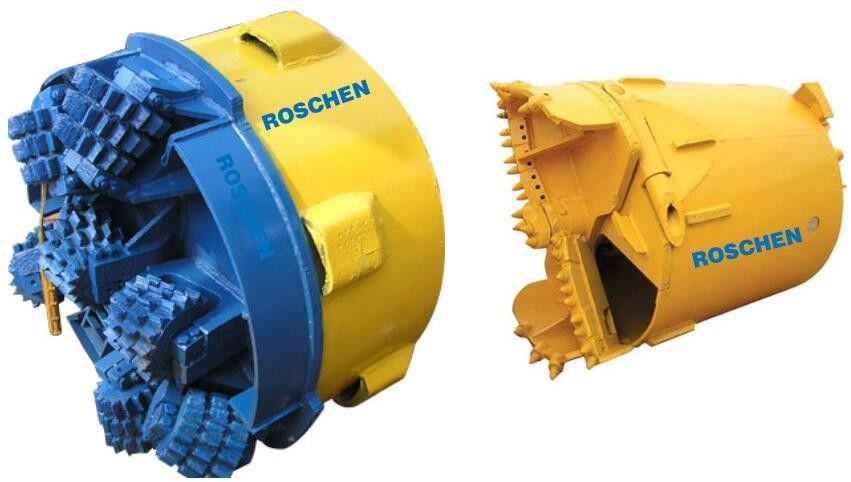

Roller Bits Core Barrel Rock Drilling Bucket Pile Tool Drilling Bucket
Product Induction
Kelly Box Standards
1. Kelly Box should be welded fabricated with the plate thickness of 30mm.
2. The Kelly box size shall be 200X200 Sqmm /150X150 Sq mm/130X130 Sq mm or suitable to Piling Rig.
3. The Kelly box shall be of full length size for proper alignment of holes and optimum power transmission capacity. The total inside clearance for Kelly box square shall be +5mm. The Holes of Kelly box shall be welded collar.
4. The Kelly box will be manufactured with signed copy of drawing from customer side.
Cutting Edge Standards
The cutting edges/ diameter shall be 30mm--40 mm less than the Pile/Casing Diameter(Inner Dia). This shall provide a 30mm--40 mm total clearance i.e. 15mm--20 mm on each side. This shall be applicable to each Piling Tools manufactured.
Please refer to the below
| Normal Size of Tool | Outer Dia of Shell Diameter | Cutting Edge Diameter |
| (Casing Inner Diameter) | (Auger flight Diameter) | (Teeth to Teeth Distance) |
| 900 mm | 820 mm-840 mm | 860 mm-870 mm |
| 1200 mm | 1120 mm-1140 mm | 1160 mm-1170 mm |
Specification:
| Round Shank Chisel Teeth Core Barrel | |
| Size | 520mm-2000mm |
| Application | Upto strong rock of 100Mpa suitable for cutting through fissured rock |
| Features | Kelly Box size |
| 130, 150, 200mm | |
| Cutting ring with raggered arrangement of round shank chisels. | |
| Chisel holders are welded to the base body. | |
| The round shank chisels can be easily replaced when using suitable tools | |
| Suitable for Rotary Drilling Rig | Bauer, Sany, Xcmg, Soilmec, Mait, IMT... |
More models of excavator bucket can be supplied
| BRANDS | MACHINE MODEL |
| KOMAT** | PC200-7-8/PC220-7-8/PC240/PC270/PC300/PC360-7 |
| HYUN-DAI | R210-7,R230,R225,R205,R120,R130,R160,R290,R330 |
| KOBE*** | SK210,SK220,SK380,SK310,SK330,SK450,SK230,SK260 |
| HI-TA-CHI | ZX120, ZX160,ZX200-1, ZX210, ZX230, ZX230-5; EX120, EX150,EX160-1,EX200-2,EX210-5,EX220-6,EX230,EX240,EX260,270,EX300-1 |
| TAKEUCHI | TB180FR, TB153FR, TB014, TB016, TB108, TB175C, TB180, TB1140, TB160, TB153FR, TB216, TB285C |
| SU-MI-TO-MO | SH200A2, SH200A3, SH55,SH60,SH75,SH90,SH100,SH120-1 |
| DOOS** | DH215/DH220/ DH225/DH260/ DH280/ DH300/ DH370/DH250 |
| VOLV* | EC140/EC210/ EC240/ EC290/EC320/EC330/EC360B/EC380/EC420 |
| KUBO** | KX135,KX155,KX161,KX163,KX165,KX185,KX136,KX41,KX04 |
Features:
Factory Direct Construction Parts Rotary Rig Drilling bucket With Bullet Teeth
1. Built-in ventilation pipe;
2. Cast pilot with rock drilling bits , arc guide plate teeth arrangement, double unlocking system;
3. Staggered arrangement of rock drilling bits;
4. Applicable layers: gravel, pebble, highly or medium weathered rock.
Quality Control
A good production project starts from supply for raw material; the skills and the human resources are the “treasure” of our company. The Unicorn Drill begins to develop a precise structure, a strong aptitude for technological innovation, the enhancement of human capabilities, upgrading and international. The team today is a very dynamic group, consolidated in the wide range of products and constantly looking for new solutions to the increasingly complex challenges faced by civil engineering worldwide.
