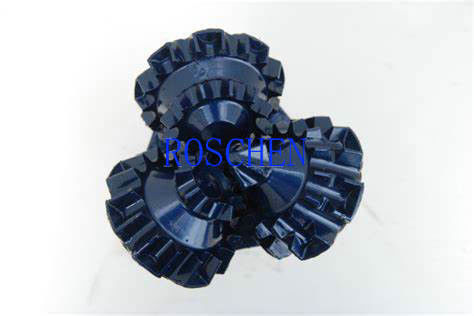

High Drilling Efficiency Tri cone Drill Bit / 17 1/2 TCI Tricone Bit
Negotiable
MOQ
Negotiable
Price
High Drilling Efficiency Tri cone Drill Bit / 17 1/2 TCI Tricone Bit
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: ROSCHEN
Certification: ISO9001
Model Number: Tri Cone Drill Bit
High Light:

milled tooth drill bit

,

17 1/2 TCI tricone bit

,

17 1/2 tricone bit

Payment & Shipping Terms
Packaging Details: wooden, carton packaging
Delivery Time: 5~15days
Supply Ability: 1000 pcs per month
Specifications
Type: Milling Tooth Bit
Material: Tungsten Carbide
Use: Coal Mining,stones
Machine Type: Drilling Equipment
Processing Type: Forging,Casting
Product Name: Tri Cone Drill Bit
Product Description



High Drilling Efficiency Tri cone Drill Bit / 17 1/2 TCI Tricone Bit



17 1/2 Tri Cone Drill Bit Discription



PRODUCT SPECIFICATIONS
product name 17 1/2 TCI tricone bit
size 17 1/2 inch,444.5mm
tooth type mill tooth
connection 7 5/8" API Reg
bearing metal sealed journal bearing
Nozzle three jet nozzles
application water well,oil well,HDD,exploration,etc
weight 250kg
certificate API7-1,SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATION
very soft with low compressive strength and high drillability,such as soft shale,clay and salt bed,etc.



Tri Cone Drill Bit Feature



Cutting Structure

The wear-resistance of the teeth is enhanced with premium tungsten carbide hard facing on the tooth surfaces for the steel tooth bit. The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit

Gauge Structure

Multiple gague protection with gauge trimmers on the heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hard facing on the shirttail increases gauge holding capacity and bearing life.

Bearing Structure

High precision journal bearing with two thrust faces, Balls lock the cone. Hard faced head bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure of the bearing are improved. and suitable for high rotary speed

Seal and Lubrication

The advanced metal seal package consists of two metal seals and two elastic energizers. Compressed energizers ensure good contact being kept on two sealing surfaces of metal rings by elastic force, and achieves the bearing seal. In the drilling, metal seals are relatively dynamic, and the energizers are static. This will improve the reliability and durability of bearing seal. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.

Tri Cone Drill Bit Application

It is suitable for down hole motor and high speed applications





Main features

  1. The wear-resistance of teeth is enhanced with premium tungsten carbide hard facing on the tooth surfaces for steel tooth bit.
  2. High precision roller bearing with two thrust faces. Ball lock the cone. Thrust faces hard-face with wear resistant alloy. Abrasion resistance and seizure resistance of the bearing are improved.
  3. Multiple gauge protection with gauge trimmers on the heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hard-facing on the shirttail increases gauge holding capability and bearing life.



Tri Cone Drill Bit Specification



Tricone bits , hole openers can be used to explore /drill gas/oil/geothermal/water wells. 3 7/8”~26” are available for Tricone bits. 4 1/2”~17 1/2” are available for Diamond PDC bits.



The TCI Tricone Bit ranges in size from 3.875” (88.9mm) to 28” (711.2mm)
The Mill Tooth TriCone Bit ranges in size from 5” (127mm to 32” (812.8mm)

RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code 117 127 137
WOB(KN/mm) 0.30~0.90 0.30~0.90 0.35~0.90
RPM(r/min) 300~80 300~80 300~80





High Drilling Efficiency Tri cone Drill Bit / 17 1/2 TCI Tricone Bit 0
