Three Cone Mill Tooth Tricone Bit For Geological Exploration Areas

1 set
MOQ
Negotiate
Price
Three Cone Mill Tooth Tricone Bit For Geological Exploration Areas
Features Gallery Product Description Request A Quote
Features
Specifications
Certification: API
Name: Mill Tooth Tricone Bit
Type: Drill Bit
Material: Tungsten Carbide,High Manganese Steel
Use: Well Drilling
Machine Type: Drilling Tool
Processing Type: Forging
Color: Customized
High Light:

milled tooth drill bit

,

tricone rock bit

,

12 1/4 Tricone Bit

Basic Infomation
Place of Origin: CHINA
Brand Name: ROSCHEN
Model Number: 12 1/4
Payment & Shipping Terms
Packaging Details: Poly Wooden Box
Delivery Time: 5~15days
Supply Ability: 100000 pcs
Product Description

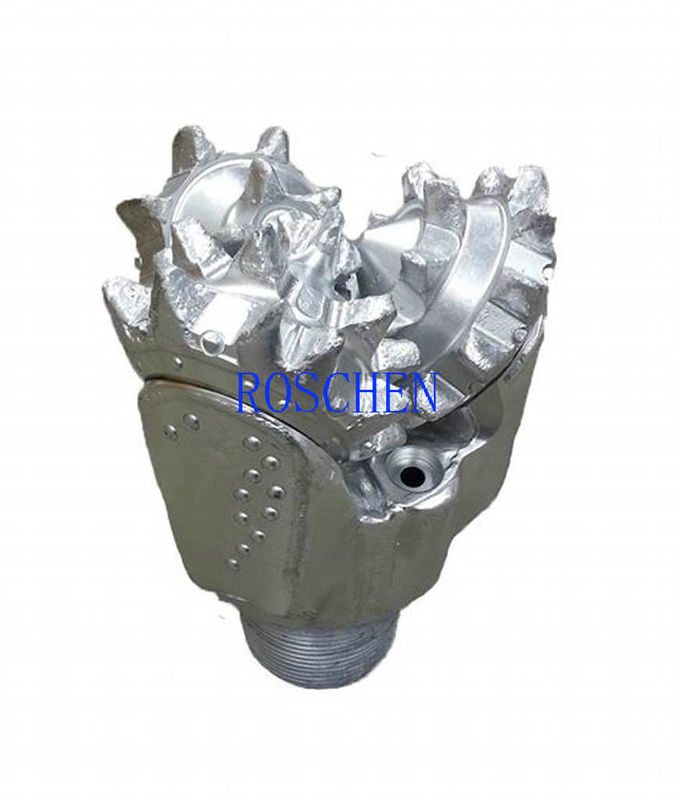

Three Cone Mill Tooth Tricone Bit For Geological Exploration Areas


Mill Tooth Tricone Bit Description

(1) Cutting Structure of this series tricone rock bit:

The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit.The wear-resistance of teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for steel tooth bit.


(2) Gauge Structure of this series tricone rock bit :

Multiple gauge protection with gauge trimmers on heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.


(3) Bearing Structure of this series tricone rock bit :

High precision bearing with two thrust faces. Balls lock the cone.Hardface heard bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved and suitable for high rotary speed.


(4) Seal and Lubrication of this series tricone rock bit :

The advanced metal seal package consists of two metal seats and two elastic energizers. Compressed energizers ensure good contact being kept on two sealing surfaces of metal rings by elastic force, and achieve the bearing seal. In the drilling, metal seal are relatively dynamic, and the energizers are static. This will improve the reliability and durability of bearing seal. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.


Mill Tooth Tricone Bit Features


(1) IADC code: 417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535, 637, 642, 737, 742, 745, 835, 837, 842.
(2) Sizes: From 6 1/4" to 12 1/4"
(3) Bearing type: sealed bearing and non-sealed bearing

(4) Formation or layer: soft, medium soft, hard, medium hard, very hard formation



Mill Tooth Tricone Bit IADC CODE:



IADC Code WOB RPM Application
(KN/mm) (r/min)
437/447/435 0.35-0.9 240-70 very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk, gypsum, salt, soft limestone
517/527/515 0.35-1.0 220-60 soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone
537/547/535 0.45-1.0 220-50 soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds
617/615 0.45-1.1 200-50 medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite
637/635 0.5-1.1 180-40 hard formation with high compressive strength, like limestone, sandstone, dolomite, hard gypsum, marble
Note: Above limitts of WOB and RRPM should not be used simultaneously



Thread Pin:
Bit Diameter API PIN
(inch) (mm)
6 1/4"~6 3/4" 159~171 3 1/2"
7 1/2"~9 1/2" 190.5~241 4 1/2"
9 5/8"~12 1/4" 245~311 6 5/8"



How to read IADC Code:

Three Cone Mill Tooth Tricone Bit For Geological Exploration Areas 0



Our advantage



1. deep and fast penetration
2. Long using life
3. first quality level product with reasonable price
4. best service and fast delivery.

5. many years manufacturing experiance.

6. can make tricon drill bit according to customer's detail requirement

7. We bought our own land and built our own factory;

8. In same quality, our price is best; in same price , our quality is best.


Three Cone Mill Tooth Tricone Bit For Geological Exploration Areas 1
