Tricone Drill Bit
>
|
| Place of Origin | China |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | 3 7/8"~26" |

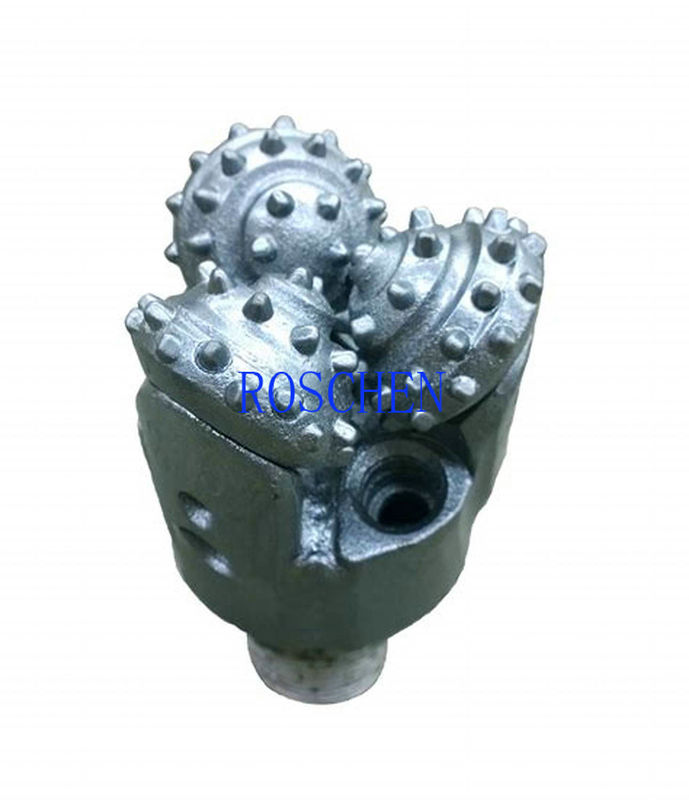

Roller Cone Drill Bit Wear Resistance Long Lasting Cone Drill Bits
Cone Drill Bits advantages :
1. High temperature heat treatment forged alloy steel .
2. Carbide teeth with high strength and toughness work more efficiently
3. Tooth palm lip hard welding surface with hard alloy ,Effectively prevent the drill bit wear and tear work
4. Head OD protection to effectively reduce head wear in abrasive formation and extend bit work
5. Directional jet enlarges lateral flow area and helpful bottom hole cleaning and increase of ROP
6. Lubricating system protection of bearing and seal system of bit extend bit work life
7. API REG Connection
8. Rubber sealed and metal sealed bearing
All rubber compensator is used which can limit pressure differential and prevent drilling fluid from entering the lubrication system and this provides the bearing system with good assurance of lubrication.
Cone Drill Bits sizes reference:
| TRICONE DRILL BITS - STANDARD CONNECTION SIZES * | |
| SIZE | STANDARD PIN CONNECTION |
| 2 1/2" to 2 3/4" inclusive | A - AW Rod |
| 2 7/8" to 3 3/8" inclusive | N4 Rod |
| 3 1/2" to 4 1/2" inclusive | 2 3/8" API |
| 4 5/8" to 5" inclusive | 2 7/8" API |
| 5 1/8" to 7 3/8" inclusive | 3 1/2" API |
| 7 1/2" to 9 3/8" inclusive | 4 1/2" API |
| 9 1/2" to 14 3/8" inclusive | 6 5/8" API |
| 14 1/2" to 18 1/2" inclusive | 6 5/8" API or 7 5/8" API |
| 18 5/8" to 26" inclusive | 7 5/8" API or 8 5/8" API |
| 27" and larger | 8 5/8" API |
| *Tricone bits are available with alternative connection sizes on request. | |
FAQ
1. How to get an exact quotation?
Answer: Please send us detailed information as below:
-Tricone bits(Diameter, IADC code)
-PDC bits(Matrix or Steel body, blades quantity, cutter size, etc)
-Hole opener(Diameter, size of pilot hole, hardness of rocks, thread connection of your drill pipe, etc.)
-Roller cutters(Diameter of cones, model number, etc.)
-Core barrel(Diameter, quantity of cutters, connection, etc.)
2. What is the quality control for your products?
Answer: All of our production are in lines of API rules and ISO9001:2015 strictly, from signing contract , to raw materials, to each production processes, to product finish, to after-sale service, each processes and sections are in accordant with standard.
3. About lead time,payment terms, delivery ?
Answer: We always have regular models available in stock, prompt delivery is one of our advantages. Mass production depends on quantity of order.
We accept all regular payment terms including L/C, T/T, etc.
