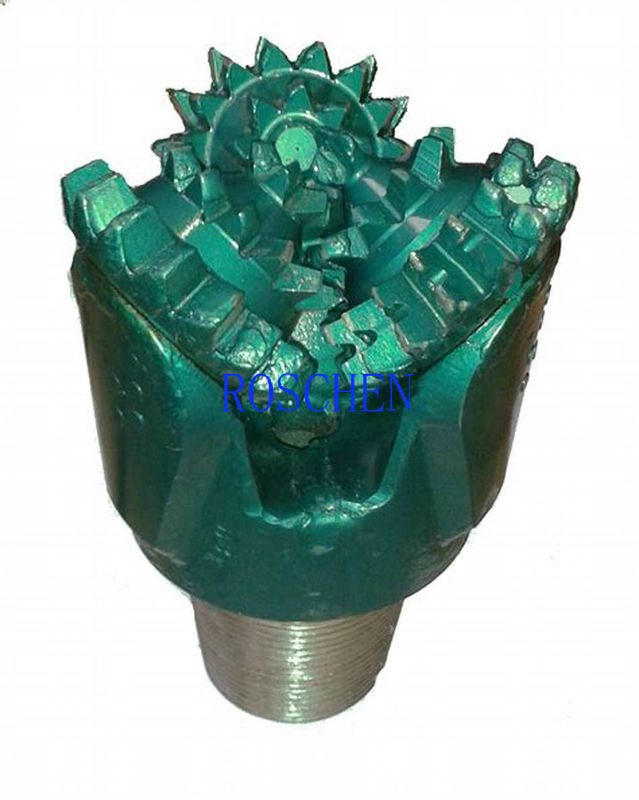

Custom Made Size Tricone Drill Bit Sealed Bearing Oil Well Drilling
1 set
MOQ
negotiate
Price
Custom Made Size Tricone Drill Bit Sealed Bearing Oil Well Drilling
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: ROSCHEN
Certification: ISO9001
Model Number: 3 7/8"~26"
High Light:

milled tooth drill bit

,

2 7/8" Tricone Drill Bit

,

3 1/2" tricone bit

Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 5~15days
Specifications
Type: Tricone Drill Bit
Material: Tungsten Carbide Material
Size: Custom Made Size
Connect Thread: 2 3/8", 2 7/8", 3 1/2", 4 1/2", 6 5/8"
Sealing: Open, Rubber Sealing, Or Metel Sealed
Appilication: Oil Well Drilling
Product Description



Customized Tricone Drill Bit Sealed Bearing Oil Well Drilling



Tricone Drill Bit Advantage



1) There is a Tricone suitable for any rock formation

2) Tricone bit is versatile and can handle changing formations

3) Tri Cones are reasonably priced, long lasting and have an efficient drilling rate

4) Tricone is that the roller cones have high end sealed bearings; extremely high quality tungsten carbide and diamond gauge protection throughout the drill bit as well as skirt tail hard facing and optimized hydraulics. These roller cone drill bits are designed to go to extreme depths in extreme conditions and in situations where they cannot fail.



Tricone Drill Bit Discription



The Tricone Drill Bit is the most versatile drill bit on the market. It is the go to drill bit in most styles of drilling. ROSCHEN Tools always has the right Tri Cone Drill Bit for you Whether you are drilling a water well or an oil well.

Depending on your application, we can provide you with new, re-run or premium oil field quality Tricone bits. The difference between a premium oil field Tricone bit and non-premium oil well quality Tricone is that the roller cones have high end sealed bearings; extremely high quality tungsten carbide and diamond gauge protection throughout the drill bit as well as skirt tail hard facing and optimized hydraulics. These roller cone drill bits are designed to go to extreme depths in extreme conditions and in situations where they cannot fail.



Tricone Drill Bit Specification



The TCI Tricone Bit ranges in size from 3.875” (88.9mm) to 28” (711.2mm)
The Mill Tooth TriCone Bit ranges in size from 5” (127mm to 32” (812.8mm)



Elaborate Technical Parameters for Tricone Bit
IADC code IADC537
Bit diameter 17-1/2(in) ; 444.5(mm)
Tooth type Wide teeth, chisel insert
Standard API 7-1
Connection thread 7-5/8 API. REG
Material Tungsten carbide insert, inlaid friction-reducing alloy
Rotary speed 140-60 r/min
Bit pressure 0.35~1.0 KN/mm
Lubrication and seal Adopt advanced grease
Pressure control system The pressure compensator
Thrust faces Hard faced with wear resistant alloy
Jet nozzles Three nozzles, Center nozzle can be customized
Multiple gauge protection Yes
Gauge protection On the Shirttail: More carbide inserts increase gauge holding capability and bearing life.
Bearing

rubber sealed journal bearing;

Metal-face sealed journal bearing

Industrial standard of China SY/T5164
Quality management system ISO 9001-2008
Bit dimension(mm) 46mm×53mm×65
Bit weight(N/W,G/W)kg 255

Custom Made Size Tricone Drill Bit Sealed Bearing Oil Well Drilling 0



About us



Our extensive product line includes DTH and reverse circulation hammers and bits, tricone bits, adaptor subs, air perforators, well casing, drill steel, casing alignment clamps and torch guides, diverter boxes, shock absorbers, retract hammers, thread lubes, oilers, as well as a comprehensive line of Matex environmentally friendly foamers, rock drill oils, polymers, and more.



When ordering a bit the IADC bit classification system is a very useful tool and allows ROSCHEN to specify a bit that out performs your expectations.

We owes the most convenient transportation no matter by sea, by air or by land. it's specialized in producing and supplying various of TCI/MT Tricone Rock Bits, Diamond PDC Bits with general, good, high quality three classes.
