Tricone Drill Bit
>
|
| Place of Origin | China |
| Brand Name | ROSCHEN |
| Certification | ISO9001 |
| Model Number | 14 3/4" |

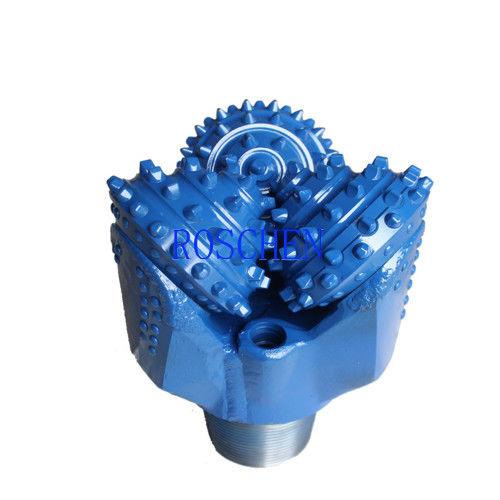

Soft Rock Drilling Tricone Drill Bit IADC 127 Low Compressive Strength
14 3/4" Tricone Drill Bit Parameters
| Cone Size | 14 3/4" |
| Bearing Type | Elastomer Sealed Bearing |
| Tooth Type | Steel /Milled |
| Circulation Type | Mud Fluid |
| Thread Connection | 7 5/8 Reg Pin |
| Gauge Protection | Available |
| Shirttail Protection | Available |
| RPM (r/min) | 180~60 |
| WOB(KN) | 112~318 |
| Application | Soft formation with low compressive strength ,and high drill ability, such as mudstone, gypsum, salt, soft limestone, etc. |
Tricone Drill Bit features
1. Cutting Structure of this type sealed and non-sealed TCI tricone bits :
The wear-resistance of teeth is enhanced with premium tungsten carbide hard facing on the tooth surfaces for steel tooth bit.
2. Gauge Structure of this type TCI tricone rock bits :
Multiple gauge protection with gauge trimmers on the heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hard-facing on the shirttail increases gauge holding capability and bearing life.
3. Bearing Structure of this type TCI tricone rock bits :
High precision roller bearing with two thrust faces. Ball lock the cone. Thrust faces hard-face with wear resistant alloy. Abrasion resistance and seizure resistance of the bearing are improved.
Tricone Drill Bit Specification
Tricone bits , hole openers can be used to explore /drill gas/oil/geothermal/water wells. 3 7/8”~26” are available for Tricone bits. 4 1/2”~17 1/2” are available for Diamond PDC bits.
The TCI Tricone Bit ranges in size from 3.875” (88.9mm) to 28” (711.2mm)
The Mill Tooth TriCone Bit ranges in size from 5” (127mm to 32” (812.8mm)
Tricone Drill Bit Application
High Compressive strength, Hard formation. Such as: Granite, limestone, Shale, granit, Flint
Compressive strength 43000-52000Psi
