Tricone Drill Bit
>
|
| Place of Origin | China |
| Brand Name | ROSCHEN |
| Certification | ISO9001 |
| Model Number | 3 7/8"~26" |

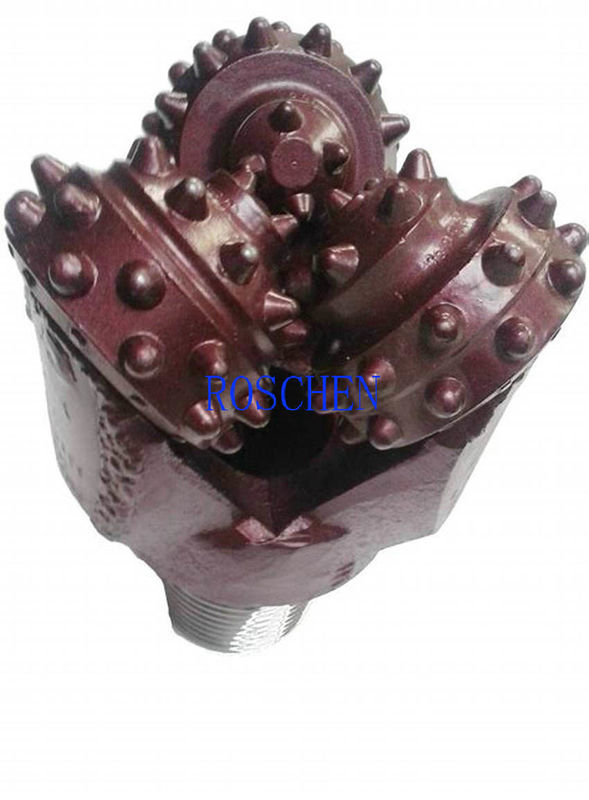

IADC 127 Milled Tooth Drill Bit / Tricone Rock Roller Bit Rubber Sealing
Milled Tooth Drill Bit Discription
The Milled Tooth Drill Bit is the most versatile drill bit on the market. It is the go to drill bit in most styles of drilling. ROSCHEN Tools always has the right Tri Cone Drill Bit for you Whether you are drilling a water well or an oil well.
ROSCHEN offers new steel tooth and tungsten carbide insert tri cone bit in sizes from 3 1/2" – 26", with open or sealed bearings, regular or jet circulation, and a wide range of additional custom features for ideal performance in any formation. Tri cone bit can be customized to optimize penetration rates and bit life in particular formations and under specific operating weights and rotation speeds.
Steel teeth or carbide inserts come in a variety of shapes, sizes, and grades of tungsten carbides to address specific drilling conditions. TCI BITS offer increased durability over steel tooth bits but also carry a higher cost.
Milled Tooth Drill Bit Parameters
| PRODUCT SPECIFICATIONS | |
| product name | 24 inch mill tooth tricone bit |
| size | 24 inch,609.6mm |
| tooth type | mill tooth |
| connection | 7 5/8" API Reg |
| bearing | elastomer rubber sealed journal bearing |
| Nozzle | three jet nozzles |
| application | water well,oil well,HDD,exploration,etc |
| weight | 720kg |
| certificate | API7-1,SY/T5164,ISO9001:2008 |
Milled Tooth Drill Bit Feature
1. There is a Tri Cone suitable for any rock formation
2. Tricone bit is versatile and can handle changing formations
3. Tri Cones are reasonably priced, long lasting and have an efficient drilling rate
| RECOMMENDED DRILLING PARAMETERS FOR APPLICATION | ||||||
| Type&IADC code | 116,117,115 | 126,127 | 136,137 | 216,217 | 317 | 337 |
| WOB(KN/mm) | 0.35~0.90 | 0.35~1.00 | 0.35~1.05 | 0.35~1.2 | 0.7~1.30 | 0.80~1.40 |
| RPM(r/min) | 150~80 | 150~70 | 120~60 | 90~50 | 80~45 | 75~45 |
Medium hard with relatively higher compressive strength and hard stringers, such as hard shale, sandstone and limestone, etc.
