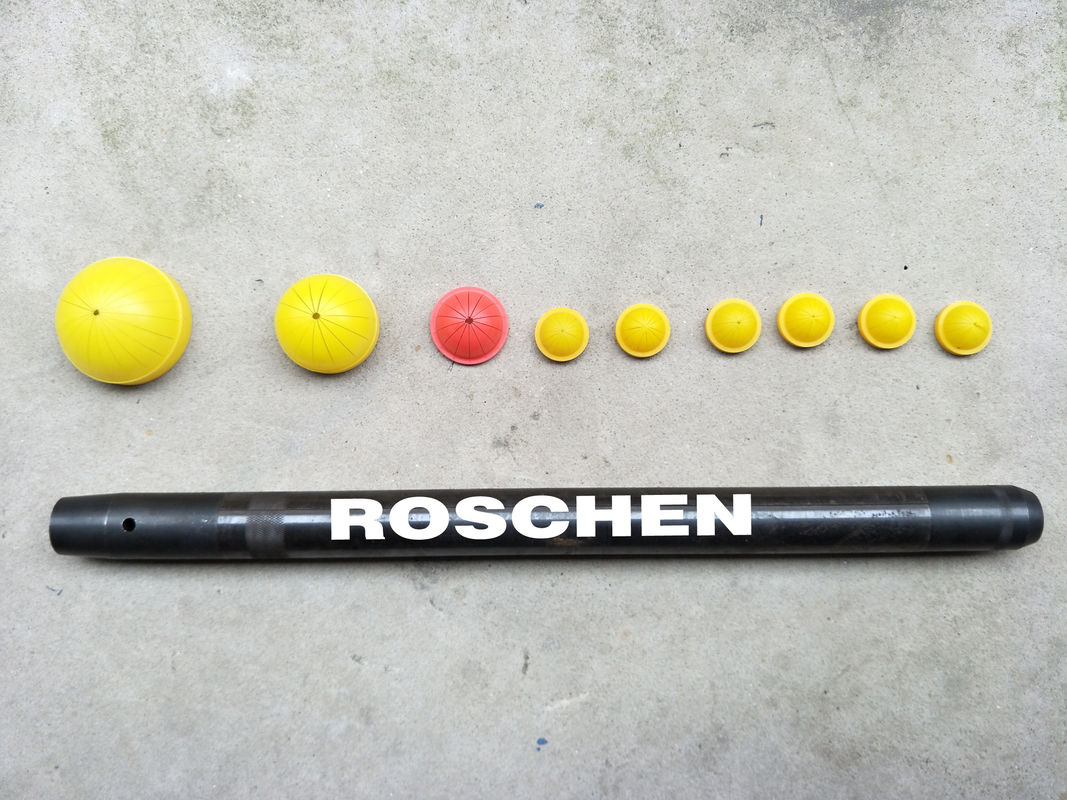

SPT Split Tube Complete For Standard Penetration Test Soil Sampling

SPT split tube Complete For Standard Penetration Test Soil Sampling

Standard Penetration Test

Standard Penetration Test

The standard penetration test (SPT) is an in-situ dynamic penetration test designed to provide information on the geotechnical engineering properties of soil. This test is the most frequently used subsurface exploration drilling test performed worldwide. The test procedure is described in ISO 22476-3, ASTM D1586 and Australian Standards AS 1289.6.3.1. The test provides samples for identification purposes and provides a measure of penetration resistance which can be used for geotechnical design purposes. Many local and widely published international correlations which relate blow count, or N-value, to the engineering properties of soils are available for geotechnical engineering purposes.

Standard Penetration Test Tools.
1. Drilling Rig.

2. Split spoon (tube).

3. Drop hammer 65 kg (140 lbs ).

4. Driving head (anvil).
