Hollow Stem Cutter Head Hollow Stem Flight Augers CFA System For Piling

5 pcs
MOQ
Negotiate
Price
Hollow Stem Cutter Head Hollow Stem Flight Augers CFA System For Piling
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

CFA drilling auger

,

20in Hollow Stem Flight Augers

,

20in Hollow Stem Cutter Head

Basic Infomation
Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: ISO
Model Number: 200 ~ 1200 mm
Payment & Shipping Terms
Packaging Details: steel bundle
Supply Ability: 1000000 pcs
Product Description

Hollow Stem Cutter Head Hollow stem flight Augers CFA System for Piling







Hollow Stem Cutter Head Hollow stem flight Augers CFA System for Piling


Hollow stem flight Augers Piles Diameters 20 inch for install casted piles with the CFA system



We're interested on purchase one of your Hollow-stem flight Augers and a Hollow Stem Cutter Head. Both for install casted piles with the CFA system.



The project will have the following specs:

Piles Depth: 28 m (92 ft)
Piles Diameters: 40 up to 50 cm (15-3/4 in up to 20 in)
For use on: Soft ground (Sands & Clays)





CONTINUOUS FLIGHT AUGER



CFA system


CONTINUOUS FLIGHT AUGER


Technologies

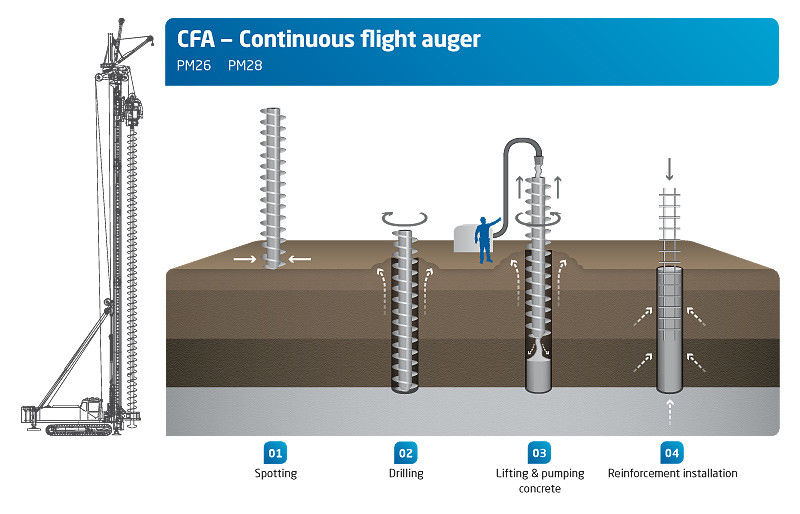

CFA (Continuous Flight Auger) technology joins the advantages of fixed piles with the versatility of application of drilled piles. Continuous Flight Auger piles are performed with a partial soil removal, thus with a lateral soil compression that increases the final load bearing capacity. The construction procedure consists of boring the soil by means of a continuous flight auger assembled on a central hollow pipe. On completion of boring operation, auger is extracted while concrete is poured throughout the internal hollow pipe. When required, piles may be reinforced for their entire length with reinforcement cages inserted in the still wet concrete.





Advantages:



• The method can be utilised in a wide range of cohesive and cohesionless soils, with or without the presence of a water-bearing stratum and without bentonite fluid as wall support.
• The technology does not produce shocks, vibrations, noise, allowing to work in urban areas.
• The minimum required equipment allows to minimise the job site installation plant and to operate in very restricted areas.
• High industrial production rates can be easily reached.





Technical data

• Pile diameter: 400 to 1400 mm
• Depth: 15 to 33 m depending on soil diameter and consistency
