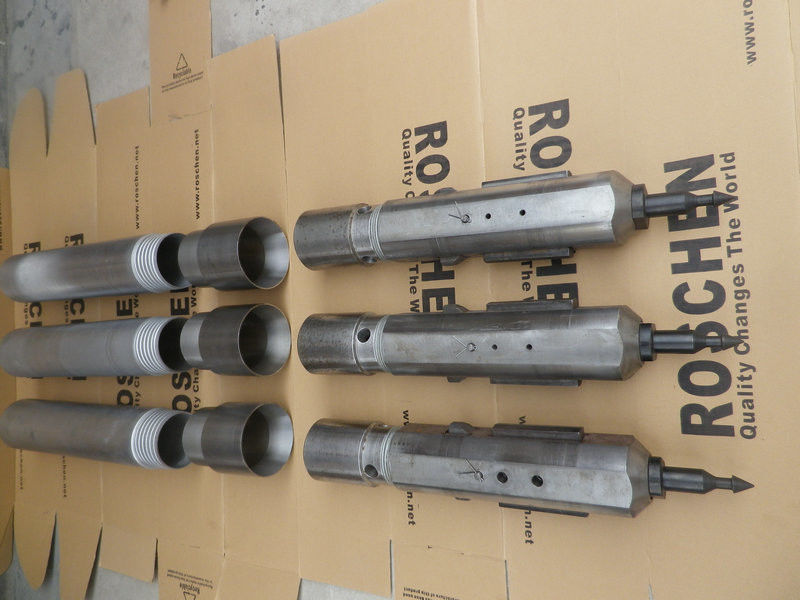

Wireline Casing Advancer For Soil Sampling And Overburden Coring
  • Wireline Casing Advancer For Soil Sampling And Overburden Coring
  • Wireline Casing Advancer For Soil Sampling And Overburden Coring

Wireline Casing Advancer For Soil Sampling And Overburden Coring

Place of Origin Germany
Brand Name ROSCHEN
Certification ISO, API
Model Number BQ, NQ, HQ, PQ, SQ, BW, NW, HWT, PWT, SW, UW, ZW
Product Details
Product Name:
Casing Advancer
Machine Type:
Drilling Tool
Processing Type:
Forging
Color:
Customized
Size:
Available In All DCDMA Sizes
Condition:
New
High Light:

rock drilling tools

,

casing advance drilling

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
N/A
Packaging Details
wooden packing box
Supply Ability
100 sets stocks
Product Description

Wireline Casing Advancer For Soil Sampling And Overburden Coring​


Casing Advancer Details:

Roschen Wireline Casing Advancer has been designed to allow drilling and casing to be carried out at the same time as one integral operation.
This feature eliminates the need to drill the large diameter hole with a Rock Bit, pull the drill rod string and Rock Bit from the hole and then ream the casing back into the hole.
The integral operation makes the Roschen Casing Advancer eminently suitable for drilling through overburden or sands and gravels.
It is also particularly suitable for Landfill Drilling applications.



Casing Advancer Functions:


1. Roschen provides a full line of wireline casing advancers for soil sampling and overburden coring in conjunction with casing. These can also be used for casing through difficult overburden or formations.
2. Provides a positive latch for a one-step method of drilling through overburden and casing off to bedrock.


Casing Advancer Features:


1. Cases borehole as borehole advances.
2. Helps reduce drilling cost by saving rod and casing handling.
3. Can be used with Rock Bot or TC. Drag Bit.
4. Long Casing Shoe life as it is always reaming and never drilling alone.
5. Special flushing ports in the body ensure that the casing bit is adequately flushed.
6. Uses conventional Right Hand threaded Drill Rods and Casing.
7. Suitable for Air, Water or Mud Flush.
8. Manufactured from high quality materials.





Available specifications:


Casing Advancer / Wireline Casing Advancer
Specifications
BQ AW/AWL
HQ BW/NWL
NQ NW/HWL
PQ HW/HWT
BW PW/PWT
HWT SW/SWT
NW UW/UWT
PWT ZW/ZWT


Roschen Inc. is constantly striving to improve its products and must therefore, reserve the right to change designs, materials, specifications and price without notice.
