Dual Rotary Wellbore Casing , HWT BW NW Conductor Casing Drilling

Dual Rotary Wellbore Casing , HWT BW NW Conductor Casing Drilling

Wellbore Casing Details:

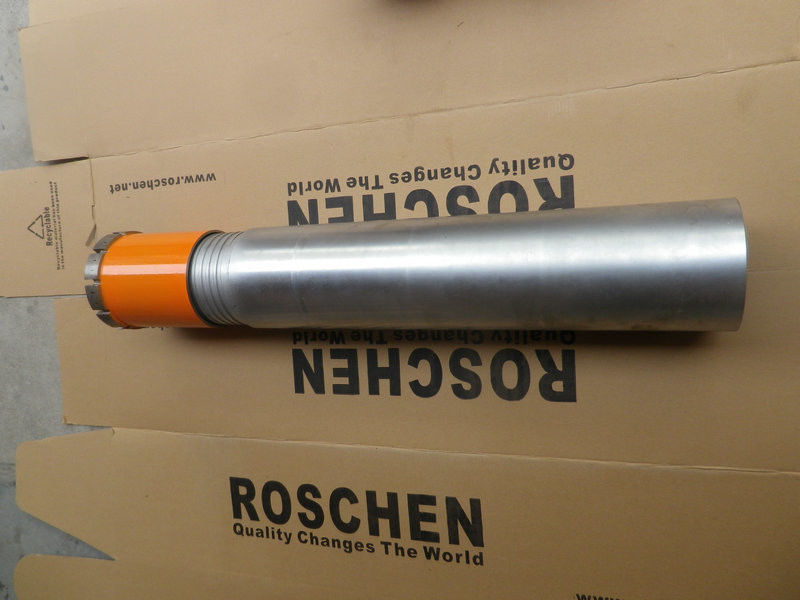

Roschen Wireline Casing Advancer has been designed to allow drilling and casing to be carried out at the same time as one integral operation.

This feature eliminates the need to drill the large diameter hole with a Rock Bit, pull the drill rod string and Rock Bit from the hole and then ream the casing back into the hole.

The integral operation makes the Roschen Casing Advancer eminently suitable for drilling through overburden or sands and gravels.

It is also particularly suitable for Landfill Drilling applications.

Wellbore Casing Functions:

1. Roschen provides a full line of wireline casing advancers for soil sampling and overburden coring in conjunction with casing. These can also be used for casing through difficult overburden or formations.
2. Provides a positive latch for a one-step method of drilling through overburden and casing off to bedrock.


Wellbore Casing Features:

1. Cases borehole as borehole advances.
2. Helps reduce drilling cost by saving rod and casing handling.
3. Can be used with Rock Bot or TC. Drag Bit.
4. Long Casing Shoe life as it is always reaming and never drilling alone.
5. Special flushing ports in the body ensure that the casing bit is adequately flushed.
6. Uses conventional Right Hand threaded Drill Rods and Casing.
7. Suitable for Air, Water or Mud Flush.
8. Manufactured from high quality materials.

Available specifications:
