Measuring Instrument Wireless MWD Product

1
MOQ
Measuring Instrument Wireless MWD Product
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Wireless MWD Instrument
Mode: RSYQ-48
Minmun Order: 1pcs
Brand: ROSCHEN
High Light:

MWD tapered drill rod

,

Wireless awj drill rod

Basic Infomation
Place of Origin: China
Brand Name: ROSCHEN
Certification: API
Model Number: RSYQ-48
Payment & Shipping Terms
Packaging Details: wooden Box
Product Description

Measuring instrument Wireless MWD Product



Wireless MWD Product Introduction RSYQ-48



MWD: abbreviation of "measurement while drilling". Wireless while drilling measuring instrument can measure in time during the drilling process, that is, under the condition of non-stop drilling, the mud pulse generator sends the data measured by the downhole probe to the ground, and after collection and processing by the computer system, real-time well bore parameters and formation parameters are obtained.



Feature of product

1. Mud pulse generator can be directly exchanged with instruments of QDT, GE and domestic MWD manufacturers, saving users' secondary investment.

2. The whole MWD system adopts low power consumption design, and a single battery can work for 300 hours.

3. The maintenance-free period reaches more than 800 hours, and the maintenance cost is one third of the traditional MWD.

4. The mud analysis signal is twice that of the traditional MWD, ensuring stable transmission at a longer distance.



Main Specifications

Directional probe
well deflection: ≤±0.1 °
Orientation: ≤±1.01.0 °
Tool face: ≤±0.50.5 °



Gamma Probe
Detection range : 0 — 50 API
measurement accuracy : ± 3API 0 - 150 API
±10API 150 - 500API
Maximum working temperature : 150 ℃
Instrument outer cylinder pressure : 100 MPa
Mud displacement : 10 -55 L/s
Mud viscosity: ≤140s. Funnel viscosity
Mud containing sand : <1﹪.
Mud density : ≤1.7 1.7 g/cm³ Cubic centimeter
Battery working time: 300 hrs(No gamma)
200 hrs( gamma)
battery voltage: 28V

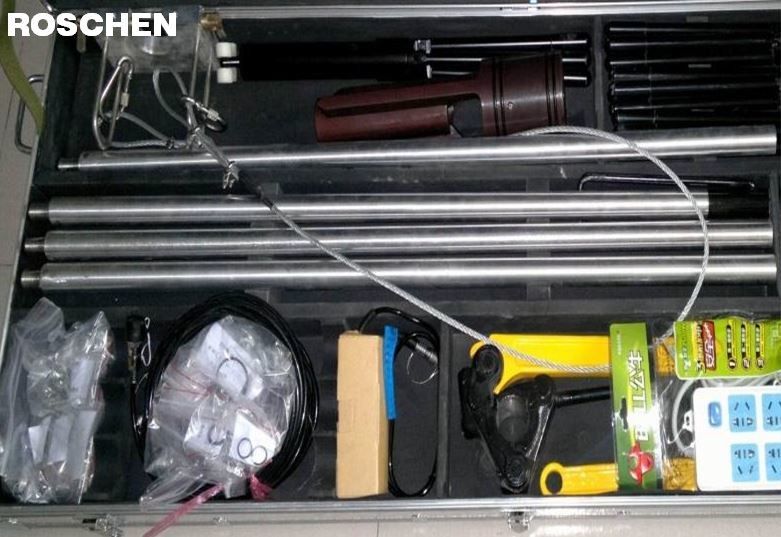

 Measuring Instrument Wireless MWD Product 0

The MWD can measure the dip angle, azimuth angle, tool face angle and the natural gamma intensity of the formation in the process of drilling, so as to provide well bore parameters and formation evaluation data in time for the drilling of highly deviated wells and horizontal wells. The biggest advantage of MWD is that it can "see" what is happening in the well in real time, and only delay a few minutes from the bottom hole measurement parameters to the ground receiving data, so it can improve the decision-making process. This instrument is necessary for improving drilling speed and ensuring drilling quality in directional and horizontal wells.
