Reverse Circulation Drill Pipe 4 1/2" Remet Thread For RE543 RE545 RC Hammer Bit
  • Reverse Circulation Drill Pipe 4 1/2
  • Reverse Circulation Drill Pipe 4 1/2
  • Reverse Circulation Drill Pipe 4 1/2

Reverse Circulation Drill Pipe 4 1/2" Remet Thread For RE543 RE545 RC Hammer Bit

Place of Origin China
Brand Name ROSCHEN
Certification ISO
Model Number 4 1/2 inch
Product Details
Type:
Reverse Circulation Drill Pipe
Machine Type:
RC Drilling Tools
Use:
Mining Drilling, Golden Drilling
Material:
High Carbon Steel
Length:
10 Feet Reverse Circulation Drill Pipe
Heat Treatment:
Whole Piece Heat Treatment
Size:
3 1/2 Inch RC Drill Pipe
Thread:
Remet, Metkze Thread RC Drill Rods
High Light:

RC heavy weight drill pipe

,

4 1/2'' rock drill rods

,

Friction welded RC Drill rods

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiate
Packaging Details
Bundle
Supply Ability
8000
Product Description

Reverse Circulation Drill Pipe 4 1/2'' Remet Thread For RC Hammer Bit



Selecting the right drill pipe



Drill pipes that are used in applications such as DTH/ DTHR/ DR basically comprise of a steel pipe with a pin at one end and a box on the other. The job of the drill pipe is to transmit rotational torque and thrust from the drill rig rotary head to down hole drilling tools.


According to different application, different diameters of drill tubes are needed, basically, smaller DTH hammers need smaller DTH drill tubes, vice versa. Usually we are offering 50mm, 60mm, 76mm, 89mm, 95mm, 102mm, 114mm, 127mm, 140mm .


The Roschen service guarantee



. Service that gives you the right equipment, the first time, and quickly.
. Well engineered, quality equipment designed for rugged drilling situations.
. Knowledgeable product support to help you increase productivity.
. Rapid and accessible sales support that makes ordering quick and easy.



You can be sure that at Roschen's, we have a clear understanding of the problems involved in maintaining reverse circulation drill rig’s at full production in remote and rugged sites. Our year’s of experience in the industry ensure that you get exactly the products and service you need to keep your RC drilling rigs at their peak wherever you are drilling.





Sizes 3", 3 ½", 4", 4 ½", 75mm and 78mm
Thread Types Remet, Metzke, RRE, Westrod, LW, TS and other threads





REVERSE CIRCULATION DRILL ROD SPECIFICATIONS
Thread Type Remet Remet Remet Metzke Metzke Matrix Matrix
Rod O.D. 3 1/2" 4" 4 1/2" 4" 4 1/2" 4" 4 1/2"
Outer Tube O.D. 88.9mm 101.7mm 114.3mm 101.7mm 114.3mm 101.7mm 114.3mm
Outer Tube I.D. 81.8mm 94.6mm 107.2mm 94.6mm 107.2mm 94.6mm 107.2mm
Outer Tube W.T. 5.3mm 7.1mm 7.1mm 7.1mm 7.1mm 7.1mm 7.1mm
Inner Tube O.D. 38.1mm 50.8mm 63.5mm 50.8mm 63.5mm 50.8mm 63.5mm
Inner Tube I.D. 32.6mm 45.3mm 58mm 45.3mm 58mm 45.3mm 58mm
Inner Tube W.T. 5.5mm 5.5mm 5.5mm 5.5mm 5.5mm 5.5mm 5.5mm
Spanner Flat 90mm 90mm 90mm 90mm 90mm 90mm 90mm
Weight 3.0m 75kg. 75kg. 95kg. 75kg. 95kg. 75kg. 95kg.
Weight 6.0m 120kg. 150kg. 168kg. 150kg. 168kg. 150kg. 168kg.

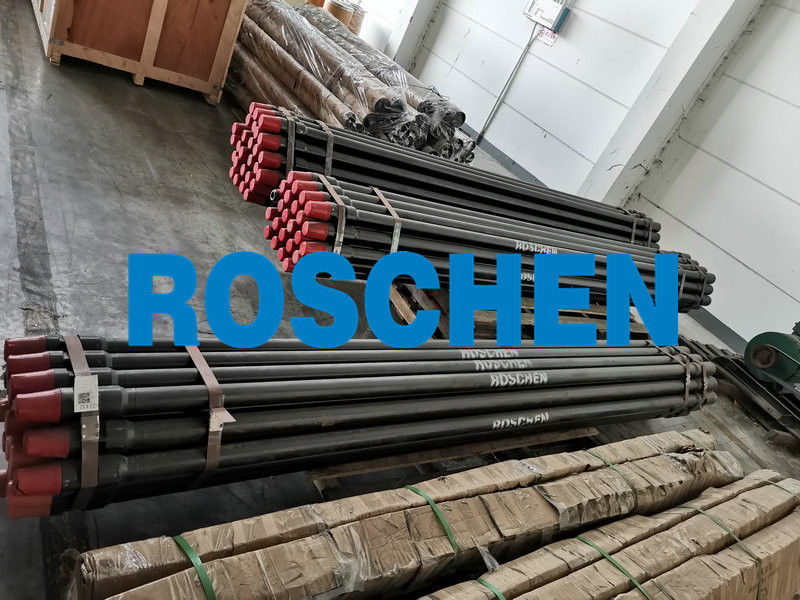

Pictures



Reverse Circulation Drill Pipe 4 1/2" Remet Thread For RE543 RE545 RC Hammer Bit 0

Reverse Circulation Drill Pipe 4 1/2" Remet Thread For RE543 RE545 RC Hammer Bit 1
