Roller Bits Core Rock Drilling Bucket Pile Tool Drilling Bucket Long Warranty
Hydraulic Rotary Drilling Tools
Roschen is Leading Manufacturer and Exporter of Hydraulic Rotary drilling tools in China, we manufacture Augers, Drilling Buckets, Core barrels, CFA ,Suitable to different Hydraulic Rotary drilling ris like Bauer, Soilmec, Casagrande, MAIT, IMT.

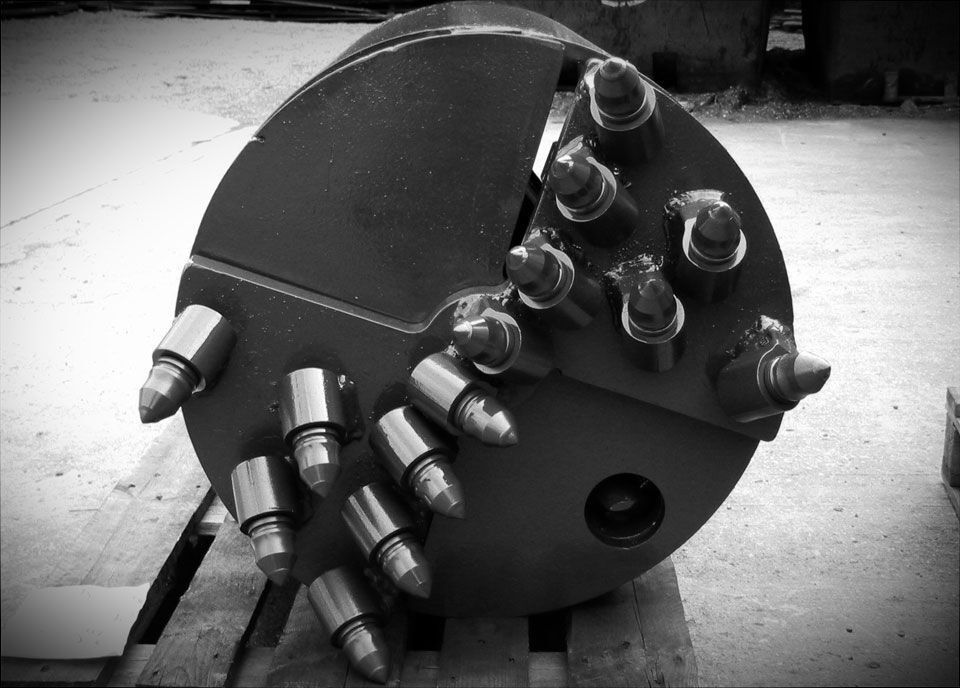

Drilling Buckets
Drilling buckets are used for drilling in cohesive and non-cohesive soil below groundwater level. Roschen’s drilling buckets are suitable for breaking and ripping hard soil up to medium hard rock. Roschen Drilling Buckets boast a heavy duty construction and come fitted with a Kelly Box (drive hub) to suit your machine. Its design allows for a manual hand-operated, or automatic opening mechanism to be fitted (for emptying)- For drill rigs fitted with striker plate.
. Heavy duty construction with provision for reamer bars
. Comes fitted with Kelly Box (drive hub) to suit your machine
. 7 digging configurations from single start bladed to rock, as well as combination tooth solutions
. Opening mechanism options include manual hand-operated or fully automatic (suits drill rigs with striker plate fitted)
. Base options include swivel and valve style
. Specialised buckets including rock and earth available
. Other tooth options available upon request
Features & Benefits
Digga soil and rock drilling buckets are made from the highest grade materials and boast many practical features. Hover your mouse over the features´ 'plus' symbol on the diagram below to reveal the respective benefits.
Drilling Bucket Specifications
| MODEL | 300MM | 400MM | 450MM | 500MM | 600MM |
| Cutting Diameter | 300mm (12”) | 400mm (16”) | 450mm (18”) | 500mm (20”) | 600mm (24”) |
| Overal Length | 1500mm (60”) | 1500mm (60”) | 1500mm (60”) | 1500mm (60”) | 1500mm (60”) |
| Base Type | Valve | Swivel / Valve | Swivel / Valve | Swivel / Valve | Swivel / Valve |
| Hub Options * | 5 | 5, 7 | 5, 7, 9 | 5, 7, 9 | 5, 7, 9 |
| Teeth | 19 / 25mm | 19 / 25mm | 19 / 25mm | 19 / 25mm | 19 / 25mm |
| Rotating Pick | Rotating Pick | Rotating Pick | Rotating Pick | Rotating Pick |
| MODEL | 750MM | 900MM | 1000MM | 1050MM |
| Cutting Diameter | 750mm (30”) | 900mm (36”) | 1000mm (40”) | 1050mm (42”) |
| Overal Length | 1500mm (60”) | 1500mm (60”) | 1500mm (60”) | 900mm (36”) |
| Base Type | Swivel / Valve | Swivel / Valve | Swivel / Valve | Swivel / Valve |
| Hub Options * | 5, 7, 9 | 5, 7, 9 | 5, 7, 9 | 5, 7, 9 |
| Teeth | 19 / 25mm | 19 / 25mm | 19 / 25mm | 19 / 25mm |
| Rotating Pick | Rotating Pick | Rotating Pick | Rotating Pick |
| MODEL | 1200MM | 1500MM | 1800MM | 2000MM |
| Cutting Diameter | 1200mm (48”) | 1500mm (60”) | 1800mm (72”) | 2000mm (80”) |
| Overal Length | 900mm (36”) | 900mm (36”) | 900mm (36”) | 900mm (36”) |
| Base Type | Swivel / Valve | Swivel / Valve | Swivel / Valve | Swivel / Valve |
| Hub Options * | 5, 7, 9 | 5, 7, 9 | 5, 7, 9 | 5, 7, 9 |
| Teeth | 19 / 25mm | 19 / 25mm | 19 / 25mm | 19 / 25mm |
| Rotating Pick | Rotating Pick | Rotating Pick | Rotating Pick |
(*) Hub Options: 5 - 75mm Square | 7 - 100mm Square | 9 - 130mm Square.
