Triple Tube Core Barrel for water well drilling, 3C 4C 6C 8C 10C Conventional core barrel
ROSCHEN manufactures and stocks a wide range of drilling equipment including Core Barrels from TT46 TT56 through to 3C 4C 6C 8C 8C 10 Triple tube Conventional core barrel. These include the most common sizes A, B, N, NMLC & H, 3C 4C 6C 8C 10C triple tube core barrel and come with all replacement and spare parts included.

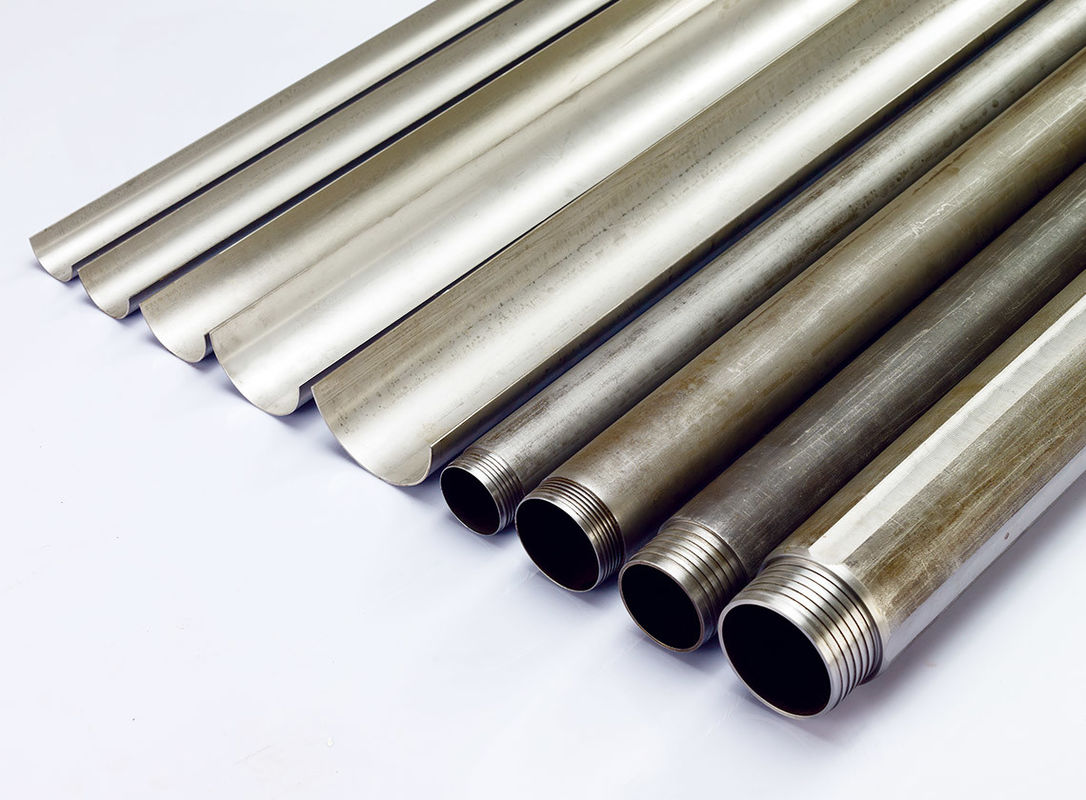

Triple Tube Core Barrels are normally supplied with stainless steel split inner tubes. Clear plastic tubing is available in AMLC BMLC NMLC HMLC 3C 4C 6C 8C 10 Triple tube core barrel size.
The ROSCHEN Triple Tube Conventional Core Barrel is designed to maximize core recovery in site investigation and core exploratory drilling programs, making it possible to obtain near 100% volumetric core recovery in the most undisturbed condition possible using rotary core drilling equipment. They have been used for exploration of dam, bridge and building sites as well as the development of mineral resources.
Size | Hole Diameter | Core Diameter | Length |
NMLC | 75.69mm | 51.94mm | 1.0m |
NMLC | 75.69mm | 51.94mm | 1.5m |
NMLC | 75.69mm | 51.94mm | 3.0m |
HMLC | 99.21mm | 63.50mm | 1.5m |
HMLC | 99.21mm | 63.50mm | 3.0m |
