Double Key Heavy Duty Hollow Stem Auger 3 3/4″ 95mm

5pcs
MOQ
negotiate
Price
Double Key Heavy Duty Hollow Stem Auger 3 3/4″ 95mm
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

double key HD hollow stem auger

,

hollow stem auger

,

heavy duty hollow stem auger

Basic Infomation
Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: ISO
Model Number: 3 3/4″ (95mm)
Payment & Shipping Terms
Packaging Details: Bundle, Wooden Box
Delivery Time: 5-8days
Supply Ability: 10000pcs/M
Product Description

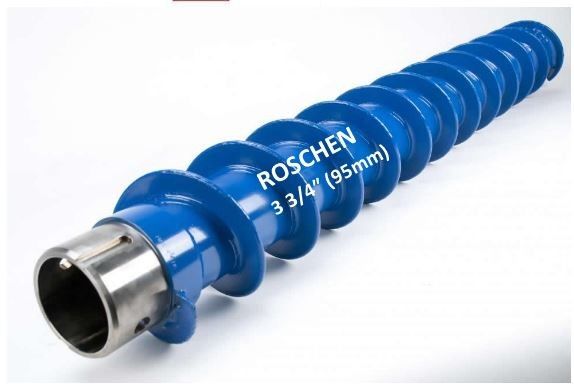

Double Key Heavy Duty Hollow Stem Auger 3 3/4″ (95mm)



All 3 3/4″ (95mm) Double Key Heavy Duty Hollow Stem Augers feature a continuous hard-faced flight design, 3/8″ (9.5mm) thick on the outer edge with a 6″ pitch.

The heavy duty, tapered tool joints are made from 4142 alloy steel and feature double-bolt connections.

Double Key Heavy Duty Hollow Stem Auger 3 3/4″ 95mm 0

  Description Lbs. Kg.
Auger Section
1 3 3/4″ (95mm) DK HD Hollow Stem Auger 3 3/4″ (95mm) I.D. x 7 1/8″ (181mm) O.D. x 5′ (1524mm) 84 38.1
2 3 3/4″ (95mm) DK HD Drive Cap with 1 5/8″ (41mm) Hex Pin 25 11.3
2 3 3/4″ (95mm) DK HD Drive Cap with 2″ (51mm) Hex Pin 28 12.7
3 #4 Nut & Bolt for Rod-to-Cap Adapter 0.9 0.4
4 3 5/8″ (92mm) Pilot Bit Connector (AW Box – 2 3/8″ API Reg. Box) 8 3.6
4 3 5/8″ (92mm) Pilot Bit Connector (AWJ Box – 2 3/8″ API Reg. Box) 11 5
4 3 5/8″ (92mm) Pilot Bit Connector (NW Box – 2 3/8″ API Reg. Box) 11 5
4 3 5/8″ (92mm) Pilot Bit Connector (NWJ Box – 2 3/8″ API Reg. Box) 12 5.4
5 Rod-to-Cap Adapter – AW Pin 3 1.4
5 Rod-to-Cap Adapter – AWJ Pin 3 1.4
5 Rod-to-Cap Adapter – NW Pin 7 3.2
5 Rod-to-Cap Adapter – NWJ Pin 6 2.7
6 AW Drill Rod – 5′ (1524mm) 21 9.5
6 AWJ Drill Rod – 5′ (1524mm) 23 10.4
6 NW Drill Rod – 5′ (1524mm) 31 14.1
6 NWJ Drill Rod – 5′ (1524mm) 35 15.9
Auger Repair Parts
1A 3 3/4″ (95mm) DK HD Pin Tool Joint 8 3.6
1B 3 3/4″ (95mm) DK HD Box Tool Joint 7 3.2
7 ALB3 Auger Lock Bolt 0.4 0.2
8 ABN3 Auger Bushing Nut 0.2 0.1
9 ADK2 Auger Drive Key 0.3 0.1
Auger Cutterheads and Pilot Bits
10 3 3/4″ (95mm) DK HD Blade Cutterhead – 8 1/2″ (216mm) O.D. 16 7.3
10 3 3/4″ (95mm) DK HD Spade Cutterhead – 8 1/2″ (216mm) O.D. 20 9.1
10 3 3/4″ (95mm) DK HD Blade/Bullet Cutterhead – 8 1/2″ (216mm) O.D. 20 9.1
10 3 3/4″ (95mm) DK HD Spade/Bullet Cutterhead – 8 1/2″ (216mm) O.D. 22 10
10 3 3/4″ (95mm) DK HD Bullet Cutterhead – 8 1/2″ (216mm) O.D. 22 10
10 3 3/4″ (95mm) DK HD 5-T Cutterhead – 8 1/2″ (216mm) O.D. 22 10
11 3 5/8″ (92mm) Apex Pilot Bit, 2 3/8″ API Reg. Pin 5 2.3
11 3 5/8″ (92mm) Bullet Pilot Bit, 2 3/8″ API Reg. Pin 8 4.1
