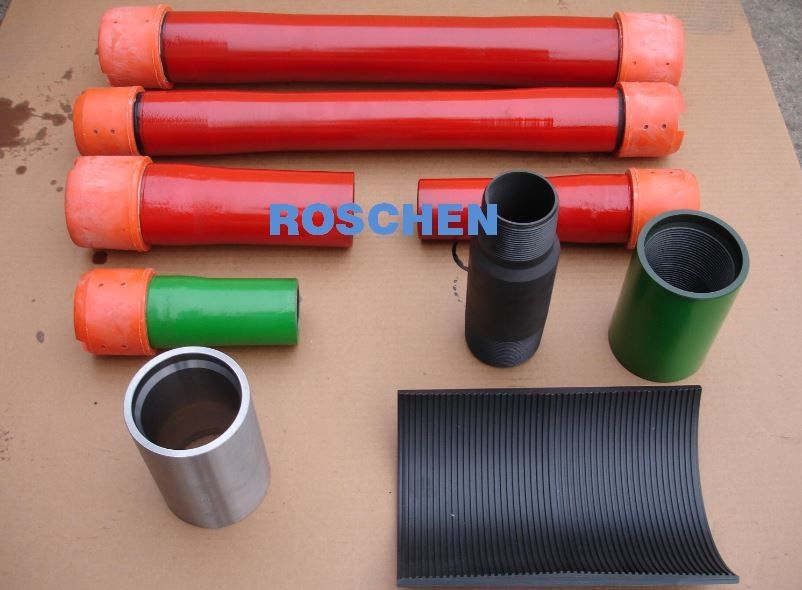

Pup joint 4 1/2”, Connection NC-46, length of 10 feet each piece



We can offers a wide range drill string products and accessories with standard API or proprietary high performance



connections to meet the most demanding drilling requirements.

Tubing Pup Joint Specifications
Outside Diameter 1.05 ~ 4-1/2 in (26.67 ~ 114.3 mm) nominal size OD
Weight Standard or Heavy Wall
Length 2, 3, 4, 5, 6, 8, 10, 12 ft (with other lengths available upon request)
Grade H40, J55, L80, N80/Q, C90, T95, P110
Connection EUE, NUE
Standard API 5CT, API 5B



Casing Pup Joint Specifications
Outside Diameter 4-1/2 ~ 20 in (114.3 ~ 508 mm) nominal size OD
Weight Standard or Heavy Wall
Length 2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20 ft (with other lengths available upon request)
Grade H40, J55, K55, L80, N80/Q, C90, T95, P110, Q125
Connection BTC, STC, LTC
Standard API 5CT, API 5B





Popular Size:

Tubing Pup Joints:

•Sizes: 2 ⅜” – 4 ½”

•Weight: Standard or Requested Weights

•Typical Lengths: 1, 2, 3, 4, 6, 8, 10, 12’ (other lengths available upon request)

•Grades: J-55, N-80, L-80, P-110

•Connections EU (external-upset) and NU (non-upset)

•Options: Custom Sizes, Markings, Paint, Plating, and Inspection available on request



Casing Pup Joints:

•Outside Diameter: 4 ½” – 13 3/8”

•All weights available

•Typical Lengths: 1, 2, 3, 4, 6, 8, 10, 12’ (other lengths available upon request)

•Grades: H40, J55, K55, N80, L80 T95, C110, P110, Q125

•Connections: SC, LC, BC, Semi Premium, and Premium

•Options: Custom Sizes, Markings, Paint, Plating, and Inspection available on request



Pup Joint Options:

•Pin x Pin

•Pin x Pin with Couplings Loose

•Coupling Box x Pin with Couplings Hand Tight

•Coupling Box x Pin with Couplings Bucked-On





Pup Joints are manufactured from AISI 4145H or 4140H-modified alloy, heat-treated to Hardness range of 285-341 with a Charpy “V” notch minimum impact strength of 40 ft/lb at 70° F and one inch below the surface. Pup Joints are heat-treated to 110,000 PSI minimum yield. All connections are phosphate coated to impede galling during initial make-up.
