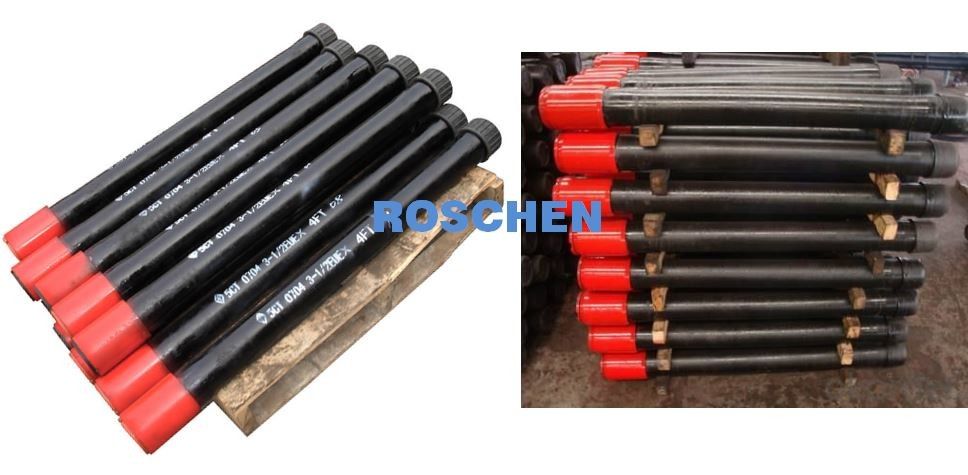

Pup joint 5 1/2”, Connection 5 1/2 FH, length of 5 feet each piece
A pup joint is Casing, Pipe or Tubing shorter in length than a standard tubular string. This allows for the adjustment and installation of tools and various tubular components when placement downhole is critical for a specific project. A Spacer Pipe is another reference used to identify pup joints. Pup joint features consist of connections, lengths, weights and material grade.
connections to meet the most demanding drilling requirements.
| Tubing Pup Joint Specifications |
| Outside Diameter |
1.05 ~ 4-1/2 in (26.67 ~ 114.3 mm) nominal size OD |
| Weight |
Standard or Heavy Wall |
| Length |
2, 3, 4, 5, 6, 8, 10, 12 ft (with other lengths available upon request) |
| Grade |
H40, J55, L80, N80/Q, C90, T95, P110 |
| Connection |
EUE, NUE |
| Standard |
API 5CT, API 5B |
| Casing Pup Joint Specifications |
| Outside Diameter |
4-1/2 ~ 20 in (114.3 ~ 508 mm) nominal size OD |
| Weight |
Standard or Heavy Wall |
| Length |
2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20 ft (with other lengths available upon request) |
| Grade |
H40, J55, K55, L80, N80/Q, C90, T95, P110, Q125 |
| Connection |
BTC, STC, LTC |
| Standard |
API 5CT, API 5B |
They are available in standard lengths of 5’, 10’, 15’ and 20’ with other configurations upon request.
Integral Pup Joints dedicated to Sour Service applications are available. PJ -110 PUP S are Sour Service Pup Joint using ASCOWELL C material providing improved resistance to Sulfide Stress Cracking with high yield strength.
We can offers a wide range drill string products and accessories with standard API or proprietary high performance.
