| Place of Origin | CHINA |
| Brand Name | ROSCHEN |
| Certification | API |
| Model Number | Pup joint 5inch |

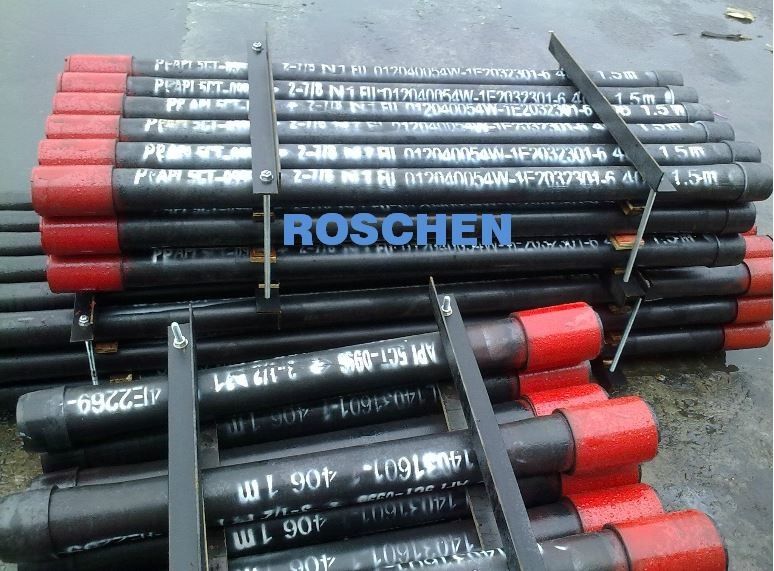

Pup joint 5”, Connection NC-50, length of 15 feet each piece
API Tubing Pup Joints
ROSCHEN manufacture pup joints in all sizes, grades, and thread profiles to meet any requirement. Our tubing pup joints are manufactured out of seamless tubing and machined or upset to final dimensions. All API casing and tubing pup joints are manufactured according to API Spec 5CT. Special requirements are available on request.
Manufactured according to API Spec 5CT using prime API monogrammed, seamless oil country tubing. Optional diameters, lengths, weights, and grades are available upon request.
| Diameters: |
.75" through 4.5" nominal O.D. |
| Weights: | Standard or Heavy Wall |
| Lengths: | 2, 3, 4, 6, 8, 10, 12 ft. Standard (Lengths up to 20' available upon request) |
| Grades: | J-55, N-80, N-80 Q & T, L-80, P-110, 13-CR and other premium grades |
| Connections: | EUE, NUE, Buttress |
Premium Tubing Pup Joints
Seamless pup joints with premium connections are available in API and exotic alloy grades. Premium ends are threaded by the manufacturer or authorized licensee.
| Diameters: |
.75" through 4.5" nominal O.D. |
| Weights: | Standard or Heavy Wall |
| Lengths: | 2, 3, 4, 6, 8, 10, 12 ft. Standard |
| Grades: | J-55, N-80, N-80 Q & T, L-80, P-110 and specialty grades |
| Connections: | Premium threads available include TenarisHydril, Kawasaki, and VAM |
Casing Pup Joints
Any length, weight, and grade are available upon request.
| Diameters: | 4.5" through 20" nominal O.D. |
| Weights: | Standard or Heavy Wall |
| Lengths: | Custom lengths available from 2 ft. through 20 ft |
| Connections: | STC, LTC, Buttress and premium threads |
Perforated Pup Joints
Available with standard or special perforation spacings. Each joint has four rows of ⅜ inch holes drilled longitudinally along the tube. Optional patterns, hole size, and lengths furnished upon request.
| Diameters: | 3.4" through 4.5" nominal O.D. |
| Weights: | Standard or Heavy Wall |
| Lengths: | As required |
| Grades: | J-55, N-80, N-80 Q & T, L-80, P-110 and specialty grades |
| Connections: | EUE, NUE, Buttress, Premium and T & C |
