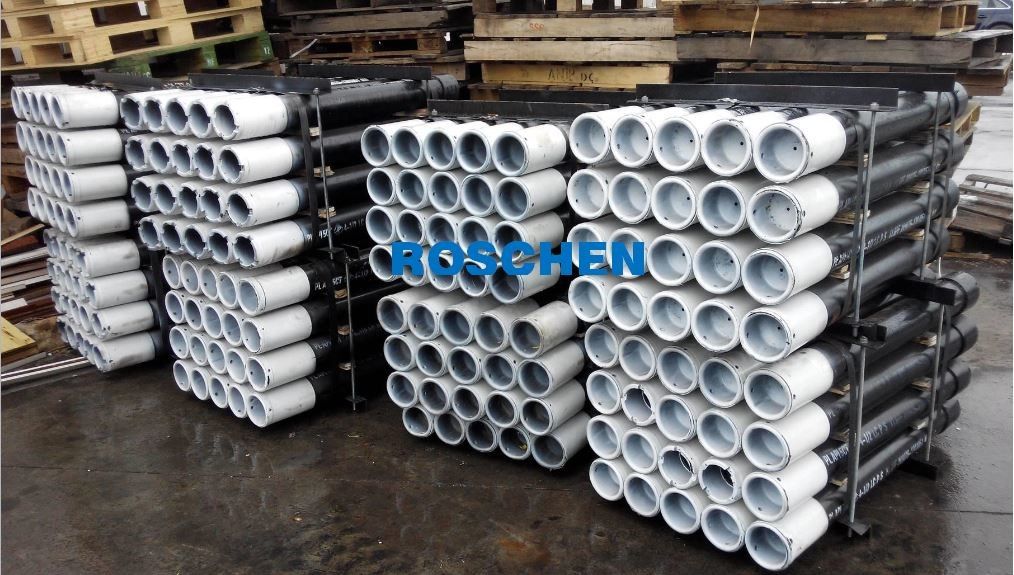

Casing Pipe and Upset Tubing
A casing pipe is rarely the product pipe, and is simply used in order to create a bore. This type of pipe is most commonly used to protect utility lines over short distances. The casing pipe may be installed in sections and then welded or threaded together immediately prior to installation.
The diameter of a casing pipe is usually between 4 to 55 inches in diameter, although there have been successful installations of casing pipes as big as 150 inches in diameter.
1.315” X 1.80 lb/ft Multiseal ROS-PS-8
| Specification | ||
| Nominal Tubing OD | 1.315" | |
| Drift Size | 0.955" | |
| Steel Grade | L-80 | |
| Nominal Weight | 1.80lb/ft | |
| Nominal Wall Thickness | 0.133" | |
| Nominal ID | 1.049" | |
| Connection Length | LP-Length Pin LB-Length Box LB Minimum=LP-0.18" |
|
| Connection Make Up Loss | 2.23" | |
| Manufacturing Criteria | API 5CT | |
| Tubing Capacities | ||
| Body Yield Strength | 40000lbs | 178kN |
| API Collapse | 14550 psi | 1003bar |
| Internal Yield | 14160psi | 977bar |
| Joint Strength | 45600lbs | 203kN |
| Connection Specification | |||
| Connection | ROS-PS-8 | Compatible With | 1" Hyd CS |
| OD | 1.552" | ID | 0.970" |
| Connection Length | 2.4" | Minimum | |
| 3.24" | Standard | 1 recut | |
| 4.08" | Type 2 | 2 recut | |
| 4.92" | Type 3 | 3 recut | |
| Minimum Make Up Torque | 400 lb/ft | 540 N m | |
| Optimum Make Up Torque | 450 lb/ft | 610 N m | |
| Maximum Make Up Torque | 500lb/ft | 680 N m | |
| Connection Tensile Efficientcy | 114% | Inspection Criteria | API5A5, API 5CT |
1.660” X 3.02 lb/ft Hydril CS
| Specification | ||
| Nominal Tubing OD | 1.66" | |
| Drift Size | 1.184" | |
| Steel Grade | L-80 | |
| Nominal Weight | 3.02 lb/ft | |
| Nominal Wall Thickness | 0.191" | |
| Nominal ID | 1.278" | |
| Connection Length | ||
| Connection Make Up Loss | 2.22" | |
| Manufacturing Criteria | API 5CT | |
| Tubing Capacities | ||
| Body Yield Strength | 71000 lbs | 316kN |
| API Collapse | 16290 psi | 1123bar |
| Internal Yield | 16110 psi | 1111 bar |
| Joint Strength | 71000 lbs | 316 kN |
| Connection Specification | |||
| Connection | 1 1/4" Hydril CS | Compatible With | 1.66" ROS-PS-8 |
| OD | 1.927" | ID | 1.218" |
| Connection Length | Minimum | ||
| Standard | 1 recut | ||
| Type 2 | 2 recut | ||
| Type 3 | 3 recut | ||
| Minimum Make Up Torque | 600 lb/ft | 810 N m | |
| Optimum Make Up Torque | 700 lb/ft | 946 N m | |
| Maximum Make Up Torque | 800lb/ft | 1081 N m | |
| Connection Tensile Efficientcy | 100% | Inspection Criteria | API 5A5, API 5CT |
1.900” X 3.64 lb/ft ROS Multiseal PS-8
| Specification | ||
| Nominal Tubing OD | 1.9" | |
| Drift Size | 1.286" | |
| Steel Grade | L-80 | |
| Nominal Weight | 3.64 lb/ft | |
| Nominal Wall Thickness | 0.2" | |
| Nominal ID | 1.5" | |
| Connection Length | LP-Length Pin LB-Length Box LB Minimum=LP-0.21" |
|
| Connection Make Up Loss | 2.23" | |
| Manufacturing Criteria | API 5CT | |
| Tubing Capacities | ||
| Body Yield Strength | 85000 lbs | 379kN |
| API Collapse | 15070 psi | 1039bar |
| Internal Yield | 14740 psi | 1017 bar |
| Joint Strength | 86000 lbs | 383 kN |
| Connection Specification | |||
| Connection | ROS-PS-8 | Compatible With | 1 1/2" Hyd CS |
| OD | 2.162" | ID | 1.440" |
| Connection Length | 2.43" | Minimum | |
| 3.27" | Standard | 1 recut | |
| 4.11" | Type 2 | 2 recut | |
| 4.95" | Type 3 | 3 recut | |
| Minimum Make Up Torque | 800 lb/ft | 1085 N m | |
| Optimum Make Up Torque | 900 lb/ft | 1220 N m | |
| Maximum Make Up Torque | 1000lb/ft | 1360 N m | |
| Connection Tensile Efficientcy | 101% | Inspection Criteria | API 5A5, API 5CT |
2.375” X 5.95 lb/ft ROS Multiseal PS-6
| Specification | ||
| Nominal Tubing OD | 2 3/8" | |
| Drift Size | 1.773" | |
| Steel Grade | P-110 | |
| Nominal Weight | 5.95 lb/ft | |
| Nominal Wall Thickness | 0.254" | |
| Nominal ID | 1.867" | |
| Connection Length | LP-Length Pin LB-Length Box LB Minimum=LP-0.24" |
|
| Connection Make Up Loss | 3.05" | |
| Manufacturing Criteria | API 5CT | |
| Tubing Capacities | ||
| Body Yield Strength | 186000 lbs | 828kN |
| API Collapse | 21010 psi | 1449bar |
| Internal Yield | 20590 psi | 1420 bar |
| Joint Strength | 202500 lbs | 902 kN |
| Connection Specification | |||
| Connection | ROS-PS-6 | Compatible With | 2 3/8" PH6 2 3/8" RPS6 2 3/8" BPS6 2 3/8" HIP-HD |
| OD | 2.906" | ID | 1.805" |
| Connection Length | 3.34" | Minimum | |
| 4.44" | Standard | 1 recut | |
| 5.53" | Type 2 | 2 recut | |
| 6.62" | Type 3 | 3 recut | |
| Minimum Make Up Torque | 800 lb/ft | 3660 N m | |
| Optimum Make Up Torque | 900 lb/ft | 4120 N m | |
| Maximum Make Up Torque | 1000lb/ft | 4580 N m | |
| Connection Tensile Efficientcy | 101% | Inspection Criteria | API 5A5, API 5CT |
2.875” X 8.70 lb/ft Hydril PSHW533
| Specification | ||
| Nominal Tubing OD | 2 7/8" | |
| Drift Size | 2.165" | |
| Steel Grade | P-110 | |
| Nominal Weight | 8.7 lb/ft | |
| Nominal Wall Thickness | 0.308" | |
| Nominal ID | 2.259" | |
| Connection Length | ||
| Connection Make Up Loss | 3.64" | |
| Manufacturing Criteria | API 5CT | |
| Tubing Capacities | ||
| Body Yield Strength | 273000 lbs | 1215kN |
| API Collapse | 21050 psi | 1450bar |
| Internal Yield | 20620 psi | 1422 bar |
| Joint Strength | 273000 lbs | 1215 kN |
| Connection Specification | |||
| Connection | 2 7/8 PSHW533 | Compatible With | PSH503 PSH553 PSH563 |
| OD | 3.328" | ID | 2.209" |
| Connection Length | Minimum | ||
| Standard | 1 recut | ||
| Type 2 | 2 recut | ||
| Type 3 | 3 recut | ||
| Minimum Make Up Torque | 2500 lb/ft | 3378 N m | |
| Optimum Make Up Torque | 3000 lb/ft | 4054 N m | |
| Maximum Make Up Torque | 4400lb/ft | 12259 N m | |
| Connection Tensile Efficientcy | 100% | Inspection Criteria | API 5A5, API 5CT |
3.500” X 12.95 lb/ft ROS Multiseal
| Specification | ||
| Nominal Tubing OD | 3.50" | |
| Drift Size | 2.625" | |
| Steel Grade | C-95SS | |
| Nominal Weight | 12.95 lb/ft | |
| Nominal Wall Thickness | 0.375" | |
| Nominal ID | 2.750" | |
| Connection Length | LP-Length Pin LB-Length Box LB Minimum=LP-0.43" |
|
| Connection Make Up Loss | 3.35" | |
| Manufacturing Criteria | API 5CT | |
| Tubing Capacities | ||
| Body Yield Strength | 349800 lbs | 1556 kN |
| API Collapse | 18180 psi | 1254 bar |
| Internal Yield | 17810 psi | 1228 bar |
| Joint Strength | 416260 lbs | 1852 kN |
| Connection Specification | |||
| Connection | ROS-multiseal PS-6 | Compatible With | 3 1/2 PH6 3 1/2 RTS-6 3 1/2 BTS-6 3 1/2 HITS-HD |
| OD | 4.313" | ID | 2.687" |
| Connection Length | 3.77" | Minimum | |
| 5.03" | Standard | 1 recut | |
| 6.28" | Type 2 | 2 recut | |
| 7.54" | Type 3 | 3 recut | |
| Minimum Make Up Torque | 6400 lb/ft | 8680 N m | |
| Optimum Make Up Torque | 7200 lb/ft | 9760 N m | |
| Maximum Make Up Torque | 8000lb/ft | 10850 N m | |
| Connection Tensile Efficientcy | 119% | Inspection Criteria | API 5A5, API 5CT |
Upset Tubing is a long tubing joint which is installed in a wellbore to facilitate the extraction of oil and gas. It acts as a conduit, through which the produced fluids or gas get transmitted from the bottom to the surface. Tubing joint is relatively a single length pipe that can vary in length anywhere from 25 to 30 ft. This ideal length allows easy production as the tubing joint is fitted with threads on both sides and can run down through a well of any depth. Like most tubing equipment, tubing joints are designed to suit a certain well type, based on the underground conditions and fluids.
