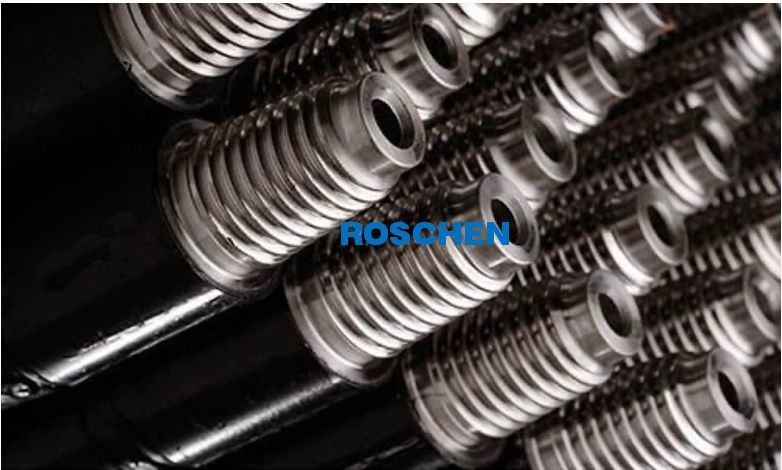

HDD Drill Rods and Ditch Witch Drill Pipe
5sets
MOQ
Negotiate
Price
HDD Drill Rods and Ditch Witch Drill Pipe
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: API
Model Number: ROS355-1149 / ROS355-1034.....
High Light:

Ditch Witch Drill Pipe

,

Ditch Witch Drill rods

,

HDD Drill Rods

Payment & Shipping Terms
Packaging Details: Bundle or Wooden Box
Supply Ability: 20000sets/m
Specifications
Product Description



HDD Drill Rods and Ditch Witch Drill Pipe



Ditch Witch Boring Rods are well known rods for oil well drilling. The oil rigs use the boring rods to connect to the drill bits. The rod rotates with high torque and bores the well. The HDD Drill Rods have high torque, high strength and high wear and tear resistance capacities. The ditch witch machines vary and the rods applied to those different machines vary as well.



Drill Rods Compatible with Ditch Witch Machine



Ditch Witch® Machine Part Number Mfr. Method Mid-Body Tool Joint OD Length Weight (lbs.) Connection Max Torque % Slope Per Rod Bend Radius Rack Quanitity
JT520 Power Pipe ® HD (fine thread) ROS355-1052 Inertia Welded 1.125" 1.750" 4.9' 16 DW 1.21-6 500 7% 70' 30
JT520 Power Pipe ® (coarse thread) ROS355-1066 Inertia Welded 1.125" 1.875" 4.9' 16 DW 1.10-5 500 7% 70' 30
JT5 Power Pipe ® HD (coarse thread) ROS355-1038 Inertia Welded 1.125" 1.875" 4.9' 17 DW 1.10-5 550 7% 70' 30
JT820/JT920/JT921 ROS400-963 1-pc. Forged 1.580" 2.000" 6.5' 28 DW 1.41-6 1,100 6.50% 100' 56
JT920L ROS400-842 1-pc. Forged 1.625" 2.000" 10' 37 DW 1.41-6 1,100 9.70% 100' 40
JT9 / JT922/ JT10 Power Pipe ® HD (coarse) ROS355-1149 or ROS355-1034 1-pc. Forged 1.580" 2.000" 6' 26 DW 1.30-5 1,100 6.00% 100' 50
JT1220 Power Pipe ® ROS355-1005 1-pc. Forged 1.820" 2.375" 10' 52 DW 1.47-4 1,400 8.30% 120' 40
JT1720/1720M1 ROS400-843 1-pc. Forged 2.125" 2.500" 10' 60 DW 1.69-6 1,800 8.80% 115' 44
JT20 / JT2020 Power Pipe ® HD ROS401-339 or ROS355-1106 1-pc. Forged 2.125" 2.625" 10' 69 DW 1.94-4 2,200 8.80% 115' 40
JT24 Power Pipe ® HD ROS355-1312 1-pc. Forged 2.250" 2.625" 10' 75 DW 1.76-4 3,000 8.50% 117' 28/40
JT25 / JT30 / JT2720M1 Power Pipe ® HD ROS355-1094 1-pc. Forged 2.375" 2.750" 9.8' 77 DW 2.11-4 4,000 8.00% 123' 25/50
JT2720 Power Pipe ® ROS400-844 1-pc. Forged 2.375" 2.750" 9.8' 77 DW 1.94-4 3,200 6.90% 145' 25/50
JT2720M1 / 3020M1 ROS400-1031 1-pc. Forged 2.375" 3.000" 9.8' 90 DW 2.11-4 4,000 6.50% 150' 24/48
JT4020 Power Pipe ® ROS400-846 1-pc. Forged 2.875" 3.250" 14.75' 165 DW 2.40-4 5,000 8.00% 185' 16/32
JT4020M1 Power Pipe ® ROS400-847 1-pc. Forged 2.875" 3.500" 14.75' 176 DW 2.59-4 5,000 8.00% 185' 16/32
JT40 Power Pipe ® HD ROS355-1210 1-pc. Forged 2.810" 3.125" 15' 150 DW 2.10-4 5,500 10.20% 146' 20/40
JT60 Power Pipe ® HD ROS355-1079 1-pc. Forged 3.0625" 3.500" 15' 184 DW 2.46-4 9,000 8.80% 170' 16/28
JT7020/8020/JT100 Power Pipe ® HD ROS368-665 or ROS355-1200 1-pc. Forged 3.500" 4.000" 14.75' 225 DW 3.27-4 10,000 7.20% 205' 12





ROSCHEN manufactures high-quality HDD (Horizontal Directional Drilling) drill rod compatible with Ditch Witch drill machines.

Tensile strength for Ditch Witch is 145,000 PSI , drill rod is the maximum stress the material will sustain before fracture.

Yield Strength 135,000 PSI. Ditch Witch drill rod yield strength is the stress corresponding to a specified permanent (plastic) deformation which is the point at which the material yields and won’t spring back.
