T6 Double Tube Core Barrel For Exploration Diamond Coring Samples
1 set
MOQ
Negotiate
Price
T6 Double Tube Core Barrel For Exploration Diamond Coring Samples
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: ISO
Model Number: T6-76/86/101/116/131/146
High Light:

Double Tube Core Barrel

,

Extension tube Core Barrel

,

Exploration Diamond Core Barrel

Payment & Shipping Terms
Packaging Details: wooden box
Supply Ability: 100000 pcs
Specifications
Product Description

T6-76/86/101/116/131/146 Double Tube Core Barrel for Exploration diamond Coring Samples





T6-76 Double Tube Core Barrel
T6-86 Double Tube Core Barrel
T6-101 Double Tube Core Barrel
T6-116 Double Tube Core Barrel
T6-131 Double Tube Core Barrel
T6-146 Double Tube Core Barrel




Double Tube core barrels:

T6 series double tube core barrel is a continuation of the T2 series, but of a sturdier design and available in large diameters, such as 76, 86, 101, 116, 131, 146mm. They are applied in surface mining , geotechnical drilling, and exploration diamond core drilling.

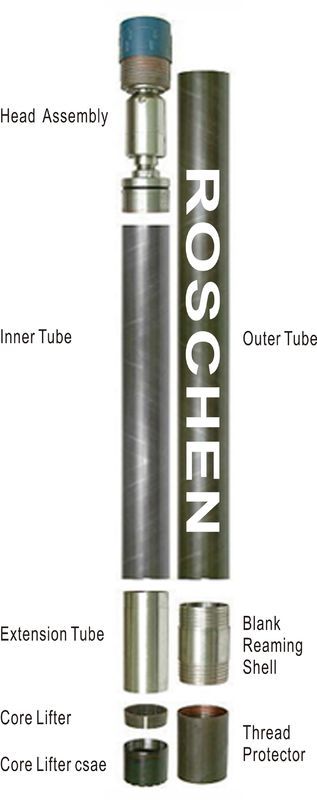

Double Tube Core barrel composed of parts:

1. Double tube core barrel head
2. Inner tube
3. Extension tube
4. Core Lifter
5. Core Lifter case
6. Outer Tube
7. Thread protector




T6-76/86/101/116/131/146 Double Tube Core Barrel for Exploration diamond Coring Samples



T6 series core barrel comprises of a core barrel head, inner and outer tubes, extension tube, core lifter, reaming shell and core bit. Different types of lifters, reaming shells and core bits need to be selected according to the application and geology.


The T2 series is a range of components which produces 42, 52, 62, 72 and 84mm cores suitable for medium to hard geology. Water or polymer flush is required.


Designed for use in conjunction with metric casing the thin wall double tube core barrel is easily converted to a triplex system with the addition of a Coreliner for increased core recovery.


These core barrels have a relatively small cutting area and therefore permit rapid penetration, especially in harder rock formations. Also the thin wall barrels and core bits produce fewer cuttings which permits the use of lower flush velocities resulting in diminished sample disturbance.


T6 Core Barrel
Core Barrel Hole Diameter(mm) Core Diameter(mm) Head Connection
T6-H 99.2 79 as per request
T6-101 101.3 79 as per request
T6-116 116.3 93 as per request
T6-131 131.3 108 as per request
T6-146 146.3 123 as per request


FAQ


Q: What are your main products?
A: Our products cover diamond core bit, non-coring bit, reaming shell, core barrel, casing pipe, drill rod, soil sampling equipment and other accessories.

Q: How about the delivery terms?
A: 1. Payment: T/T, L/C, Western Union, Paypal.
2. No request on min. order quantity.
3. Transportation: By DHL/UPS/Fedex express, air, sea, train.

Q: How about discount?
A: Price is based on order quantity.

Q: Do you accept sample order?
A: Yes sure, please contact us for details.

Q: How about your after-sales service?
A: As a manufacturer, we offer promt technical support for all issues. Besides we accept goods return or replace for quality problem.

Q: How does your company control the quality?
A: Quality always comes first. In order to guarantee quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure.
