| Place of Origin | CHINA |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | NQ HQ PQ |
NQ HQ PQ Wireline Core Drill Rods for Water Well Drilling
Product Description

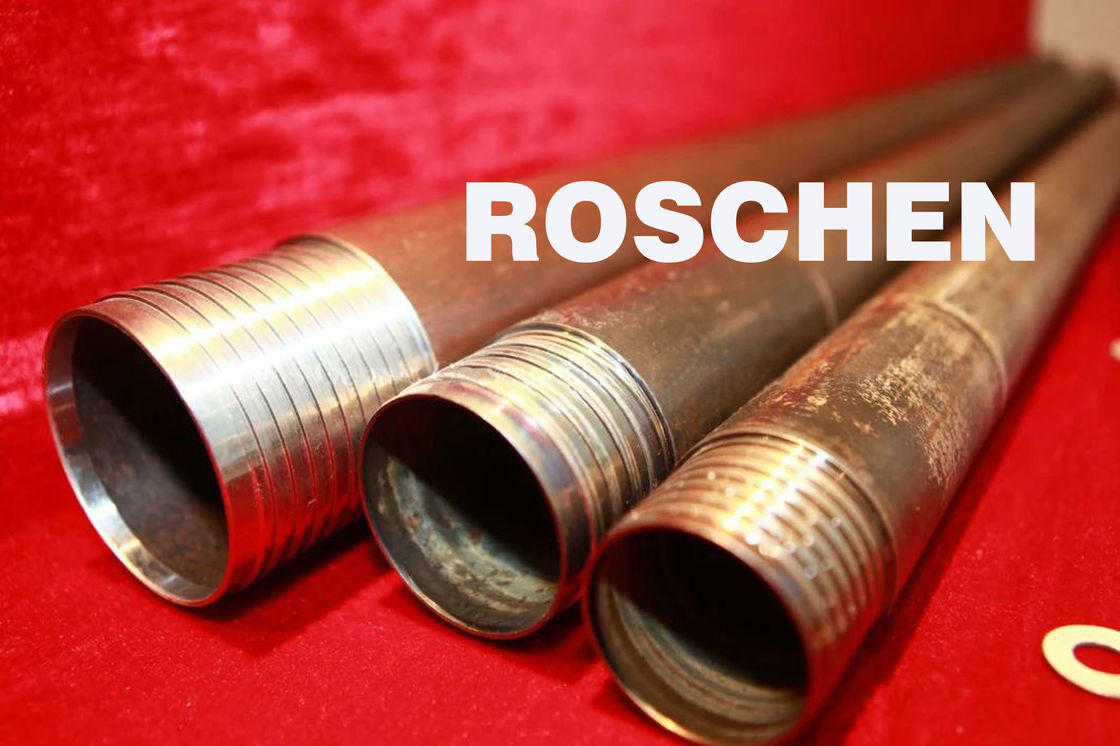

Wireline N H Core Drill Rods for Water Well Drilling
Roschen wireline drill rods are all manufactured by CNC machines. They're made of high quality alloy steel tube. All our drill rods, tool joints are complete heat-treated. Roschen drill rods will be also suited to drill deep holes, the maximum depth up to 3000 meters. From drillers' feedback, our rods have drilled up to 3200 meters depth.
| Wireline Drill Rods Specifications | ||||
| Size | O.D.(mm) | I.D.(mm) | Weight/3m (kg) | Weight/1.5m (kg) |
| A | 43.1 | 36.1 | 11 | 5.5 |
| B | 55.58 | 45.97 | 19.05 | 9.53 |
| N | 69.85 | 60.45 | 23.77 | 11.89 |
| H | 88.9 | 77.72 | 34.88 | 17.44 |
| P | 114.3 | 101.6 | 53.07 | 26.54 |
| ATW | 44.5 | 36.8 | 11.5 | 5.75 |
| BTW | 56.64 | 48.51 | 15.65 | 7.83 |
| NTW | 73.15 | 64.26 | 22.91 | 11.46 |
| HTW | 90.93 | 81.53 | 30.75 | 15.38 |
Size Available:
Wireline Series: BQ, NQ, HQ, PQ
"WJ" Design: AWJ, BWJ, NWJ, KWJ, HWJ
"W" Design: RW, EW, AW, BW, NW, HW
Metric Series: 33, 42, 50, 60, 70, 95, 102, 108
We also can produce various sizes of casing pipe tubes.
Size Available:
"W" Design: RW, EW, AW, BW, NW, HW, PW, SW, UW, ZW/HWT, PWT
Metric Series: 46, 56, 66, 76, 86, 101, 116, 131, 146
"X" Design: RX, EX, AX, BX, NX, HX, PX, SX, UX, ZX
All Chinese Sizes
Customer's special requirement is also available.
