| Place of Origin | Germany, US |
| Brand Name | ROSCHEN |
| Certification | ISO, API |
| Model Number | AQ, BQ, NQ, HQ, PQ/ BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT, T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T6 86, T6 101, T6 116, T6 131 |

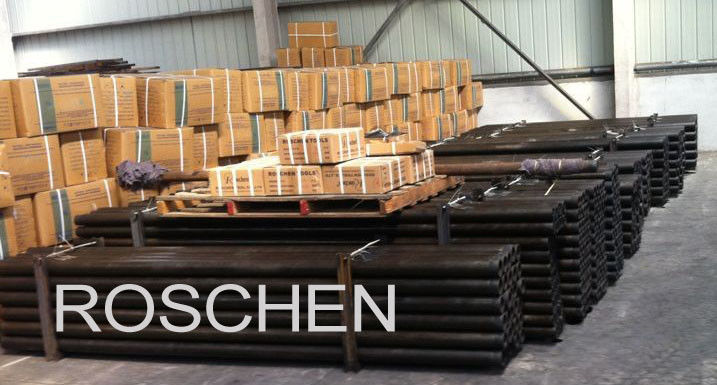

ISO9001 BQ BWL Drilling rods for Core Drilling Rig , Φ55.6 x 46 x 4.8 mm
Description:
Wireline drill tools can lift drill core from drill rods without picking up it. All the tools include parts of the drill tools, overshot assembly, wireline winch, drill rod, lifting appliance, holder and so on. Their advantages are higher penetration, higher core recovery ratio, longer bit life and lower labor intensity, and the advantages get more clear with the increasing of hole depth.
Q series wireline core drill rods are made of strong and ductile geological steel pipes which are entire-length thermal processed. Rod threads are formed using former cutters and specially hardened so that their accuracy and mechanism reach advanced world standard.
Now we have large quantity drill rods in store.
Specifications:
----- ISO9001: 9002 certificated
----- 50 years manufacturing experience
----- Super antiwear characteristic
----- Super long lifetime
----- Solid quality
Raw Materials:
ROSCHEN choose the best steel tubes in the market to manufacture our drill rods and pipes. Spot check will be conducted after the steel tubes delivered to company. We will make sure the compositions and specifications match the inspection report form the suppliers.
Based on the depth of drill bore, Q series wireline core drill rods are classified into A and B grades. A grade drill rod is entire-length or ends thermal processed and B grade drill rod is entire-length processed.
Material: 30CrMnSiA or 45MnMoB (A grade), XJY850, BG850(B grade), RS950, Eruopean/US Standard 40/41
Size Avaliable:
"Q" series: AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT
T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101 T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146, T6S 101, T6S 116
T series: T36, T46, T56, T66, T76, T86 Z series: Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146
B series: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
WF series: HWF, PWF, SWF, UWF, ZWF
WT series: RWT, EWT, AWT, BWT, NWT, HWT
WM series: EWM, AWM, BWM, NWM, HWM
WG series: EWG, AWG, BWG, NWG, HWG
Others: NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146, TT46, TB56, TS116, CHD101.
| Standard | Specification | Body Size | Length(M) | Thickness of The End | Bit Standard |
| B | BQA BQB | Ø55.6*4.8 | 3 | / | BQ |
| BRQ | Ø55.6*4.8 | 3 | / | BQ | |
| BQT | Ø56.5*4.75/6 | 3 | Internal Thicken | BQ | |
| BQS | Ø54*4.5/6.25 | 3 | Inside & Outside Thicken | BQS | |
| N | NQA NQB | Ø71*5.5(Ø70.1*5.05) | 3 | / | NQ |
| NRQ | Ø71*5.5(Ø70.1*5.05) | 3 | / | NQ | |
| NQT | Ø72*4.8/6 | 3 | Internal Thicken | NQ+1 | |
| NQS | Ø73*5/7.5 | 3 | Internal Thicken | NQ+1.5 | |
| H | HQR HQB | Ø89*5.6 | 3 | / | HQ |
| HRQ | Ø89*5.6 | 3 | / | HQ | |
| HQT | Ø91*5.8/6.75 | 3 | Internal Thicken | HQ+1 | |
| HQS | Ø91*5.8/7.5 | 3 | Inside & Outside Thicken | HQ+1 | |
| P | PQA PQB | Ø114.3*6.35 | 3 | / | PQ |
| PRQ | Ø114.3*6.35 | 3 | / | PQ |
Product Advantages:
1. Super Strong Toughness;
2. Super Elongation;
3. Through wall heat treated tube body;
4. Consistent concentricity, straightness;
5. DCDMA Standard
6. Solid quality and considerate service;
7. Cost-effective;
