| Place of Origin | Germany |
| Brand Name | ROSCHEN |
| Certification | ISO, MPA |
| Model Number | 0.5 0.75 1 1.125 1.25 1.375 1.5 1.625 1.75 2 3 4 |

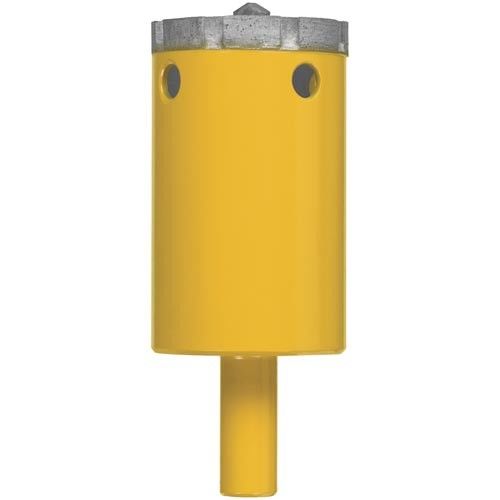

Stone Core Drill Bits 2" Diamond Cutting Tools for precision / accuracy drilling holes
Features:
Stone core bits, dry turbo rim core bits are continuous turbo rim core drilling bits. The larger bits (1" and bigger) feature a pin drill in the center of the bit to ensure the precision and accuracy of your holes and to stabilize the bit when drilling. These bits are perfect for drilling into porcelain tile, granite tile, and marble tile and can be used wet or dry.
Technical Specifications:
General Size Description: 2" x 2.25mm x 1/2" Drill Shaft
Cutting Application: Hard Material, Marble, Granite, Engineered Stone, Porcelain
Cutting Use: Wet or Dry
For Use With: Hand Drill
Cutting Diameter: 2" (50.8mm)
Arbor: 1/2" Drill Shaft
Segment Type: Continuous Turbo Rim
Max Cutting Depth: 1.732" (44mm)
Segment Height: .236" (6mm)
Segment Thickness/Kerf: .089" (2.25mm)
Maximum RPM: 12,000
Specifications:
| Diameter | Dimension | Thickness of segment(mm) | Dry/Wet | |
| inch | mm | |||
| 0.5 | 12.7 | .50"x3/8 Pilot | 2 mm | Dry/Wet |
| 0.75 | 19.05 | .75"x.3/8 Pilot | 2 mm | Dry/Wet |
| 1 | 25.4 | 1"x.3/8 Pilot | 2 mm | Dry/Wet |
| 1.125 | 28.575 | 1.125"x.3/8 Pilot | 2 mm | Dry/Wet |
| 1.25 | 31.75 | 1.25"x.3/8 Pilot | 2 mm | Dry/Wet |
| 1.375 | 34.925 | 1.375"x.3/8 Pilot | 2 mm | Dry/Wet |
| 1.5 | 38.1 | 1.50"x.3/8 Pilot | 2 mm | Dry/Wet |
| 1.625 | 41.275 | 1.625"x.3/8 Pilot | 2 mm | Dry/Wet |
| 1.75 | 44.45 | 1.75"x.3/8 Pilot | 2 mm | Dry/Wet |
| 2 | 50.8 | 2"x.3/8 Pilot | 2 mm | Dry/Wet |
| 3 | 76.2 | 3"x.3/8 Pilot | 2 mm | Dry/Wet |
| 4 | 101.6 | 4"x.3/8 Pilot | 2 mm | Dry/Wet |
Any other sizes and adaptors as request are available.
