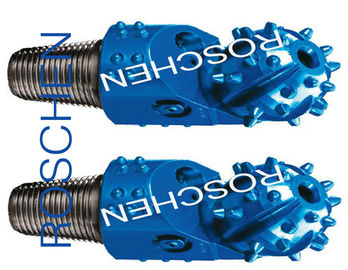

Single Cone Bit Tricone Drill Bit hole opener drilling 4 1/2" , 4 5/8" , 4 3/4"D

Single Cone Bit Tricone Drill Bit hole opener drilling 4 1/2" , 4 5/8" , 4 3/4"




Single Cone Bit

Cutting Structure
In response to the characteristics that inserts in different areas on the cone have different cutting actions, conical inserts are placed in permanent contact area and wedge inserts are placed in alternative contact area so that the drilling efficiency is greatly improved. Wear resistance of cutting structure is enhanced by setting diamond inserts in the permanent contact area of the cone where inserts are severely worn. Tungsten carbide inserts are placed on cone top face to protect cone body from abrasive erosion.

Gauge Structure

With active cutting gauge protection inserts on bit body, the bit has good gauge protection and up drill capability.


Bearing Structure

High precision journal bearing. Balls lock the cone. Hardface heat treated bearing surface. Cone bearing inlaid with friction-reducing alloy. Abrasion resistance and seizure resistance of the bearing are improved. Compared with three cone bit, the leg bearing is bigger, so it can receive higher WOB and high reliability.

Main Type Available Size:
4 1/8", 4 1/2", 4 5/8", 4 3/4", 5 7/8", 6", etc.



IADC Code:
517, 527, 537, 617, etc.
