3 3/4 Inch Tricone Drill Bit Matrix Body Pdc For Oil Well Drilling
1 pcs
MOQ
Negotiate
Price
3 3/4 Inch Tricone Drill Bit Matrix Body Pdc For Oil Well Drilling
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: ISO
Model Number: 3 3/4"
High Light:

3/4 Inch Tricone Drill Bit

,

Matrix Body Pdc Tricone Drill Bit

,

Oil Well Drilling Tricone Drill Bit

Payment & Shipping Terms
Packaging Details: Poly wooden box
Supply Ability: 1000000 pcs
Specifications
Product Description

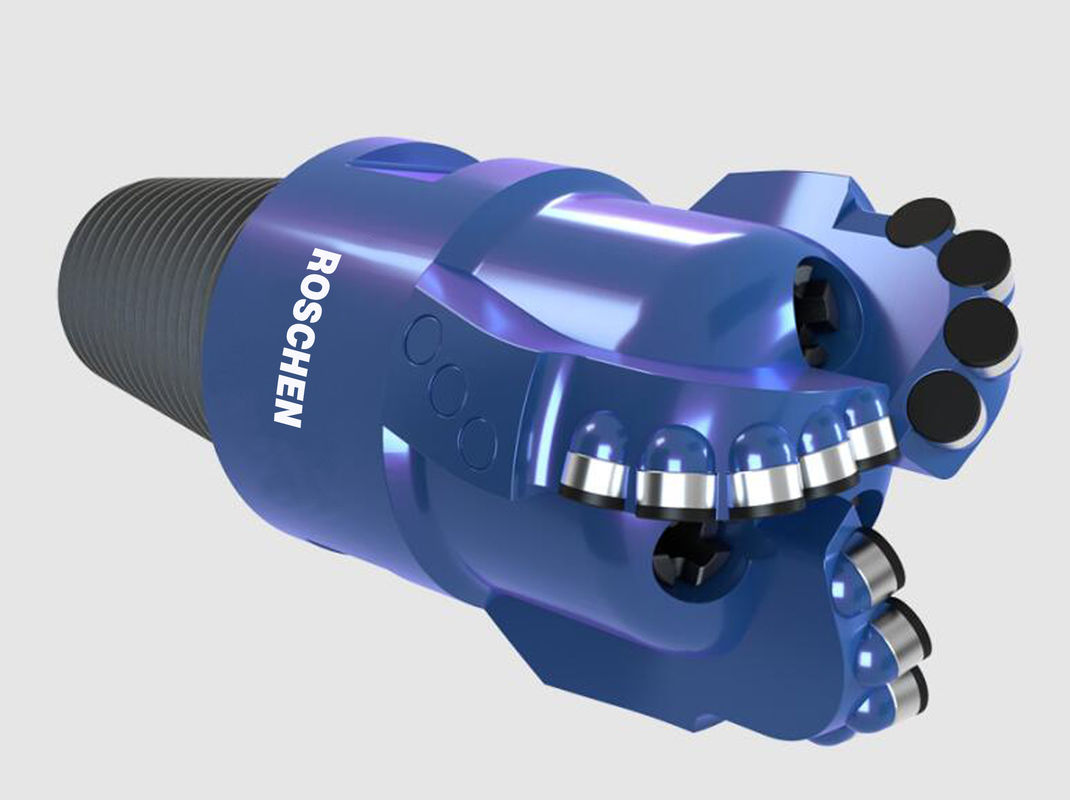

3 3/4" PDC DRILL BIT WITH 3 BLADES


Cutters: 9
Cutters Size: 13mm


pdc bit , pdc drill bit , matrix body pdc bit , matrix body pdc drill bit



Roschen manufacture PDC Drill Bits suitable for a range of drilling applications including Horizontal Directional Drilling (HDD), Water well Drilling, Oil & Gas, Geo-Thermal, Construction as well as Mining.

Please get in touch if you require a custom bit manufacturing or you don’t see the bit you require below.





3 3/4 inch matrix body pdc bit for oil well drilling





Specifications of Technical Data
Products Speification 3 3/4" (95,2mm) PDC Bits
IADC CODE S165
Number of Blades 3, 5
CUTTERS 9
Primary Cutter Size 13mm
Nozzle Qty. 5NZ
Gauge Length 2 Inch
THREAD 2 3/8" API REG
Operating Parameters
RPM (r/min) 60~150
WOB(KN) 20~80
Flow Rate (lps) 20~35
Application Soft to medium formation with low compressive strength ,such as medium soft shale,medium soft limestone,medium soft sandstone,medium formation with harder and abrasive interbeds,etc.



The matrix body PDC drill bit with 3, 4, 5 blades and 8 ~ 16mm cutters is suitable for medium hard formation, such as Limestone, anhydrite, dolomite, sandstone, shale, etc.

Balanced force design allows the bits suitable for down-hole motor application used in directional drilling with little radial vibration.

The reasonable layout of patented PDC cutters in various structures at different locations endows the bits with strong aggressiveness and anti-abrasiveness.

Strong aggressiveness allows the bits high ROP.

The simulation technology of dynamic flow field are used in hydraulic design to optimize down-hole flow field, beneficial to improve clearance speed and anti-balling simultaneously.


Please use PDC drill bit as the guidance of Roschen. More information and recommendation of your field and drilling, please contact roschen@roschen.com ; roschen@roschen.net
