CSK-146 , CSK 176 core barrel for triple tube exploration core drilling

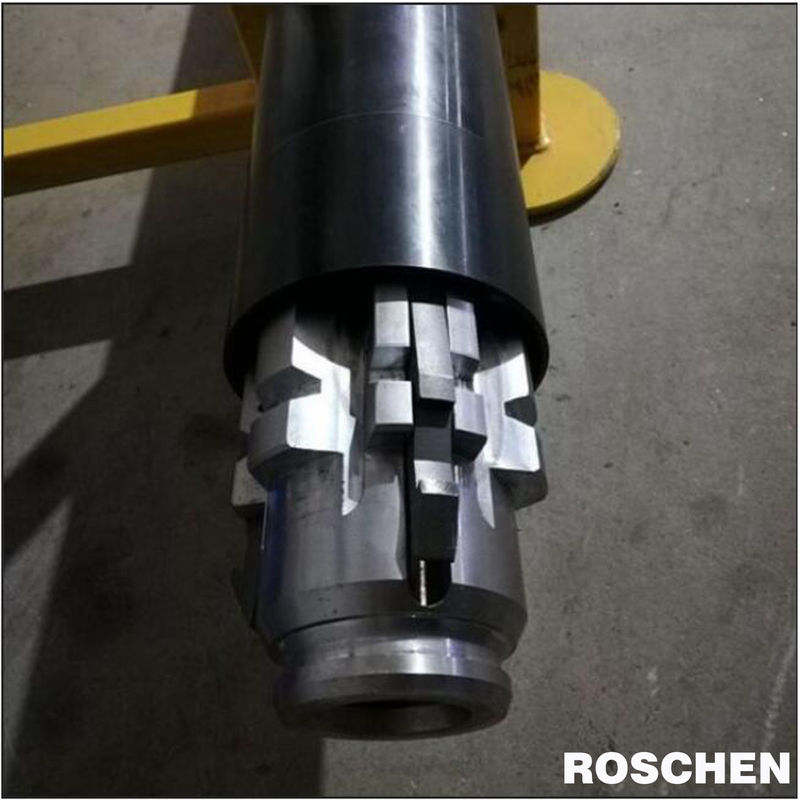

CSK-146 core barrel
The CSK-146 Wire-Line core barrel with standard borehole diameter of 146 mm and core diameter of 102 mm, was specially designed for coring in a wide range of formations, from soft to extremely hard or broken.
The CSK-146 is the most employed Wire-Line system for exploration drillings in mining and tunneling.
The CSK-146 impresses with its very rugged and low-wear material and therefore enables a very high durability.
As all Wire-Line system core barrels, the CSK-146, is completed with its corresponding Overshot ensuring correct placement of the inner tube in holes water filled or dry hole.
The resulting design gives the CSK-146 OVERSHOT many advantages like positive latching at any borehole angle or reliable operation while coring under roughest conditions.
Note: The rods to be used with this system will be Geo-Line rods, with heattreated rods being highly recommended.
Size | Hole (mm) | Core (mm) |
CSK-146 Core Barrel | 146 | 102 |
CSK 176 Core Barrel | 176 | 132 |
