HWL 5 ft 10 ft induction hardened Wire Line Drill Rod for exploration core drilling
  • HWL 5 ft 10 ft induction hardened Wire Line Drill Rod for exploration core drilling
  • HWL 5 ft 10 ft induction hardened Wire Line Drill Rod for exploration core drilling
  • HWL 5 ft 10 ft induction hardened Wire Line Drill Rod for exploration core drilling
  • HWL 5 ft 10 ft induction hardened Wire Line Drill Rod for exploration core drilling

HWL 5 ft 10 ft induction hardened Wire Line Drill Rod for exploration core drilling

Place of Origin CHINA
Brand Name ROSCHEN
Certification ISO
Model Number 70 73 76
Product Details
Highlight:

wireline drill rod

,

CHD Drill rod

,

heavy duty drill rod

Payment & Shipping Terms
Minimum Order Quantity
5 PCS
Price
Negotiate
Packaging Details
Steel bundle
Supply Ability
100000000 pcs
Product Description

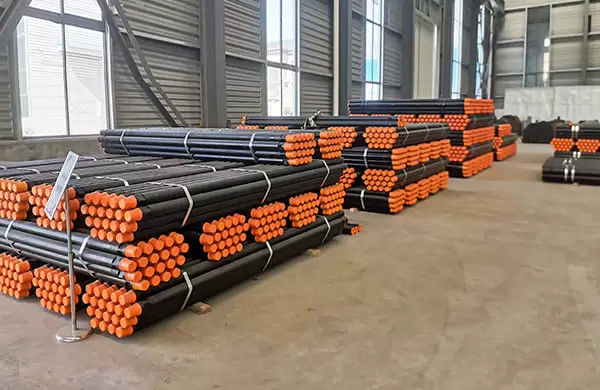

HWL 5 ft 10 ft induction hardened Wire Line Drill Rod for exploration core drilling




DRILL RODS


Taper Lock Wire Line Drill Rod


At ROSCHEN, our Wire Line Drill Rods, CHD Drill rods are manufactured from 4130 Q&T Alloy Tube. Our ability to produce the Heat Treated Rods in-house allows us to control our quality and delivery. Threading is accomplished utilizing Precision CNC Lathes, the most modern available. Our Hardened Thread Gages are calibrated to assure compatibility in the field. Roschen process friction welding tool joints with pipe body, its very high strenght and tensile for deep hole drilling.


At ROSCHEN, we are using different tons of friction welding machine produce CHD Composite Wire Line Rods, 4130 Mid-Body Tubes, and 4100 Series Q&T Tool Joints, always turned and threaded after friction welding to assure a Parallel Axis, and power strength.


HWL 5 ft induction hardened Wire Line Drill Rod




ROSCHEN Wire Line Drill Rod Specifications
Rod OD ID Wall Profile Lengths Packing Weight
BWL 2.188″ 1.813″ .188″ Taper Lock 1M,1.5M,5′,2M,3M,10′ 19 pc Bundles 4.08#/ft
W/Steel End Caps
NWL 2.750″ 2.375″ .188″ Taper Lock 1M,1.5M,5′,2M,3M,10′ 19 pc Bundles 5.18#/ft
W/Steel End Caps
HWL 3.500″ 3.063″ .219″ Taper Lock 1M,1.5M,5′,2M,3M,10′ 19 pc Bundles 7.78#/ft
W/Steel End Caps
HWT PHD 4.500″ 4.000″ .250″ Taper Lock 1M,1.5M,5′,2M,3M,10′ 7 pc Bundles 11.4#/ft
W/Steel End Caps
BT 2.188″ 1.813″ .188″ Tuff Rod 1M,1.5M,2M,3M,10′ 19 pc Bundles 4.08#/ft
W/Steel End Caps
NT 2.750″ 2.375″ .188″ Tuff Rod 1M,1.5M,2M,3M,10′ 19 pc Bundles 5.18#/ft
W/Steel End Caps
HT 3.500″ 3.063″ .219″ Tuff Rod 1M,1.5M,2M,3M,10′ 19 pc Bundles 7.78#/ft
W/Steel End Caps



HWL 5 ft 10 ft induction hardened Wire Line Drill Rod for exploration core drilling 0
