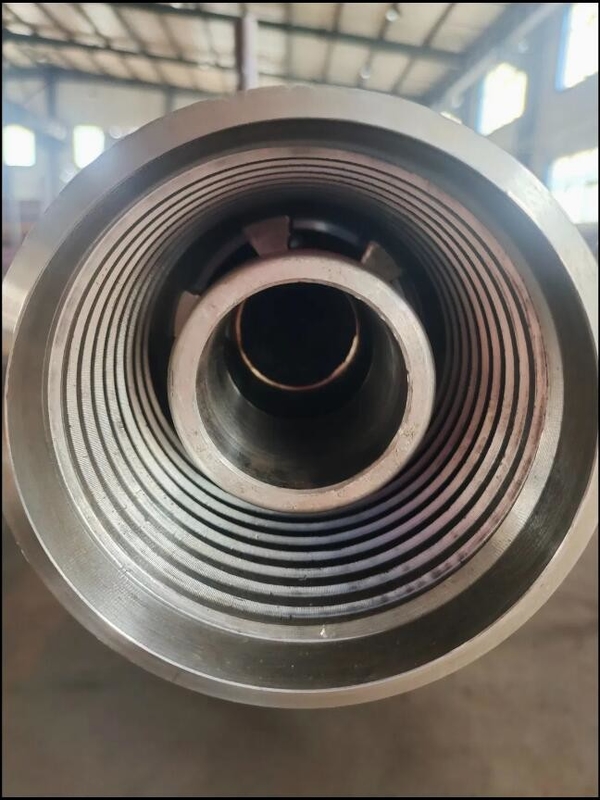

6m Length RC Drilling Rod Double Wall Reverse Circulation RC Drill Pipe
Our Remet Thread Drill Rod is a reliable and efficient tool for mining machinery. As a trusted supplier of mining equipment parts, we offer durable and affordable options for your drilling needs. Designed specifically for reverse circulation drilling, this drill rod is perfect for mining applications.
With its Remet thread design, this drill rod ensures a secure and tight connection, minimizing the risk of thread damage and providing a long-lasting solution. Its reverse circulation drill tool allows for efficient and effective drilling, ensuring optimal results in your mining operations.
Not only is this drill rod highly efficient, but it is also affordable. We understand the importance of cost-effectiveness in the mining industry, which is why we offer this high-quality drill rod at a competitive price.
Usually we are offering 50mm, 60mm, 76mm, 89mm, 95mm, 102mm, 114mm 127mm, 140mm, 159mm etc.
Notes:
1. New drill pipe should be pasted oil before connection
2. Make up and break at least 3 times before drilling
3. Hard bending and plastic coating can be processed according to clients' special requirements.
Reverse Circulation RC Drill Pipe technical parameters | |||||
Type | O.D of the outer tube (mm) | I.D of the inner tube (mm) | Out. diameter of joint (mm) | Type of threads | Effective length (m) |
WP50/20 | 50 | 20 | 50 | 1, 1.5, 3,.4.5, 6 | |
WP73/35 | 73 | 35 | 73 | 1, 1.5, 3,.4.5, 6 | |
WP89/40 | 89 | 40 | 89 | 1, 1.5, 3,.4.5, 6 | |
WK76/32 | 76 | 32 | 78 | 3" Remet | 1, 1.5, 3,.4.5, 6 |
WK102/41 | 102 | 41 | 103 | 4" Remet | 1, 1.5, 3,.4.5, 6 |
WK114/52 | 114.3 | 52 | 116 | 4 1/2" Remet | 1, 1.5, 3,.4.5, 6 |
WK114/38 | 114.3 | 38 | 114.3 | 4 1/2" Metzke | 1, 1.5, 3,.4.5, 6 |
WK114/50 | 114.3 | 50 | 114.3 | 4 1/2" Remet | 1, 1.5, 3,.4.5, 6 |
WB114/65 | 114 | 65 | 156 | 4 IF | 1, 1.5, 3,.4.5, 6 |
WB127/76 | 127 | 76 | 162/168 | 4 1/2 IF | 3, ,4.5, 6, 9.5 |
DB127/76 | 127 | 76 | 184 | 5 1/2 FH | 3, ,4.5, 6, 9.5 |
WB140/88 | 139.7 | 88 | 184 | 5 1/2 FH | 3, ,4.5, 6, 9.5 |
WB219/130 | 219 | 130 | 240 | 8 5/8 FH | 3, ,4.5, 6, 9.5 |
Process Flow Sheet
