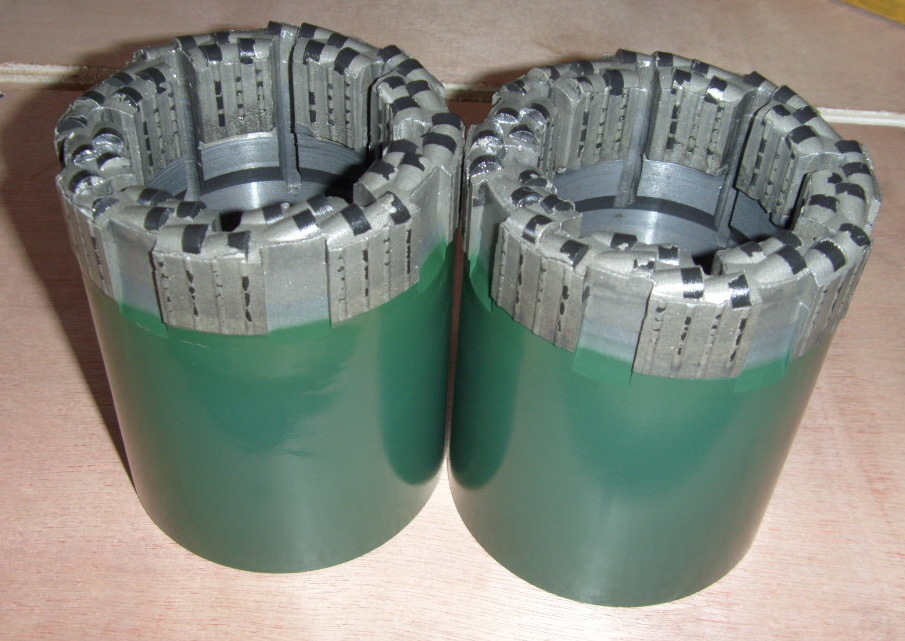

Geological Tsp Geocube Diamond Drill Bits
  • Geological Tsp Geocube Diamond Drill Bits
  • Geological Tsp Geocube Diamond Drill Bits
  • Geological Tsp Geocube Diamond Drill Bits
  • Geological Tsp Geocube Diamond Drill Bits

Geological Tsp Geocube Diamond Drill Bits

Product Details
Diameter:
30mm
Package Quantity:
1
Painting:
Clear.
Item No:
BQ NQ HQ PQ Diamond Reaming Shell
Tools:
Atlas Copco Tools
Max Rpm:
12,000
Drilling Depth:
1000 Meters
Feature:
Fast Working
Products:
Ultramatrix Core Bits
Finish:
Diamond
Black Oxide:
Lron,Steel,Stainless Steel,Wood
Series No:
NX Double Tube Core Barrel
Rigs:
Diamond Core Drill Rigs
Drill Bits:
Rock Core Drill Bits
Drill Type:
Core Drill
Product Description

Geological Tsp Geocube Diamond Drill Bits


Geological Tsp Geocube Diamond Drill Bits



Geological Tsp Geocube Diamond Drill Bits


Product Description

Our Advantages:
1. More than 10 years experience in diamond drill bit manufacture field;
2. All products certificated by ISO9001: 9002;
3. Be reputed to be one of the best diamond bit suppliers in China;
4. We are lies inland of China, where the labor cost is less than China coastal areas;
5. We bought our own land and built our own factory; We can provide you competitive price as well as solid quality products

Specifications:

TSP core bits are set with Thermally Stable Polycrystalline cutters, mounted in the bit crown matrix. The bit is extremely tough
TSP core bits are set with Thermally Stable Polycrystalline cutters, mounted in the bit crown matrix. The bit is extremely tough and will cope with massive or broken formations, from soft to hard, highly abrasive formations.
With consistent performance across a wide range of formations, this kind of bit offers a very cost-effective drilling solution in many circumstances, and at the same time allows bit inventory costs to be much reduced.

HQ TSP Core Drilling Bits Model: NQ

Introduction:
Impregnated Diamond Core Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.

Experience and power:
Many years of experience combined with recent improvements in technology and manufacturing concepts have resulted in greatly improved drilling performance of impregnated diamond core drill bits for mineral exploration.
Surface-Set diamond bits are primarily recommended for use in drilling relatively soft, abrasive, unconsolidated formations that are not effectively drilled by impregnated diamond bits. They are also recommended for use in drilling harder formations where the available rotational speeds and bit loads are insufficient to use impregnated diamond bits due to drilling equipment limitations.

Use:
Drill soft to hard rock, widely used in all kinds of drillings for prospecting, water and electricity building and construction industry of road, railway, bridge and building taking out core to examine stake, etc.

Structure:
They are manufactured with very small, high quality synthetic diamonds mixed evenly through a metal matrix. DIYFIA core bits are manufactured to give optimum penetration rates and bit life, which is required to keep the cost of diamond drilling to minimum.



Wireline diamond core bits specifications
SIZE CORE Ø HOLE Ø
AQTK 35.5 mm (1-3/8 in) 48 mm (1-7/8 in)
BQ 36.4 mm (1-7/16 in) 60 mm (2-3/8 in)
BQTK 40.7 mm (1-5/8 in) 60 mm (2-3/8 in)
NQ 47.6 mm (1-7/8 in) 75.7 mm (3 in)
NQTK (NQ2") 50.6 mm (2 in) 75.7 mm (3 in)
NQ3 45 mm (1-3/8 in) 75.7 mm (3 in)
HQ 63.5 mm (2-1/2 in) 96 mm (3-3/8 in)
HQ3 61.1 mm (2-3/8 in) 96 mm (3-3/8 in)
PQ3 85 mm (3-3/8 in) 122.6 mm (4-7/8 in)
PQ3 83 mm (3-1/4 in) 122.6 mm (4-7/8 in)



Wireline diamond core bits, metricl diamond impregnated drill bits specifications
"Q" series: AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT
A-Gauge Core Bits: AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: NQ, NQ-RSG, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW,
H-Gauge Core Bits: HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P-Gauge Core Bits: PQ, PQ3, PWF-Long, PWF-Short
S-Gauge Core Bits: SWF-Long, SWF-Short
U-Gauge Core Bits: UWF-Long, UWF-Short
Z-Gauge Core Bits: ZWF-Long, ZWF-Short
T Series: T36, T46, T56, T66, T76, T86, T101
TT Series: TT46, TT56, TT66, TT76, TT86, TT101
T2 Series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
TB Series Metric Core Bits: TB36, TB46, TB56, TB66, TB76, TB86, TB101
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
B Series(IS03552-1)Metric Core Bits: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
All other standard: CDDA, DCDMA, Crealius, and ISO sizes.



Diamond Drill Bits for Granite
Diamond Drill Bits
Diamond Drill Bits for Stone
Diamond Drills for Stone
Diamond Drill Bits Home Depot
Diamond Drills for Glass
Diamond Drill Bits for Sale
Diamond Drill Bits for Steel
China Geological
Tsp Diamond Bit Suppliers
Tsp Drill Bits Manufacturers
Geological Bits Manufacturers
Diamond Core Drill
Drill Tools
Core Drill
Cutting Tool
Drilling Tool
Rock Drill Bits
Smith Drill Bits
China Diamond Core Drill





FAQ


Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.

Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.

Q: How about discount?
A: Price is based on products and order quantity.

Q: Do you accept sample order?
A: Yes sure, please contact us for details.

Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.

Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure.
