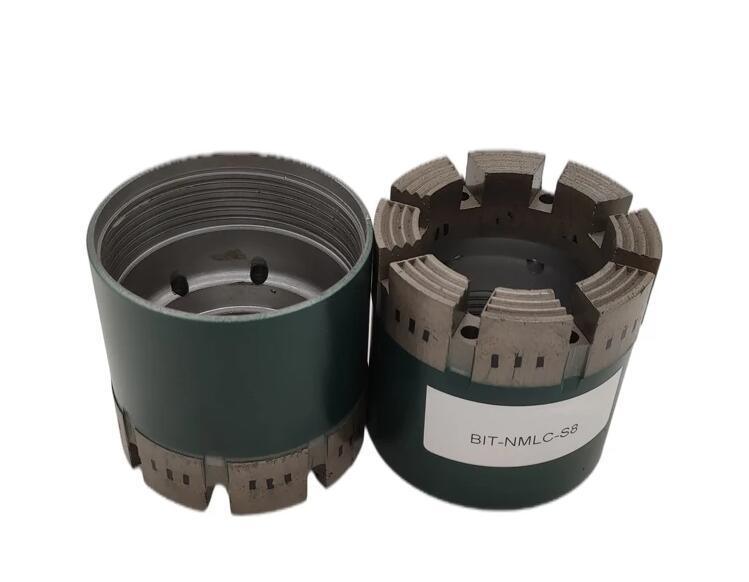

Nmlc Diamond Core Drill Bit Used for Nmlc Core Barrel
  • Nmlc Diamond Core Drill Bit Used for Nmlc Core Barrel
  • Nmlc Diamond Core Drill Bit Used for Nmlc Core Barrel
  • Nmlc Diamond Core Drill Bit Used for Nmlc Core Barrel
  • Nmlc Diamond Core Drill Bit Used for Nmlc Core Barrel
  • Nmlc Diamond Core Drill Bit Used for Nmlc Core Barrel
  • Nmlc Diamond Core Drill Bit Used for Nmlc Core Barrel

Nmlc Diamond Core Drill Bit Used for Nmlc Core Barrel

Product Details
Segment Height:
10mm
Standard:
DCDMA CMS GB
Diameter Of Shank:
6.35mm
Inner Hole:
1-1/4"-7/Customize
Segemt Height:
15mm
Equipment:
Top Hammer Drill Rigs
Core Drilling:
Exploration Core Drilling
Rock:
Rock Core Drilling Equipment
Type:
Core Drill Bit
Drill Bits:
Diamond Core Drill Bit
Connector Type:
1/2 Gas, 1 1/4" UNC
Drill Rigs:
Diamond Core Drill Rigs
Max Rpm:
600
Type No:
UMX (Ultramatrix) Diamond Bit Series
Model No:
Good Price Core Trays
Product Description

Professional NMLC Diamond Core Drill Bit

Model: NMLC Core Bits

1. Impregnated Diamond Core Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.


Sizes Available:
Diamond core drill bits and diamond non-core drill bits
A-Gauge Core Bits: A, A-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: B, B-RSG, B-2.400, B3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: N, NMLC, NWG(NX), NWM, NWT, TNW
H-Gauge Core Bits: N, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P- Gauge Core Bits: P, P3, PWF-Long, PWF-Short
S- Gauge Core Bits: SWF-Long, SWF-Short
U- Gauge Core Bits: UWF-Long, UWF-Short
Z- Gauge Core Bits: ZWF-Long, ZWF-Short
T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
And all other standard CDDA, DCAMA, Crealius, and ISO sizes.


Features:

Significantly outperforms the successful Series range in drilling speed and bit life.
Protects the diamond from oxidation and surface degradation.
Inhibits the premature "pull-out" of the diamond.
Available in multiple standard configurations and selected on the basis of relative rock hardness and ground conditions.



NMLC BMLC NMLC HMLC Impregnated Diamond Core Bits Size
Size Hole Diameter Core Diameter Length
NMLC 75.69mm 51.94mm 1.0m
NMLC 75.69mm 51.94mm 1.5m
NMLC 75.69mm 51.94mm 3.0m
HMLC 99.21mm 63.50mm 1.5m
HMLC 99.21mm 63.50mm 3.0m


BQ NQ HQ PQ Diamond Impregnated Core Bit

Wireline diamond core bits specifications
SIZE CORE Ø HOLE Ø
AQTK 35.5 mm (1-3/8 in) 48 mm (1-7/8 in)
BQ 36.4 mm (1-7/16 in) 60 mm (2-3/8 in)
BQTK 40.7 mm (1-5/8 in) 60 mm (2-3/8 in)
NQ 47.6 mm (1-7/8 in) 75.7 mm (3 in)
NQTK (NQ2") 50.6 mm (2 in) 75.7 mm (3 in)
NQ3 45 mm (1-3/8 in) 75.7 mm (3 in)
HQ 63.5 mm (2-1/2 in) 96 mm (3-3/8 in)
HQ3 61.1 mm (2-3/8 in) 96 mm (3-3/8 in)
PQ3 85 mm (3-3/8 in) 122.6 mm (4-7/8 in)
PQ3 83 mm (3-1/4 in) 122.6 mm (4-7/8 in)



Wireline diamond core bits, metricl diamond impregnated drill bits specifications
"Q" series: AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT
A-Gauge Core Bits: AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: NQ, NQ-RSG, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW,
H-Gauge Core Bits: HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P-Gauge Core Bits: PQ, PQ3, PWF-Long, PWF-Short
S-Gauge Core Bits: SWF-Long, SWF-Short
U-Gauge Core Bits: UWF-Long, UWF-Short
Z-Gauge Core Bits: ZWF-Long, ZWF-Short
T Series: T36, T46, T56, T66, T76, T86, T101
TT Series: TT46, TT56, TT66, TT76, TT86, TT101
T2 Series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
TB Series Metric Core Bits: TB36, TB46, TB56, TB66, TB76, TB86, TB101
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
B Series(IS03552-1)Metric Core Bits: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
All other standard: CDDA, DCDMA, Crealius, and ISO sizes.



Diamond Drill Bits for Granite
Diamond Drill Bits
Diamond Drill Bits for Stone
Diamond Drills for Stone
Diamond Drill Bits Home Depot
Diamond Drills for Glass
Diamond Drill Bits for Sale
Diamond Drill Bits for Steel
China Geological
Tsp Diamond Bit Suppliers
Tsp Drill Bits Manufacturers
Geological Bits Manufacturers
Diamond Core Drill
Drill Tools
Core Drill
Cutting Tool
Drilling Tool
Rock Drill Bits

Smith Drill Bits
China Diamond Core Drill





FAQ


Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.

Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.

Q: How about discount?
A: Price is based on products and order quantity.

Q: Do you accept sample order?
A: Yes sure, please contact us for details.

Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.

Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure.
