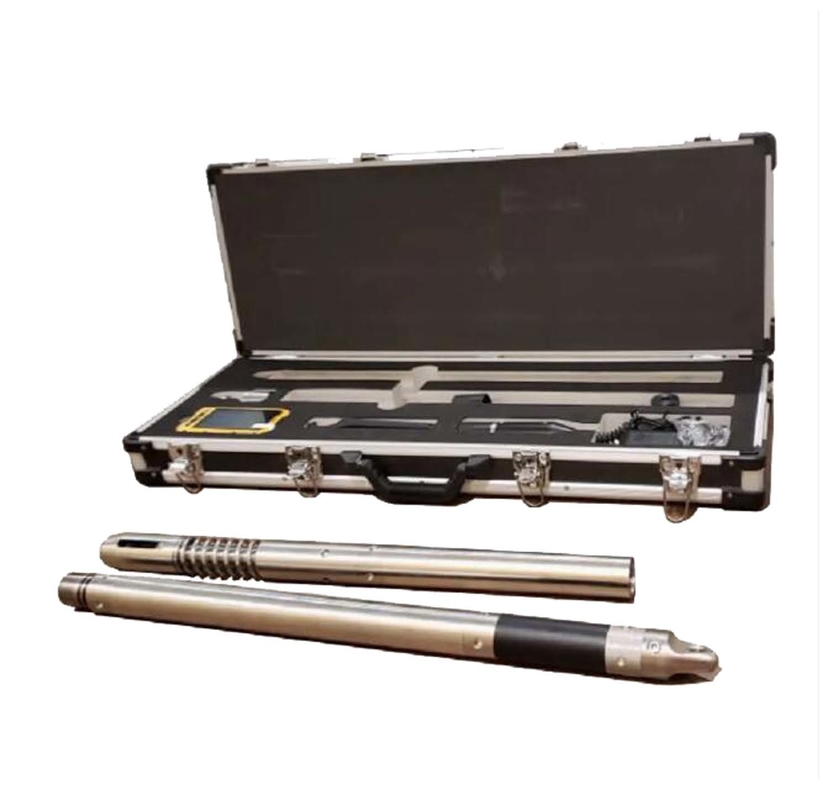

Wireless Digital Compass Inclinometer 40mm x 1200mm 2000m Depth
  • Wireless Digital Compass Inclinometer 40mm x 1200mm 2000m Depth
  • Wireless Digital Compass Inclinometer 40mm x 1200mm 2000m Depth
  • Wireless Digital Compass Inclinometer 40mm x 1200mm 2000m Depth
  • Wireless Digital Compass Inclinometer 40mm x 1200mm 2000m Depth
  • Wireless Digital Compass Inclinometer 40mm x 1200mm 2000m Depth
  • Wireless Digital Compass Inclinometer 40mm x 1200mm 2000m Depth
Wireless Digital Compass Inclinometer 40mm x 1200mm 2000m Depth

Wireless Digital Compass Inclinometer 40mm x 1200mm 2000m Depth

Place of Origin CHINA
Brand Name ROSCHEN
Certification ISO
Model Number RS1000
Product Details
Special Features:
Waterproof / Weatherproof,wirelessa And Intercom,700TVL
Sensor:
CCD,CMOS,sony 1/3 Inch CCD Sensor 0.1 Lux,Other,SONY
Type:
Digital Camera,Analog Camera,IP Camera,borehole Camera,Well Deep Inspection System
Technology:
Pan / Tilt / Zoom,Pinhole,NetWork,Color,Infrared
Style:
Dome Camera,Mini Camera,Box Camera,Pipe Camera,water Well Camera
Resolution:
High Resolution Waterproof Camera,1024*768,680*480,720TVL,1920*1080
View Angle:
135°,130 Degree Wide Angle,170 Degree,60 Degree
Product Name:
Video Borescope,Downhole TV Camera,Sewer / Crawler Pipe Inspection Robot Camera System,Schroder P60SJ Underwater Vertical Downhole Pipe Inspection Camera,High Quality Waterproof Imaging System
Warranty:
1 Year,Two Years
Display:
LCD Display,12 Inch Touch Display,4.3inch,7inch /12 Inch Display Optional With 32G SD Card
Lens:
Sapphire Glass,2.8-12mm,2.8 MM Manual Zoom Lens,3X Digital Zoom,5Xoptical Zoom
Cable Length:
150-500m Flexible Cable,100m Cable (100-2000m 0ptional),30m
Image Sensor:
1/4 CMOS,1/4 Sony CCD,1/3 Inch Sony CCD Sensor
Camera Diameter:
14mm,45mm,63mm
Storage Medium:
128G Solid State Drive,SD Card(max 32G)
Monitor Size:
10'' Monitor,15inch TFT Color Monitor
Camera Type:
180 Degree/360 Degree,Downhole Video Camera,360 Degree Rotation Camera
Camera Housing:
Stainless Steel
Measuring Depth:
100-2000m
Highlight:

Downhole Survey Tools

,

Wireless Digital Compass Inclinometer

,

Downhole Deviation Tester

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiate
Packaging Details
Poly wooden box
Delivery Time
5 - 8 working days
Payment Terms
T/T
Supply Ability
1000000 set
Product Description

Wireless Digital Compass Inclinometer Downhole Deviation Tester Downhole Survey Tools





Basic Info of Downhole Survey Tools
Model NO. RS-2000
Brand ROSCHEN
Condition New
Dimension 40mm*1200mm
Cotrollor 2600mA
Measuring Time 0.5s
Power Li-ion Battery, 7.4V Rechargeable
Weight 6kg
Water/Dustproof IP65
Endurance About 20 Hours
Working Temperatrue -10°c - 70°c
Max Pressure 20MPa
Storage 8GB ROM
Measuring Depth 2000m
Accuracy 2mm
Vertical Lines 1
Horizontal Line 2
After-sales Service Online Guidance
Warranty 1 Year
Transport Package Natural Package
Specification CE
Trademark ROSCHEN
Origin China
HS Code 9015800090
Production Capacity 1000 Sets/Month





The geotechnical inclinometer is designed and made for inclination measurement and direction control during engineering drilling, exploration drilling and directional drilling. Combines sensor, power supply, data processing system, and other controlling unit together, it can independently determine dip angle and azimuth angle of borehole at multi-points. No cable is needed. No mechanical moving parts. It is reliable and with high performance price ratio.



Technical parameters:

Wireless Digital Compass Inclinometer Downhole Deviation Tester





1.Inclination Range 0° - 80°(Resolution 0.01°) Accuracy ±0.1° (0° - 50°)
±0.8° (50° - 80°)
2.Azimuth Range 0° - 360°(Resolution 0.1°) Accuracy ±3°(@Inclination>4°)
3.Pressure 20MPa
4.Dimensions Ø40mm×1200mm Weight about 6Kg
5.Temperature -10°C - 70°C
6.Power (Probe) 7.4V Rechargeable Battery Endurance About 20 hours
7.Power (Controller) 2600 mAh Polymer Battery
8.Depth 2000m
9.Storage 8GB ROM



Main application:

Wireless Digital Compass Inclinometer Downhole Deviation Tester

Measuring the inclination and azimuth of the non-magnetic boreholes for geological survey and geological project.


Structure:





Wireless Digital Compass Inclinometer 40mm x 1200mm 2000m Depth 0





Wireless Digital Compass Inclinometer 40mm x 1200mm 2000m Depth 1
