T6-76 T6-86 T6-101 T6-116 T6-131 T6-146 Double Tube Core Barrels
| Basic Info. |
| Model NO. |
T6-76 T6-86 T6-101 T6-116 T6-131 T6-146 |
| Certification |
ISO |
| Condition |
New |
| Advantage |
Strong Compatibility |
| Standard |
International Standard |
| Length |
1.5m and 3m |
| Quality |
High Quality |
| Transport Package |
in Plywood Case |
| Specification |
DCDMA, CDDA, ISO |
| Trademark |
ROSCHEN |
| HS Code |
8431432000 |
Product Description

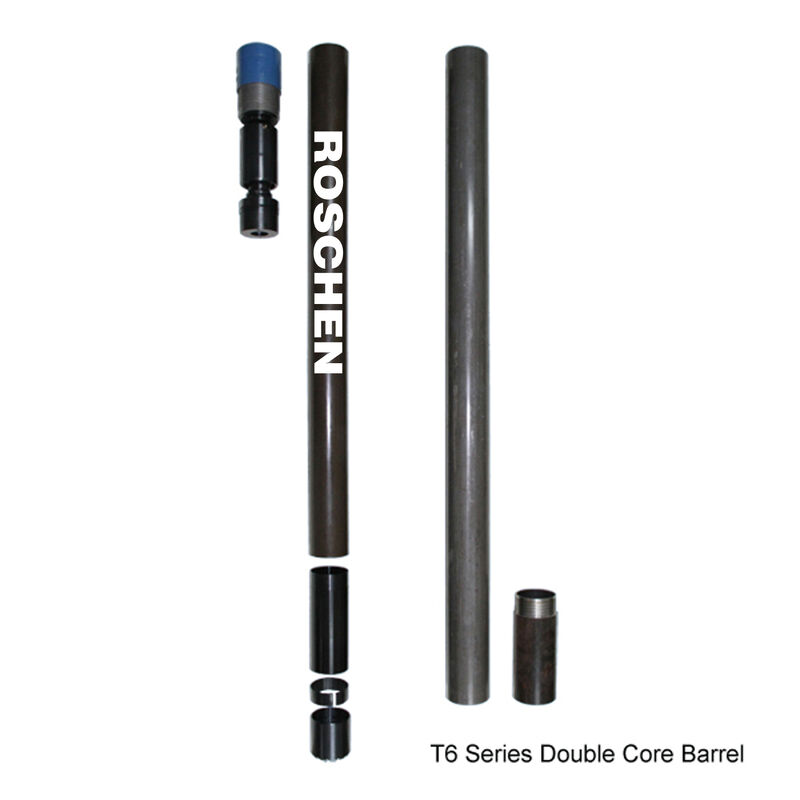

1. T6 Series Double Tube Core Barrels These are a continuation of the T2 series, but of a sturdier design and available in larger diameters, 76, 86, 101, 116. 131 and 146mm. Also available is the T6H which produces H size hole. They are applied in surface mining and geotechnical drilling.
2. General purpose conventional core barrels designed for coring in soft to hard homogenous and slightly broken formations with water, mud, polymer or air flushing. Although designed as double tube core barrels, all can be converted to triple tube by incorporating PVC coreliners.
3. The inner and outer tubes are manufactured to our own specification from cold drawn tube of a very high tensile strength and straightness. The head is manufactured from heat treated alloy steel to ensure a long life.
4. If you need any further information, please feel free to contact with us, we will be quite pleased to show all the details you asked for.
| Core Barrel Size: |
| Wireline series: |
AQ, BQ, NQ, HQ, PQ, PQ3, HQ3, NQ3, BQ3, NQ2, BQU, NQU, HQU, BTW, NTW, HTW, Geobor S146, SK6L 146 |
| T2 series: |
T2 46, T2 56, T2 66, T2 76, T2 86, T2 101 |
| TT series: |
TT 46, TT 56 |
| T6 series: |
T6 76, T6 86, T6 101, T6 116, T6 131, T6 146 |
| T6S series: |
T6S 76, T6S 86, T6S 116, T6S 131, T6S 146 |
| B series: |
B46, B56, B66, B76, B86, B101, B116, B131, B146 |
| MLC series: |
BMLC, NMLC, HMLC, 3C, 4C, 6C |
| LTK series: |
LTK48, LTK60 |
| WF series: |
HWF, 412F, PWF, SWF, UWF, ZWF |
| WT series: |
RWT, EWT, AWT, BWT, NWT, HWT (Single Tube, Double Tube) |
| WG series: |
EWG, AWG, BWG, NWG, HWG (Single Tube, Double Tube) |
| WM series: |
EWM, AWM, BWM, NWM, HWM |
| Other sizes: |
AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, TBW, M101, Denison |
