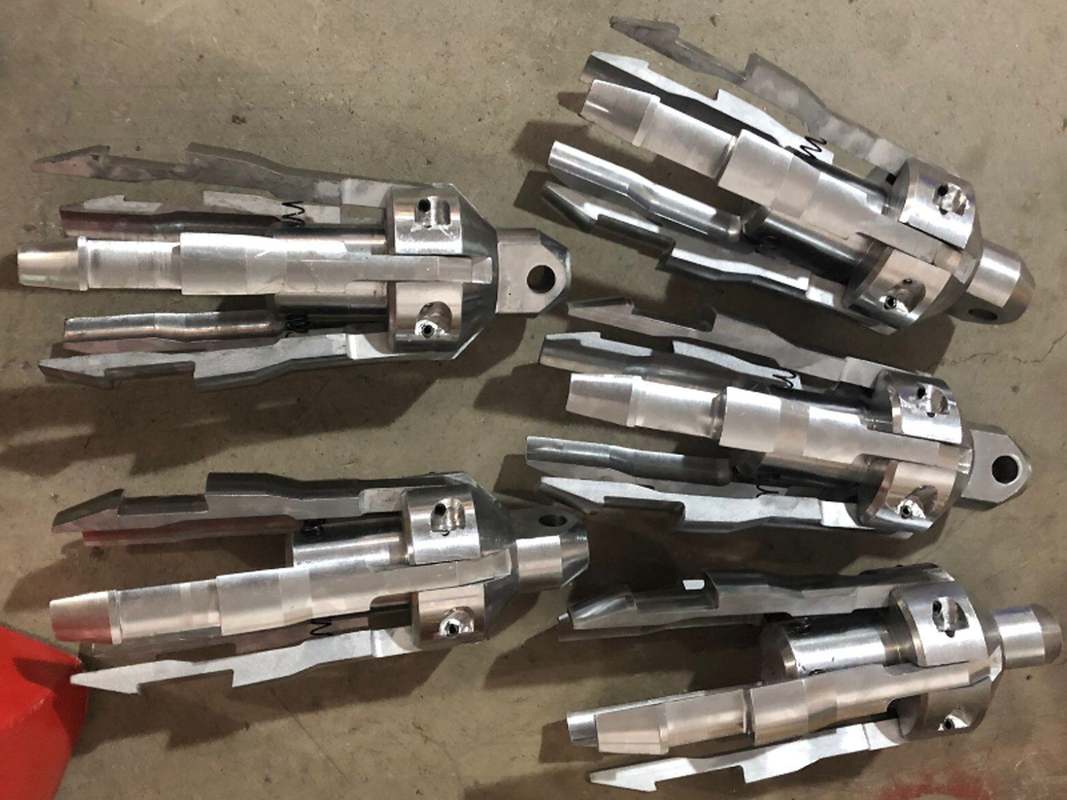

Csk 146/Sk6l 146 Triple Tube Wireline Core Barrel
| Place of Origin | CHINA |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | CSK 146, CSK 176 |
Product Details
Highlight:
CSK-146 core barrel
,CSK-176 core barrel
,Geobor S triple tube core barrel
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiate
Packaging Details
Wooden box
Supply Ability
1000 set
Product Description
Csk 146/Sk6l 146 Triple Tube Wireline Core Barrel
Core Barrels
ROSCHEN coring systems stand for high quality and guarantee the best possible core recovery. In this field we have decades of experience. Due to the continuous improvement of our systems, you can always rely on their steadiness.
ROSCHEN Drilling offers a wide range of heavy-duty core barrel types for the fields of mining, oil and gas, as well as geotechnical engineering. Beside wireline core barrels, we supply double- and single tube core barrels. Optional variants with liner, multi-drill system or core orientation system are available. All wireline core barrels are equipped with the flexible Christensen latching head which assures a secure locking in every situation.
| Wireline Core Barrels Specifications | ||||
| System | Borehole Diameter* | Core Diameter | Outer Barrel OD | Depth Range** |
| CA | 52,0 mm | 27,0 mm | 44,5 mm | 2.100 m |
| CB | 64,0 mm | 36,5 mm | 57,2 mm | 2.100 m |
| CN | 75,7 mm | 47,6 mm | 70,0 mm | 2.000 m |
| CH | 96,3 mm | 63,5 mm | 92,1 mm | 2.000 m |
| CP | 122,6 mm | 85,0 mm | 117,5 mm | 2.000 m |
| NXB II | 75,7 mm | 47,6 mm | 73,0 mm | 2.100 m |
| HXB II | 92,8 mm | 61,2 mm | 90,0 mm | 2.300 m |
| CSK 146 | 146,0 mm | 102,0 mm | 140,0 mm | 2.200 m |
| CSK 176 | 176,0 mm | 132,0 mm | 171,0 mm | 1.800 m |
| SK 4 ¼" B | 120,6 mm | 69,0 mm | 110,0 mm | 2.500 m |
| SK 4 ½" B | 123,8 mm | 78,0 mm | 114,3 mm | 2.300 m |
| SK 5 ¾" | 157,0 mm | 88,9 mm | 146,0 mm | 4.500 m |
| SK 5 ½" B | 161,9 mm | 101,4 mm | 152,4 mm | 3.000 m |
| Notes | ||||
| *Borehole diameter adjustable with core bit. | ||||
| **Values calculated for original Christensen drill rods with safety factor 2. | ||||
