Auger Drilling
>
|
|
| Place of Origin | CHINA |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | 2 ~ 12" |
Frost and Solid Augers Drill Difficult Soils with Hammer Rotation Auger Drilling
Frost and Solid Augers Drill Difficult Soils with Hammer Rotation Auger Drilling

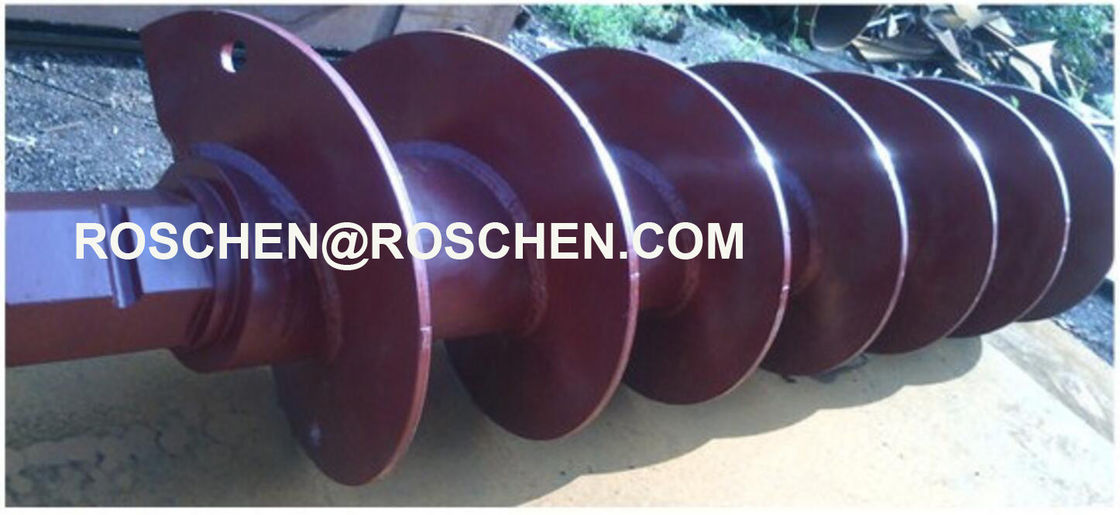

Frost and Solid Augers
There is something for just about everyone in our solid auger line of equipment. Use a 2.5 in. or 4.5 in. auger to open a probe hole through a frost layer, asphalt, or compacted surface fills. When the layer has been penetrated, remove the auger and begin probing. You can even use your GH60 hammer rotation to drill an 8 in. hole for a well head protector.
Frost & Solid Augers:
· 2.5 in. Frost Augers for GH60 Hammers
· 2.5 in. Frost Augers for GH40 Hammers
· 4.5 in. Frost Augers for GH60 Hammers
· 8 in. Solid Augers for GH60 Hammers
| Conventional Conveyor Flight Augers With Standard Hexagon Connections | ||||||||
| "A" | "B" | "C" | "D" | "E" | Part Number | Weight | Type Service | |
| Auger Diameter | Spiral Pitch | Flight Length | Axle Diameter | Type Connection | lbs. | kg. | ||
| 2-1/2" (63.5 mm.) |
2-3/4" (69.8 mm.) |
3 Ft. (0.914 m.) |
1-1/8" x 21/32" (28.5 x 16.0 mm) |
1-1/8" Hex (28.5 mm.) Use Drive Pin #130064-3 |
330523-1 | 8.0 | 3.6 | Standard |
| 5. Ft. (1.524 m.) |
330523-2 | 11.0 | 5.0 | |||||
| 3" (76.2 mm.) |
3" (76.2 mm.) |
3 Ft. (0.914 m.) |
1-1/2" x 1" (38.1 x 25.4 mm) |
330098-9 | 10.0 | 4.5 | Heavy Duty | |
| 5. Ft. (1.524 m.) |
330098-4 | 15.0 | 6.7 | |||||
| 4" (101.0 mm.) |
3" (76.2 mm.) |
3 Ft. (0.914 m.) |
330069-1 | 13.0 | 5.8 | Heavy Duty | ||
| 5. Ft. (1.524 m.) |
330069-3 | 21.0 | 9.5 | |||||
| 4" (101.0 mm.) |
3" (76.2 mm.) |
3 Ft. (0.914 m.) |
1-1/2" x 1-3/16" (38.1 x 30.1 mm) |
330069-23 | 13.0 | 5.8 | Standard | |
| 5. Ft. (1.524 m.) |
330064-27 | 21.0 | 9.5 | |||||
| 4" (101.0 mm.) |
4" (101.0 mm.) |
3 Ft. (0.914 m.) |
2" x 1-1/2" (50.8 x 38.1 mm) |
1-5/8" Hex (41.2 mm.) Use Drive Pin #130064-1 |
330069-28 | 13.0 | 5.8 | Heavy Duty |
| 5. Ft. (1.524 m.) |
330069-29 | 21.0 | 9.5 | |||||
| 4-1/2" (113.7 mm.) |
4" (101.0 mm.) |
3 Ft. (0.914 m.) |
330135-4 | 14.0 | 6.3 | Heavy Duty | ||
| 5. Ft. (1.524 m.) |
330135-6 | 21.0 | 9.5 | |||||
| 5-1/2" (139.7 mm.) |
5" (127.0 mm.) |
3 Ft. (0.914 m.) |
330136-4 | 18.0 | 8.1 | Heavy Duty | ||
| 5. Ft. (1.524 m.) |
330136-6 | 30.0 | 13.5 | |||||
| 5-1/2" (139.7 mm.) |
4" (101.0 mm.) |
3 Ft. (0.914 m.) |
330524-1 | 18.0 | 8.1 | Heavy Duty | ||
| 5. Ft. (1.524 m.) |
1-5/8" Hex (41.2 mm.) Use Drive Pin #130064-2 |
330524-2 | 30.0 | 13.5 | ||||
| 5-7/8" (149.2 mm.) |
5" (127.0 mm.) |
3 Ft. (0.914 m.) |
2-7/8" x 2-9/16 " (72.4 x 65.0 mm) |
330066-9 | 27.0 | 12.1 | Standard | |
| 5. Ft. (1.524 m.) |
330066-0 | 45.0 | 20.3 | |||||
| 5-7/8" (149.2 mm.) |
6" (152.4 mm.) |
3 Ft. (0.914 m.) |
2-7/8" x 2-1/4" (72.4 x 57.1 mm) |
Use Drive Pin #130064-2 |
330066-11 | 27.0 | 12.2 | Heavy Duty |
| 5. Ft. (1.524 m.) |
330066-12 | 45.0 | 20.3 | |||||
| 7" (177.8 mm.) |
7" (177.8 mm.) |
3 Ft. (0.914 m.) |
2" x 1-1/2" (50.8 x 38.1 mm) |
Use Drive Pin #130064-1 |
330138-1 | 35.0 | 15.8 | Standard |
| 5. Ft. (1.524 m.) |
330138-3 | 55.0 | 25.0 | |||||
| 8-7/8" (225.4 mm.) |
8" (203.2 mm.) |
3 Ft. (0.914 m.) |
2-7/8" x 2-1/4" (72.4 x 57.1 mm) |
Use Drive Pin #130064-2 |
330089-10 | 39.0 | 17.6 | Heavy Duty |
| 5. Ft. (1.524 m.) |
330089-12 | 59.0 | 26.7 | |||||
| 10" (254.0 mm.) |
10" (254.0 mm.) |
3 Ft. (0.914 m.) |
330525-1 | 46.0 | 20.8 | Heavy Duty | ||
| 5. Ft. (1.524 m.) |
330525-2 | 73.0 | 33.0 | |||||
| *Weights are (+/-) 10%. For Hole Diameters: see cutter head size. | ||||||||
