HQ NQ PQ Core Barrel , 10 Feet Wireline Core Barrel for exploration core drilling
Exploration diamond drilling is used in the mining industry to probe the contents of known ore deposits and potential sites. By withdrawing a small diameter core of rock from the orebody, geologists can analyse the core by chemical assay and conduct petrologic, structural and mineralogical studies of the rock.
Roschen introduced the wireline core retrieval system in 1921, being the first diamond drilling exploration product manufacturer to offer this revolutionary system. The Roschen design engineering team continued to refine the initial system, resulting in the launch of the industry-standard patented Q wireline system in 1948.

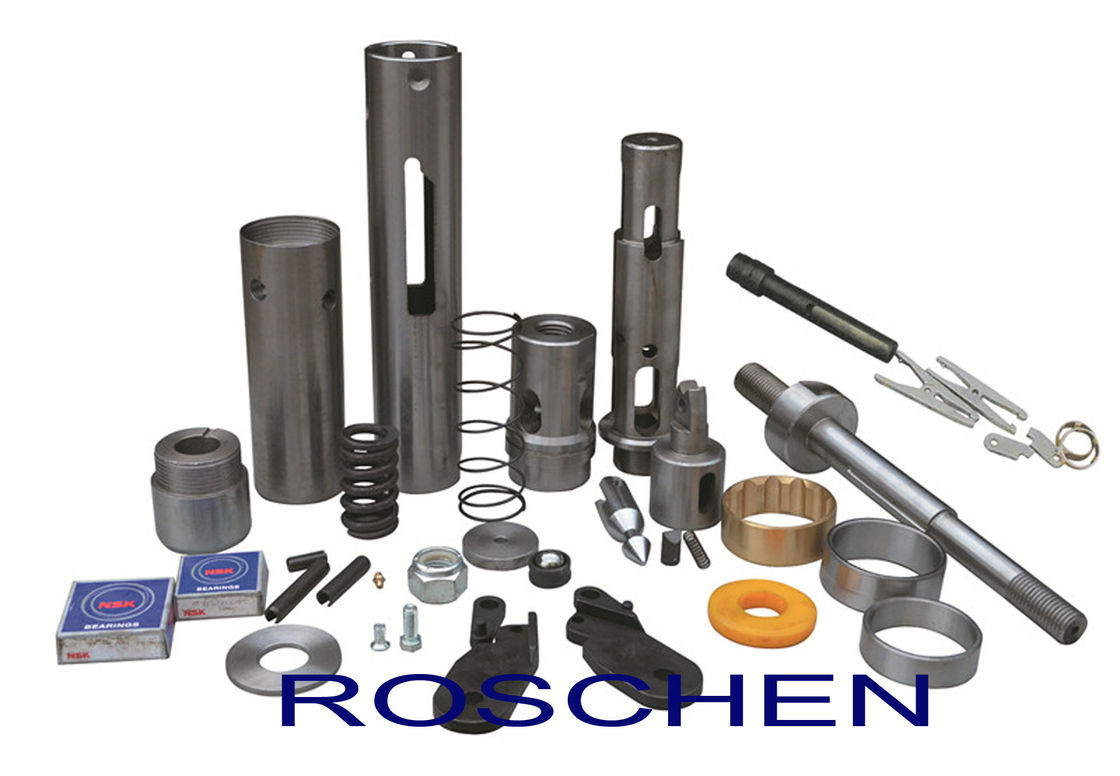

We offer a complete range of genuine Q wireline coring system components including wireline tools, rods and casing, and coring bits.
Our Q, Q TK*, Q 3, Q TT systems are designed to increase core recovery and productivity in any drilling condition, delivering greater efficiencies and reliability to the driller. Whether drilling a standard DCDMA hole or a project requiring a split tube to retrieve soft, highly fractured formations – the Genuine Q Wireline Coring System is proven to perform.
NQTK also known as NQ2
GENUINE Q WIRELINE CORING SYSTEM
q-wireline-q wireline coring system Q
Q wireline coring systems are ideal for use in most drilling conditions and are available for application in standard DCDMA hole sizes (A, B, N, H, P). The standard system consists of the core barrel assembly and the overshot assembly. The core barrel assembly is composed of the inner-tube and outer-tube groups. The inner-tube group collects the core sample during the drilling process and is independent of the outer-tube group.
Q-wireline-tk wireline coring system Q TK
With the goal of providing our customers a larger diameter core sample without increasing the hole diameter, Boart Longyear introduced the Thin Kerf (TK) wireline coring system option. Q TK wireline systems are optimized to allow for a larger core sample while retaining the same hole, low fluid pressure, and robust inner and outer. Q TK systems are offered in the A, B, and N sizes.
NQTK also known as NQ2
Q-wireline-3 wireline coring system Q 3
The Q 3 wireline coring systems consist of the same groups as the Q and QTK but utilize a third tube called an inner-tube liner or split tube. The liner is placed inside the inner-tube. This system enables integral core recovery when drilling coal, clay bearing, or highly fractured formations. The liner, or spit tube, retains the core sample in its received state for easier loading into sample trays or for storage and subsequent presentation to the geologist. The Q 3 is available in N, H and P sizes.
wireline coring system Q TT
The Q TT system is similar to the Q 3 system but includes a specialized core lifter case and bit. These components enable change in the water flow by creating a seal which routes water flow away from the inner-tube further improving core recovery. The Q™ TT utilizes a specially designed piloted core lifter case that improves core recovery and reduces core washing by directing fluid flow away from the ID of the core bit. Core bits are made for a 3-tube core barrel system and require face discharge ports or deep ID waterways.
|Standard "Q" wire line bit sizes|
|Size||Hole (outside) diameter, mm||Core (inside) diameter, mm|
|Q Series Wireline Core Barrel System Sizes|
|SIZE||CORE Ø||HOLE Ø|
|AQTK||35.5 mm (1-3/8 in)||48 mm (1-7/8 in)|
|BQ||36.4 mm (1-7/16 in)||60 mm (2-3/8 in)|
|BQTK||40.7 mm (1-5/8 in)||60 mm (2-3/8 in)|
|NQ||47.6 mm (1-7/8 in)||75.7 mm (3 in)|
|NQTK (NQ2")||50.6 mm (2 in)||75.7 mm (3 in)|
|NQ3||45 mm (1-3/8 in)||75.7 mm (3 in)|
|HQ||63.5 mm (2-1/2 in)||96 mm (3-3/8 in)|
|HQ3||61.1 mm (2-3/8 in)||96 mm (3-3/8 in)|
|PQ||85 mm (3-3/8 in)||122.6 mm (4-7/8 in)|
|PQ3||83 mm (3-1/4 in)||122.6 mm (4-7/8 in)|
|Roschen Core Barrel System Sizes|
|SYSTEM||CORE Ø||HOLE Ø|
Craelius Core Barrel
Longyear Core Barrel
Boart Longyear Core Barrel
Secoroc Core Barrel
Atlas Copco Core Barrel
Wireline Core Barrel
AQTK Core Barrel
BQ Core Barrel
NQ Core Barrel
HQ Core Barrel
PQ Core Barrel
NMLC Core Barrel
HMLC Core Barrel
BWG Core Barrel
NWG Core Barrel
HWG Core Barrel
AQWL Core Barrel
BQWL Core Barrel
NQWL Core Barrel
HQWL Core Barrel
PQWL Core Barrel
SQWL Core Barrel
Double Tube Core Barrel
Metric Core Barrel
T2-66 Core Barrel
T2-76 Core Barrel
T2-86 Core Barrel
T2-101 Core Barrel
T6-76 Core Barrel
T6-86 Core Barrel
T6-101 Core Barrel
T6-116 Core Barrel
T6-146 Core Barrel
WT SERIES CORE BARRELS:
BWT SERIES CORE BARRELS
NWT SERIES CORE BARRELS
HWT SERIES CORE BARRELS
PWT SERIES CORE BARRELS
WM SERIES CORE BARRELS:
AXM/AWM SERIES CORE BARRELS
AXM SERIES CORE BARRELS
AWM SERIES CORE BARRELS
BWM SERIES CORE BARRELS
NWM SERIES CORE BARRELS
HWM SERIES CORE BARRELS
WG SERIES CORE BARRELS:
BWG SERIES CORE BARRELS
NWG SERIES CORE BARRELS
HWG SERIES CORE BARRELS
WF SERIES CORE BARRELS:
NWF SERIES CORE BARRELS
HWF SERIES CORE BARRELS
BWL Core Barrel
NWL Core Barrel
HWL Core Barrel
PWL Core Barrel
