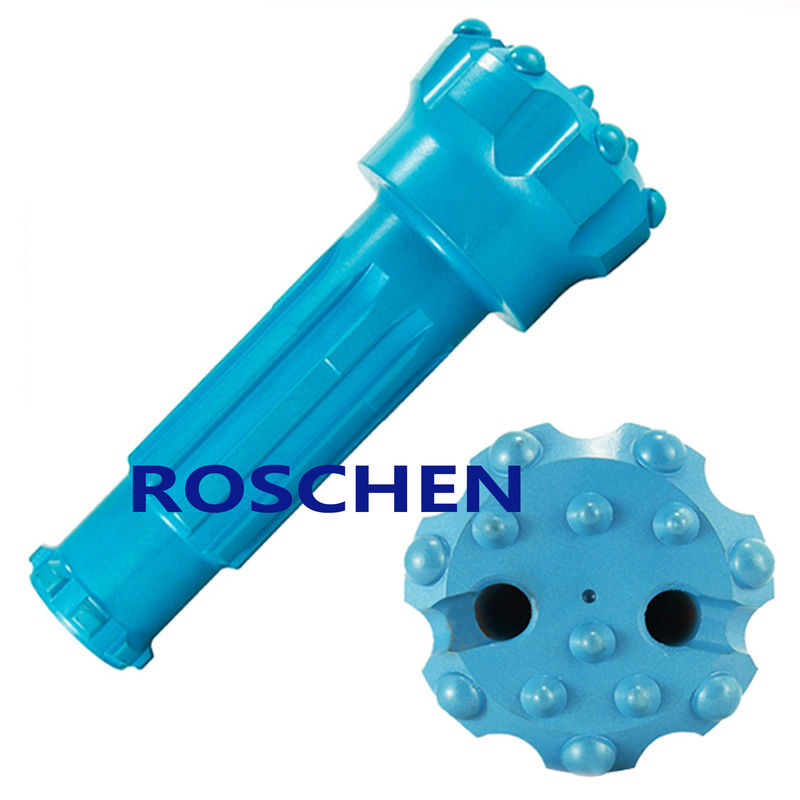

COP 32 90mm Button Bits , Cop32-90mm DTH Hammer Button Bit For Rock Drilling

1-5 pcs
MOQ
Negotiate
Price
COP 32 90mm Button Bits , Cop32-90mm DTH Hammer Button Bit For Rock Drilling
Features Gallery Product Description Request A Quote
Features
Specifications
Name: COP 32 90mm Button Bits
Size: COP 32 115mm Button Bits
Spec.: COP 32 127mm Button Bits
Model: Cop32-90mm DTH Hammer Button Bit For Rock Drilling
Processing: Forging
Button Bits Supplier: COP Button Bits Manufacturers And Supplier China
COP Button Bits: China Cop32 DTH Bits 85mm, 90mm, 95mm, 102mm
COP Series Bits: Cop32 85mm, Cop32 90mm, Cop32 95mm, Cop100mm DTH Bits
Secoroc Button Bits: Secoroc Rock Drilling Tools Product Catalogue
COP Bit Size: Cop 32 Dth Drill Bit Suppliers, All Quality Cop 32 Dth Drill Bit Suppliers
Series: Cop 32 Dth Drill Bit
Cop Series Bits: Cop 32 Dth Drill Bit Suppliers Directory
High Light:

COP 32 90mm Button Bits

,

COP54 DTH Hammer Bit

,

DHD 360 DTH Bit

Basic Infomation
Place of Origin: GERMANY
Brand Name: ROSCHEN
Certification: ISO
Model Number: COP 32
Payment & Shipping Terms
Packaging Details: Poly wooden box
Supply Ability: 100000 pcs
Product Description


COP 32 90mm button bits



 China Cop32-90mm DTH Hammer Button Bit for Rock Drilling



Product Name: DTH drill bits
Description: DTH drill bits are used for blast hole drilling and water well drilling projects.
Working with DTH hammer, mainly applied in Mining,
Marble quarry or well drilling and other construction projects.
Material: High quality carbide + High quality carbon steel
MOQ: 5pcs
Compatibility Series: COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc



Specification: Diameter: (mm) Weight: (kg)
Low air pressure DTH bits CIR type 68 ~ 200 2.6 ~ 48
Middle air pressure BR & COP type 76 ~ 110 3.8 ~ 15
3 inch high Air pressure DTH bits 85 / 90 / 95 / 100 / 105 4.2 ~ 5.5
4 inch high Air pressure DTH bits 105 / 110 / 115 / 120 / 127 9 ~ 12
5 inch high Air pressure DTH bits 133 / 140 / 146 / 152 / 165 15 ~ 18.5
6 inch high Air pressure DTH bits 152 / 165 / 178 / 190 / 203 26 ~ 36
8 inch high Air pressure DTH bits 195 / 203 / 216 / 254 / 305 33 ~ 95



ROSCHEN DTH Bits Specifications
Hammer Size Bits diameter Shank ROSCHEN CODE
Metric Inch
1" 64mm-70mm 2 1/2"-2 3/4" BR1 ROS 11
2" 70mm-95mm 2 3/4"-3 3/4" MACH20/BR2 ROS 22
3" 90mm-102mm 3 1/2"-4" COP32/COP34/MACH303 ROS 32
M30/DHD3.5/BR3 ROS 34
4" 105mm-152mm 4 1/8"-6" COP44/DHD340/MACH44 ROS 42
SD4/M40/QL40 ROS 44
5" 133mm-165mm 5 1/4"-6 1/2" COP54/DHD350R/MACH50 ROS 52
SD5/M50/QL50/BR5 ROS 54
6" 152mm-254mm 4 1/8"-10" COP64/DHD360/SD6 ROS 62
M60/QL60/Bulroc BR6 ROS 64
8" 203mm-330mm 8"-13" COP84/DHD380/SD8 ROS 82
QL80/M80/M85 ROS 84
10" 254mm-380mm 10"-15" SD10 ROS 100
NUMA100
12" 305mm-508mm 12"-20" DHD1120/SD12 ROS 120
NUMA120/NUMA125
Notes:
Metzke, Remet thread is available!
Any special size of DTH bits will be available by requests.



Description:

  1. Made from premium quality nickel-alloy steel 25SiMnCrNi2MoVA for increased durability and wear characteristics, and YK 05 tungsten carbide as same grade as internationally well-known brand
  2. Apply "hot (thermal) -insertion" processing procedure to insert the buttons as same as internationally well-known brand
  3.  Entire CNC processing procedure ensure the quality consistency and reliable.
  4.  Military grade requirements of heat-treatment guarantee durability, Specific heat treatment standards and special "stress relief" processes ensure consistent performance.
  5. Designed for maximum performance and hole cleaning ability and high penetration rate.

Main Products:

  1. 1-12 inch middle-low/high air pressure DTH hammers & bits, Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling, Eccentric overburden drilling Equipment
  2. Hole opener bit
  3. Rock thread bit (R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60)
  4. Extension Rod, M/F Rod, M/m Rod, Drift Rod,
  5. Shank adapter, coupling sleeves and all kinds of adapters

Advantages:

Compared with the oversea brands, our advantages are bellowing:

  1. Our products can match over 95% against the original products
  2. Price are competitive against the famous brands and best quality against the small factory

About Us:

1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 50 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year's professional working experience.
4. Rock drilling tools are exported throughout the global market.



Roschen DTH bits are interchangeable with Atlas Copco's COP32 34 44 54 64 84,
Ingersoll-Rand 's DHD3.5,DHD3.5HD, DHD 340A , DHD350R, DHD 360, DHD380
QL40, QL50, QL60, QL80, COP32, COP34, COP44, COP54, COP64, COP84, Mission 60, Mission 80, Mission 10, SD8, SD10, Mincon, Mach, Numa, etc.



Cop 32 Dth Drill Bit, Cop 32 Dth Drill Bit Suppliers Directory, drilling bits ,dth bit ,pdc drill bit, Drill Bit Manufacturers

Cop 32 Dth Drill Bit, Cop 32 Dth Drill Bit Suppliers Directory - Find variety Cop 32 Dth Drill Bit Suppliers, Manufacturers, Companies from around the World at drilling bits, dth bit, pdc drill bit, Drill Bit
