Down The Hole Drilling
>
|
| Place of Origin | China |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | DHD360 |
DHD 360 / COP 64 6 inch DTH hammer Down The Hole Drilling for water well
6" DTH hammer: DHD 360 / COP 64, COP 62, QL 60, SD 6, Mission 60, XL 6 for water well drilling
DTH hammer, DHD hammer, COP hammer, QL hammer, SD hammer, Mission hammer, BR Hammer, Halco hammer
3" DTH hammer: DHD 3.5, COP 34, COP 32, Mission 30, BR 3, Mach 303,
4" DTH hammer: DHD 340/COP 44, COP 42, QL 40, SD 4, Mission 40, XL 4, Mach 44,
5" DTH hammer: DHD 350 / COP 54, COP 52, QL 50, SD 5, Mission 50, XL 5,
6" DTH hammer: DHD 360/ COP 64, COP 62, QL 60, SD 6, Mission 60, XL 6,
8" DTH hammer: DHD380, QL 80, SD 8, Mission 80
Specifications:
1. Fast Penetration
2. Durability
3. Long Life
4. High Air Pressure
5. Economic
Packaging Details:Inner package with cartons,outer package with wooden cases.
Technical Parameters:
| Description | Product Code | Bit Shank | Thread Connection | Outisde Dia(mm) | Length without Bit(mm) | Weight (kg) | Flat Wrench (mm) | Rec. Hole Size (mm) |
| RS600 | 630000 | RS600 | API 8 5/8' REG PIN | 600 | 2296 | 4180 | 720-1000 | |
| Working Pressure (Bar) | Impact Frequency at 17 bar(Hz) | Normal Axial Pressure | Remmended Rotation Speed(mm) | Air Consumption(m3/min) | ||||
| 17-24 | 14 | 42 | 30-40 | 14 Bar 67.6 | 21 Bar 78.4 | 24 Bar 92.8 | ||
Functions:
| Product Name: | DTH hammer | ||||||
| Description: | dth hammer were used for blast hole drilling and water well drilling project. | ||||||
| Working with DTH drilling pipe and DTH drill bit, mainly applied in Mining, | |||||||
| Marble quarry or well drilling and other construction projects. | |||||||
| Quality level: | 100% similarity to COP/SD/MISSION/QL/BR/DHD etc famous brand | ||||||
| MOQ: | 5pcs | ||||||
| Series: | COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc | ||||||
| Specification: | Weight (kg) | External Diameter (mm) | Connection thread | Hole rang (mm) | Impact rate | Recommended rotation speed | |
| 3inch DTH hammer | 24.5 | 81 | API 2 3/8” Reg | 90~110 | 28Hz (at 17 bar) | 28 r/min | |
| COP34/QL30 | |||||||
| 4 inch DTH hammer | 39.2 | 99 | API 2 3/8” Reg | 110~150 | 27Hz (at 17 bar) | 25~40 r/min | |
| COP44/DHD340 | |||||||
| 5 inch DTH hammer | 71.5 | 125 | API 2 3/8” or API 3 1/2” Reg | 135~165 | 25Hz (at 17 bar) | 20~30 r/min | |
| COP54/Mission 50 | |||||||
| 6 inch DTH hammer | 98 | 142 | API 3 1/2” Reg | 152~216 | 23Hz (at 17 bar) | 15~25 r/min | |
| COP64/QL60 | |||||||
| 8 inch DTH hammer | 188 | 180 | API 4 1/2” Reg | 203~305 | 20Hz (at 17 bar) | 15~25rmin | |
| COP84/SD8 | |||||||

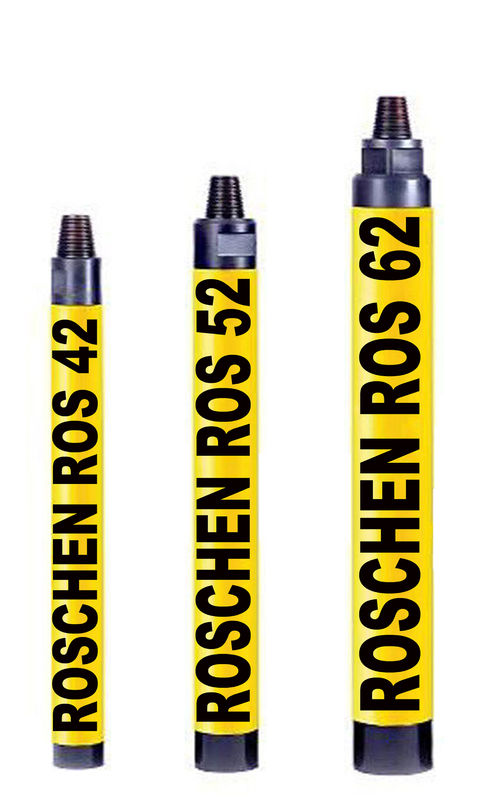

DTH hammer is also called Down The Hole Hammer or Down Hole Hammer.
ROSCHEN can supply you top quality and cheap price DTH hammers with professional manufacturing experience in DTH hammer production which strictly matches with API standard.
ROSCHEN DTH hammer chuck connection are suitable for BR1,BR2,BR3 etc.
Advantages:
1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special
inner structure of DTH hammer designed according to advanced rock drilling theory.
2.Unique design to maximize productivity and longest service life of DTH hammer due to high quality raw materials and know-how heat treatment process.
3. Low problem rate and easy to maintenance due to simple, reliable inner structure of hammer.
4. Interchangeable with DTH bit, drill pipe and easy assemble and disassemble.
| ROSCHEN DTH Hammers Specifications | |||||||
| Hammer Size | Bit Shank | ROSCHEN Code | Connection Thread | Suitable bit | Working pressure | Air consumption | |
| 2" | BR2 | ROS 11 ROS 22 |
RD50 box | ￠70-￠90mm | 0.7-1.75Mpa | 0.7Mpa | 4.5m3/min |
| 1.0Mpa | 4m3/min | ||||||
| 1.4Mpa | 5m3/min | ||||||
| 3" | DHD3.5 | ROS 32 | API 2 3/8" Reg | ￠90-￠110mm | 1.0-1.5Mpa | 1.0Mpa | 4.5m3/min |
| COP32/COP34 | |||||||
| M30 | 1.5Mpa | 9m3/min | |||||
| 4" | DHD340 | ROS 34 | API 2 3/8" Reg | ￠110-￠135mm | 1.0-2.5Mpa | 1.0Mpa | 6m3/min |
| COP44 | |||||||
| QL40 | |||||||
| SD4 | 1.8Mpa | 10m3/min | |||||
| M40 | 2.4Mpa | 15m3/min | |||||
| 5" | DHD350 | ROS 52 ROS 54 |
API 2 3/8"Reg/API 3 1/2" Reg | ￠135-￠155mm | 1.0-2.5Mpa | 1.0Mpa | 9m3/min |
| COP54 | |||||||
| QL50 | |||||||
| SD5 | 1.8Mpa | 15m3/min | |||||
| M50 | 2.4Mpa | 23m3/min | |||||
| 6" | DHD360 | ROS 62 ROS 64 |
API 3 1/2" Reg | ￠155-￠190mm | 1.0-2.5Mpa | 1.0Mpa | 10m3/min |
| COP64 | |||||||
| QL60 | |||||||
| SD6 | 1.8Mpa | 20m3/min | |||||
| M60 | 2.4Mpa | 28.5m3/min | |||||
| 8" | DHD380 | ROS 82 ROS 84 |
API 4 1/2" Reg | ￠195-￠254mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
| COP84 | |||||||
| QL80 | 1.8Mpa | 26m3/min | |||||
| SD8 | 2.4Mpa | 34m3/min | |||||
| M80/M85 | |||||||
| 10" | SD10 | ROS 100 | API 6 5/8" Reg | ￠254-￠311mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
| Numa100 | 1.8Mpa | 40m3/min | |||||
| ROS 100 | 2.4Mpa | 55m3/min | |||||
| 12" | DHD1120 | ROS 120 | API 6 5/8" Reg | ￠305-￠445mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| SD12 | 1.8Mpa | 56m3/min | |||||
| Numa120 | 2.4Mpa | 78m3/min | |||||
| Notes: Any special size of DTH bits will be available by requests. | |||||||
| Metzke, Remet thread is available! | |||||||
For more information, please contact:
ROSCHEN GROUP LIMITED
Skype: ROSCHEN.TOOL , ROSCHEN_GROUP
WeChat: +86-137 6419 5009 ; +86-135 8585 5390
WhatsApp: +86-137 6419 5009 ; +86-135 8585 5390
Email: roschen@roschen.com ; roschen@roschen.net
Website: http://www.roschen.com ; http://www.roschen.net
http://www.roschen.cn ; http://www.roschendrill.com
