DTH hammer bits Down The Hole Drilling DHD340A DHD350R High Pressure
1-10pcs
MOQ
$50-500
Price
DTH hammer bits Down The Hole Drilling DHD340A DHD350R High Pressure
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: ROSCHEN
Certification: ISO
Model Number: 3' - 10'
High Light:

DHD340A DTH hammer bits

,

DHD350R DTH hammer bits

,

Mission DTH Bits

Payment & Shipping Terms
Packaging Details: wooden box, carton box
Delivery Time: 5-15days
Supply Ability: 500 pcs per month
Specifications
Model: Down The Hole Button Bits
Name: Mission DTH Bits
Drilling: Down The Hole Drilling
Use: Water Well Drilling, Foundation Drilling
Materials: Carbon Steel And Tungsten Carbide Buttons
Usage: Atlas Copco DTH Button Bits
Type: DTH Hammer Button Bits
Machine: Crawler Drill Rig
Hammer Name: Quantum Leap Down The Hole Hammer
Product Description

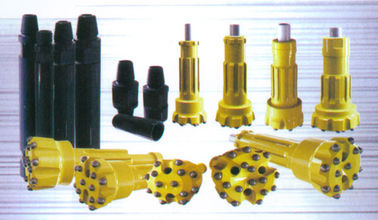

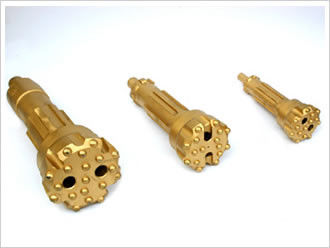

DTH hammer bits Down The Hole Drilling DHD340A DHD350R High Pressure


3" DTH hammer bits (90mm - 105mm), shanks : DHD 3.5, COP 34, COP 32, Mission 30, BR 3, Mach 303,

4" DTH hammer bits (105mm- 130mm), shanks: DHD 340/COP 44, COP 42, QL 40, SD 4, Mission 40, XL 4, Mach 44,

5" DTH hammer bits (130mm- 152mm), shanks: DHD 350/COP 54, COP 52, QL 50, SD 5, Mission 50, XL 5,

6" DTH hammer bits (152mm- 171mm), shanks: DHD 360/ COP 64, COP 62, QL 60, SD 6, Mission 60, XL 6,

8" DTH hammer bits (200mm- 305mm), shanks: DHD380, QL 80, SD 8, Mission 80, COP 84;


Features:


1. For DTH Bits, Various low pressure and high pressure DTH bits are available.

2. Low pressure DTH Bits diameter ranges from 66mm to 205mm, are used to equip with our JQ series.
3. Low pressure hammers. Other low pressure DTH bits are available too upon customer's shank drawing or samples.

4. High pressure DTH Bits diameter ranges from 76mm to 305mm



Specifications:


DHD340A, DHD350R, DHD360, DHD380;

Cop32, Cop34, Cop44, Cop54, Cop64, Cop84;

Mission 40, Mission 50, Mission 60, Mission80;

SD4, SD5, SD6, SD8;

QL40, QL50, QL60, QL80;

BR2, BR3. ….


DTH Button Bits Specifications:


ROSCHEN DTH Bits Specifications
Hammer Size Bits diameter Shank ROSCHEN CODE
Metric Inch
1" 64mm-70mm 2 1/2"-2 3/4" BR1 ROS 11
2" 70mm-95mm 2 3/4"-3 3/4" MACH20/BR2 ROS 22
3" 90mm-102mm 3 1/2"-4" COP32/COP34/MACH303 ROS 32
M30/DHD3.5/BR3 ROS 34
4" 105mm-152mm 4 1/8"-6" COP44/DHD340/MACH44 ROS 42
SD4/M40/QL40 ROS 44
5" 133mm-165mm 5 1/4"-6 1/2" COP54/DHD350R/MACH50 ROS 52
SD5/M50/QL50/BR5 ROS 54
6" 152mm-254mm 4 1/8"-10" COP64/DHD360/SD6 ROS 62
M60/QL60/Bulroc BR6 ROS 64
8" 203mm-330mm 8"-13" COP84/DHD380/SD8 ROS 82
QL80/M80/M85 ROS 84
10" 254mm-380mm 10"-15" SD10 ROS 100
NUMA100
12" 305mm-508mm 12"-20" DHD1120/SD12 ROS 120
NUMA120/NUMA125
Notes: Any special size of DTH bits will be available by requests.
Metzke, Remet thread is available!


DTH Hammer Specifications:



ROSCHEN DTH Hammers Specifications
Hammer Size Bit Shank ROSCHEN Code Connection Thread Suitable bit Working pressure Air consumption
2" BR2 ROS 11 ROS 22 RD50 box ¢70-¢90mm 0.7-1.75Mpa 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" DHD3.5 ROS 32 API 2 3/8" Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
COP32/COP34
M30 1.5Mpa 9m3/min
4" DHD340 ROS 34 API 2 3/8" Reg ¢110-¢135mm 1.0-2.5Mpa 1.0Mpa 6m3/min
COP44
QL40
SD4 1.8Mpa 10m3/min
M40 2.4Mpa 15m3/min
5" DHD350 ROS 52 ROS 54 API 2 3/8"Reg/API 3 1/2" Reg ¢135-¢155mm 1.0-2.5Mpa 1.0Mpa 9m3/min
COP54
QL50
SD5 1.8Mpa 15m3/min
M50 2.4Mpa 23m3/min
6" DHD360 ROS 62 ROS 64 API 3 1/2" Reg ¢155-¢190mm 1.0-2.5Mpa 1.0Mpa 10m3/min
COP64
QL60
SD6 1.8Mpa 20m3/min
M60 2.4Mpa 28.5m3/min
8" DHD380 ROS 82 ROS 84 API 4 1/2" Reg ¢195-¢254mm 1.0-2.5Mpa 1.0Mpa 15m3/min
COP84
QL80 1.8Mpa 26m3/min
SD8 2.4Mpa 34m3/min
M80/M85
10" SD10 ROS 100 API 6 5/8" Reg ¢254-¢311mm 1.0-2.5Mpa 1.0Mpa 22m3/min
Numa100 1.8Mpa 40m3/min
ROS 100 2.4Mpa 55m3/min
12" DHD1120 ROS 120 API 6 5/8" Reg ¢305-¢445mm 1.0-2.5Mpa 1.0Mpa 30m3/min
SD12 1.8Mpa 56m3/min
Numa120 2.4Mpa 78m3/min
Notes: Any special size of DTH bits will be available by requests.
Metzke, Remet thread is available!



Details Description:

Rock Drilling Products:

Roschen have wide experience and series of high quality products as follows:

1. Button bits, connection tapered or threaded, diameter from 33mm to 127mm;

2. Cross bits, connection tapered or threaded, diameter from 28mm to 95mm;

3. Coupling sleeves, R25, R32, R38, T38, T45, T51;

4. Down the hole hammers, similar or equal DHD, COP, SD and BR etc. series hammers;

5. Down the hole bits, similar or equal DHD, COP, SD and BR etc. series bits;



Applications:



Roschen down-the-hole (DTH) hammer is a new type of valveless hammer driven by compressed air. It is the ideal rock drilling tool with advantages of large impact energy, high penetration rate, long service life, good efficiency of drilling cuttings removal, easy operation, and reliable working performance.



They are suitable to use in:


1. Drilling blasting holes, drainage and ventilating holes, center holes of raising boring, deep blasting holes in traditional drilling and blasting method of raising, pipe holes and other deep holes in all of various strength rocks in open pit and underground mining.

2. Drilling holes in road cutting and other stone constructions (e. g. ports and hydroelectric station constructions, etc.).

3. Drilling water wells, exploratory boreholes and injected holes.

This hammer can work with dry dust collection and also with wet dust removal using mixture of air and water.



The specific DTH hammers as follow:

TS series----for deep hole and super deep hole drilling

TG series----for drying drilling

TH series----for wet drilling

All our Hammers can be easily adapted to accept different types of bit shanks as COP, BR, DHD, SD, XL QL, MACH, Halco and Mission by simply changing a few basic components. Several models are available in Heavy-Duty format to suit particularly arduous and abrasive drilling conditions.



FAQ
Terms & Conditions of Ordering:
Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.

Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damage during transportation. Also we can customize package according to your special requests.

Production time:
Generally need 15-25 days

Transportation:
By air, By Express or By sea according to your requests.

1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight

2. Handling time for an order
Based on order quantity, normally it takes 20 days for production.
in 3 working days after receiving the advance payment

3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.

4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.

5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time

6. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B. Our sales team and Technical Support will response for your question within 24 hours through skype: ROSCHEN.TOOL and WhatsApp/Wechat: +86-13764195009
C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with a refund.
