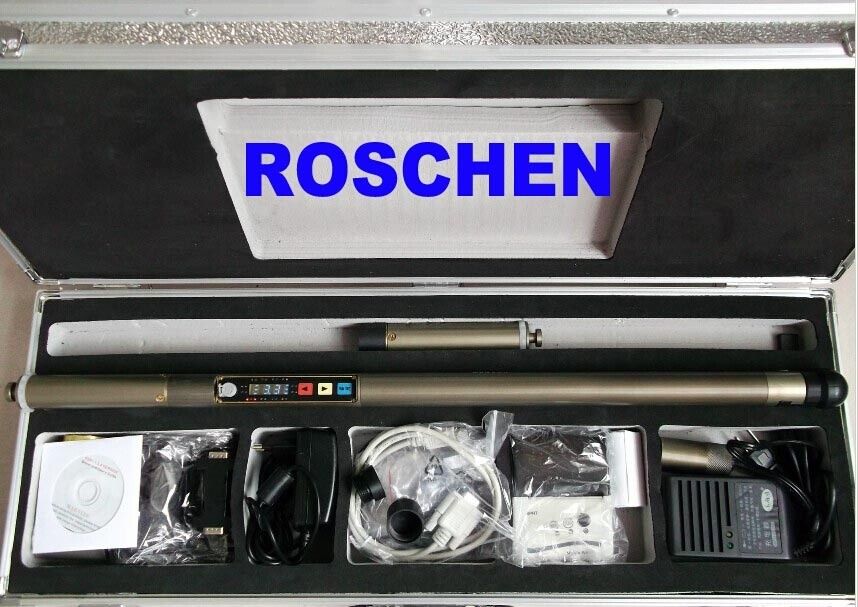

Electric Inclinometer Downhole Camera Single Shot Instruments
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Down-Hole Cameras
Series: Well Or Borehole Camera
Services: Downhole Video Camera Services
Supplier: China Downhole Camera Supplier
Item: Down Hole Technology
Type: Downhole Digital Vision
Oil Wells: Downhole Camera For Oil Wells
Well: Well Video Camera
Sale: Water Well Camera For Sale
High Light:

Inclinometer Downhole Camera

,

Single Shot Inclinometer Downhole Camera

,

Borehole Electric Downhole Camera

Basic Infomation
Place of Origin: Germany
Brand Name: ROSCHEN
Certification: ISO, CE
Model Number: RS2500
Payment & Shipping Terms
Packaging Details: Plastic packing box
Supply Ability: 10 sets stocks
Product Description



Electric Inclinometer Downhole Camera Single Shot Instruments





Product description:


1. Intuitive operator interface.

Users do not need manual can prompt completion of all the features provided by the probe according to the probe panel, simple operation, intuitive and fast.


2. Embedded powerful direct reading.

Without ground instrument with the probe can be done alone display of the parameters, settings and printing. Eliminating the need for ground instruments, greatly save the time of measurement.



3. Assured smart reminder.

The intelligent reminder feature real-time detection of various states of the probe in the work, and to detect the fault and display. For the user to ensure that the instrument is normal to go down before.



4. Acceleration sensor and magnetometer. Global advanced MEMS process.

Advantage of MEMS technology, the probe can provide high-precision measurements in harsh working environments, and other low power MEMS process the probe has a longer working time. Work environment and low power consumption are the traditional mechanical sensors can not match.



5. Unique momentary power failure from the restore function.

Completely avoided in the process of the instrument downhole, and instantaneous power interruption caused by a shock, vibration and cause the failure of the measurement. Probe to restore the original state of the work.



6. To meet a variety of practices.

Meet hanging measured with different underground protection assembly voted measured, the job requires a self-floating way.



7. Measuring range and accuracy.


Project Measuring range Measurement Accuracy Restrictions
Borehole Deviation 0~180° ±0.1° /
Magnetic Bearing 0~360° ±1° Borehole deviation≥6°
High-Side Tool Face 0~360° ±0.5° Borehole deviation≥6°
Magnetic Tool Face 0~360° ±1° Borehole deviation≤8°




8. Single multi-point integrated design.

Roschen multi-point probe by the probe panel, the choice of a single multi-point work. Actually equivalent to the user to purchase two of the probe. Single point probe measurement in drilling when drilling is completed with multi-point probe tube pulled out the well-rail. Save user investment.


9. Technical indicators:


Temperature: -40℃~125℃ (with insulation protection assembly, the maximum operating temperature of 250℃);

Vibration: frequency 10 ~ 100Hz, vibration acceleration ≤4.5g, half-sine;

Shock: Shock ≤2000g, 0.5ms;

Operating voltage: DC6V ~ DC8V;

Working current: DC5V power supply conditions, standby operating current ≤ 30mA acquisition operating current ≤150mA;

Operating temperature: -40 ~ 125℃;

Impact resistance: 2000g, 0.5ms;

Vibration resistance: 10g, 20 ~ 100Hz;




Dynamic performance:


the acceleration of the vibration conditions 3g, frequency of 20Hz, borehole deviation measurements with static measurements, borehole deviation error ≤0.2°;


Delay time range:
1 to 99 minutes, the minimum delay of 1 minute;


Interval range:
1 to 99 seconds, minimum interval of 1 second (only applicable to multi-way);


Maximum sampling points:
3600 points. (Only applicable to multi-way);


Continuous working time:
more than 20 hours (only applicable to multi-way).
