RC Hammer Reverse Circulation Drill Bits and Spare Parts Sample Tube Shrouds Epiroc RC Hammer
RC hammer
Model: Epiroc RC hammer
Keywords: Epiroc RC Hammer, Reverse Circulation Hammer, Atlas copco Reverse Circulation Hammer, Re054 Reverse Circulation Hammer, Re545 Reverse Circulation Hammer, Re543 Reverse Circulation Hammer, Re542 Reverse Circulation Hammer, Pr54 Reverse Circulation Hammer
Reverse Circulation Hammer

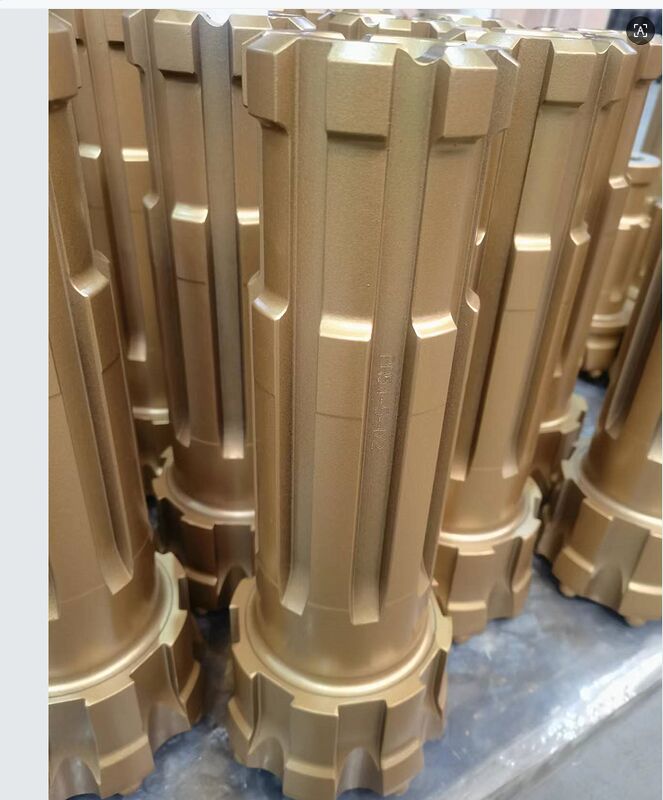

RC Hammer Reverse Circulation Drill Bits And Spare Parts Sample Tube Shrouds
RC hammer Reverse Circulation RC Drill Bit And Spare Parts Sample tube Shrouds
Reverse Circulation drilling, or RC drilling, is a method of drilling which uses dual wall drill rods that consist of an outer drill rod with an inner tube. These hollow inner tubes allow the drill cuttings to be transported back to the surface in a continuous, steady flow.
Roschen RC product specifications: RC hammers
| ROSCHEN RC Hammers Specifications |
| Hammer Size |
Hammer |
Bit Shank |
ROSCHEN Code |
Hole Range (mm) |
External Diameter (mm) |
Length (without bit) mm |
Weight (N.W.) kgs |
Connection Thread |
Working Pressure |
| 3" |
RE531 |
RE531 |
ROS RC 30 |
84-100 |
81 |
1069 |
29 |
3" Remet |
1.0-3.0Mpa |
| 3" |
RE035 |
RE035 |
ROS RC 35 |
84-105 |
85 |
1075 |
35 |
3" Remet |
1.0-3.0Mpa |
| 4 1/2" |
RE004 |
RE004 |
ROS RC 40 |
111-127 |
107 |
1252 |
52 |
3.5"-4" Remet 4" Metzke |
1.0-3.0Mpa |
| 4 1/2" |
RE540 |
RE540 |
ROS RC 45 |
111-127 |
107 |
1252 |
52 |
3.5"-4" Remet 4" Metzke |
1.0-3.0Mpa |
| 5" |
RE040 |
RE040 |
ROS RC 50 |
113-130 |
109.5 |
1191 |
57 |
3.5"-4" Remet 4" Metzke |
1.0-3.0Mpa |
| 5" |
RE542 |
RE542 |
ROS RC 50 |
113-130 |
109.5 |
1191 |
57 |
3.5"-4" Remet 4" Metzke |
1.0-3.0Mpa |
| 5" |
RE543 |
RE543 |
ROS RC 50 |
120-135 |
116 |
1191 |
62 |
3.5"-4" Remet 4" Metzke |
1.0-3.0Mpa |
| 5" |
RE545 |
RE545 |
ROS RC 50 |
122-135 |
117.5 |
1261 |
65 |
4"-4.5"Remet 4"-4.5" Metzke |
1.5-3.5Mpa |
| 5 1/2" |
RE547 |
RE547 |
ROS RC 55 |
130-146 |
124.5 |
1270 |
71 |
4.5"Remet 4.5" Metzke |
1.5-3.5Mpa |
| 5 1/2" |
RE052 |
RE052 |
ROS RC 55 |
130-146 |
124.5 |
1270 |
71 |
4.5"Remet 4.5" Metzke |
1.5-3.5Mpa |
| 5 3/4" |
RE054 |
RE054 |
ROS RC 55 |
130-146 |
124.5 |
1270 |
85 |
4.5"Remet 4.5" Metzke |
1.5-3.5Mpa |
| 5 3/4" |
RE140 |
RE140 |
ROS RC 55 |
130-146 |
124.5 |
1270 |
85 |
4.5"Remet 4.5" Metzke |
1.5-3.5Mpa |
| 5" |
PR40 |
PR40 |
ROS RC 50 |
124-142 |
120.5 |
1362 |
80.5 |
3.5"-4.5" Remet 3.5"-4.5" Metzke |
1.5-3.5Mpa |
| 5 1/2" |
PR52 |
PR52 |
ROS RC 55 |
126-142 |
121 |
1227 |
68.5 |
4"-4.5"Remet 4"-4.5" Metzke |
1.5-3.5Mpa |
| 5 1/2" |
PR52R |
PR52/PR52R |
ROS RC 55 |
130-146 |
124 |
1225 |
65 |
4"-4.5"Remet 4"-4.5" Metzke |
1.5-3.5Mpa |
| 5 1/2" |
PR54 |
PR54 |
ROS RC 55 |
135-150 |
130 |
1294 |
84.5 |
4.5"Remet 4.5" Metzke |
1.5-3.5Mpa |
| 6" |
MX5456 |
MX5456 |
ROS RC 60 |
136-150 |
132 |
1362 |
90 |
4.5"Remet 4.5" Metzke |
1.5-3.5Mpa |
| 6"~6 1/2" |
RC62/RC62R |
RC62/RC62R |
ROS RC 65 |
152-190 |
146 |
1320 |
110 |
As Request |
1.5-3.5Mpa |
| 8" |
RC82/RC82R |
RC82/RC82R |
ROS RC 80 |
190-250 |
180 |
1395 |
185 |
As Request |
1.5-3.5Mpa |
| 10" |
RC100/RC100R |
RC100/RC100R |
ROS RC 100 |
250-370 |
240 |
1528 |
328 |
As Request |
1.5-3.5Mpa |
| Notes: |
| Metzke, Remet , Fabe thread is available! |
| Any special type shank of RC Hammer will be available by requests. |
Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.
Production time:
Generally need 10-15 days
Transportation:
By air, By Express or By sea according to your requests.
