Re542 Reverse Circulation RC Hammer, Epiroc RC50 RC Hammer

Re542 Reverse Circulation RC Hammer, Atlas copco RC50 RC hammer

RC hammer

Model: RC40 RC50 R542 RE542 RE543 RE545 RE547 PR52 PR54 RC Hammer

Keywords: RC Hammers, Reverse Circulation Hammers and Bits, Reverse Circulation - Drilling Tools Australia, Atlas copco RC Hammers, RC Hammers & Bits, DTH Hammers and DTH Bits, Reverse Circulation Hammers, Rock Drill Sales, Sample Tube for RC Hammers, Mincon RC Drilling Range, Mincon Mr109 RC Hammer, Types of Hammers, a Bag of Hammers, King of Hammers, Aprons & Hammers, King of The Hammers, Felt Covered Hammers, 2017 King of The Hammers, Hammer, Rock Drill

Reverse Circulation Hammer

Reverse Circulation (RC) Drilling

Reverse circulation or RC drilling is a fast and inexpensive method of drilling, particularly compared to diamond drilling. A hundred metres or more of drilling is possible a day. RC is a commonly used drilling method in the mineral exploration industry.

The speed of RC drilling means the drill programme needs to be planned well ahead of drill schedule. The supervising geologist should also have sufficient experience to change the programme at short notice, if necessary.

RC drilling works by blasting air down an outer drill pipe using a high performance air compressor at the surface. An air-driven hammer at the end of the drill stem pounds a tungsten-iron drill bit against the rock, pulverising and breaking fragments away. The drill bit, stem and pipe continuously rotate as the rock is being hammered. Jets of air are forced up the drill hole on the side of the drill bit.

Rock dust and fragments known as cuttings or chips are carried by the strong airflow up through the middle of the bit into an inner drill pipe. The air current is so strong that rock material can be brought to the surface from hundreds of metres down. When it reaches the surface, the dust and chips are fed into a cyclone splitter that slows the air flow down and divides the sample into small and large samples.

Features:

1. Manufactured using premium hardened metals for long life;
2. Maximum material recovery, up to 98%;
3. No cross contamination of samples;
4. Handles injection of water, foam, oil, and polymers without performance loss;
5. Delivers maximum drilling under water.

Product specifications:

1) 3" RC hammers: RE531 connection thread 3" Remet
2) 3.5" RC hammers: RC3.5-Y connection thread 3" Remet
3) 4'' RC hammers: RE004 connection thread 3.5"/4" Remet; 4" Metzke
4) 4.5" RC hammers: RE542/RE543 connection thread 3.5"/4" Remet; 4" Metzke
5) 5'' RC hammers:RE545/PR40 connection thread 3.5"/4.5" Remet; 3.5"/4.5" Metzke
6) 5.5'' RC hammers:PR52/RE547/PR54 connection thread 4.5" Remet; 4.5" Metzke
7) 6'' RC hammers: RC62/RC62R

RE542 hammer technical data:


ROSCHEN RC hammer technical data:

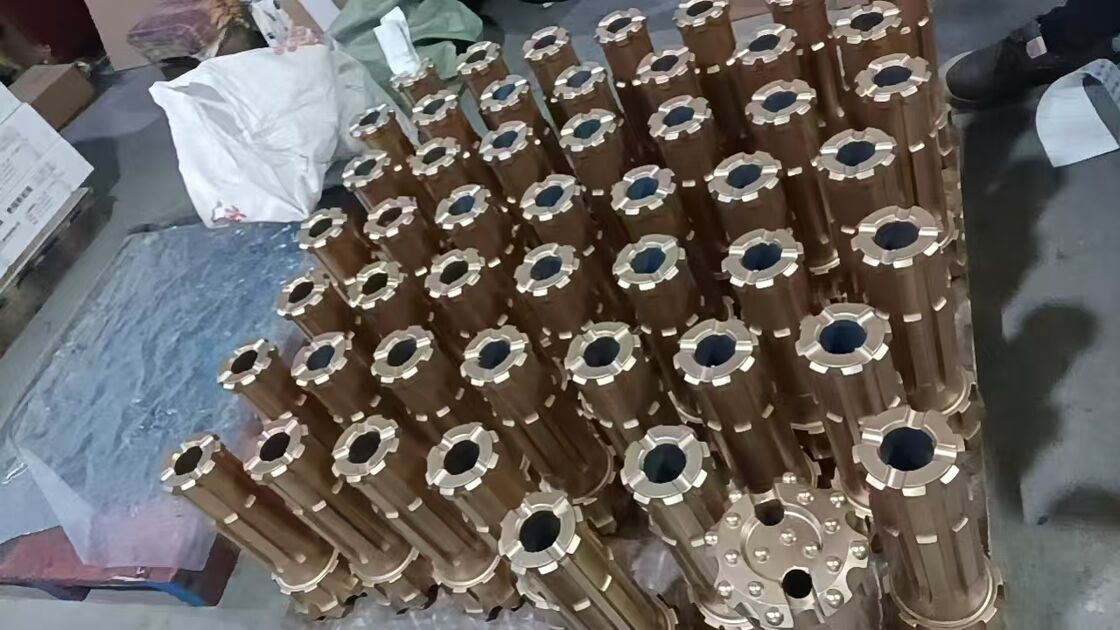

RC bits sizes available:


Specification:

1) 3" RC Bits: Dia. 86mm-102mm shank RE531
2) 4'' RC Bits: Dia. 114mm-127mm Shank type: RE004
3) 4.5" RC Bits: Dia. 121mm-133mm Shank type: RE542, RE543
4) 5'' RC Bits: Dia. 124mm-138mm Shank type: RE545, PR40
5) 5.5" RC Bits: Dia. 133mm-159mm Shank type: PR52, RE547, PR54, M5456

Other size can be upon to customer's requirements

We can also provide related products DTH hammers and bits, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.

Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.

Production time:
Generally need 15-25 days

Transportation:
By air, By Express or By sea according to your requests.

FAQ

Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.

Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.

Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.
