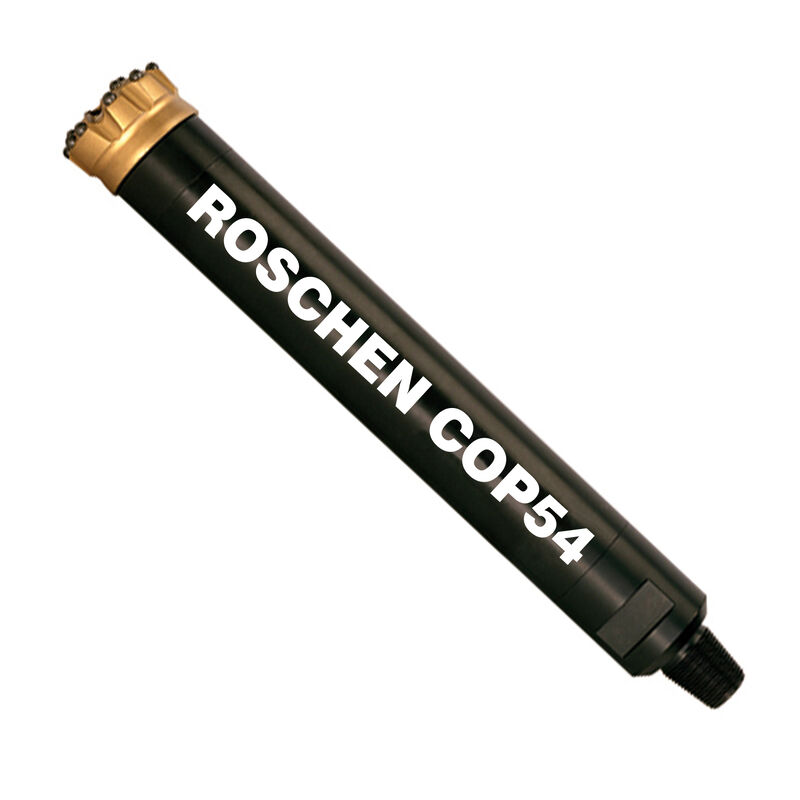

Cop54 140mm, Cop54 146mm, Cop54 152mm, Cop54 165mm DTH Bits
Keywords: DTH Hammers and Bits, Epiroc DTH Hammers, DTH Drill, Down Hole Hammer Drill, Down The Hole Hammer Bits, Hammer Drill Bits for Rock, Hammer Bits, Drill, Drill Equipments, Drilling Tool, Rock Drill, Core Drill, Drill Tools, DTH Hammer Bits, DTH Bits, DTH Hammer Bits Sale, China DTH Hammer Bits, Manufacturers of Rock Tools, DTH Bit DTH Hammer Bit, China Button Bits Rock Drilling Tools
Down The Hole Hammer bits
Model: DTH Button Bits
Bits: China DTH Bits
China: China Ql40 DTH Bits
Tools: Mission DTH Button Bits
Rock Drills: Rock Drill Button Bit
Name: Down The Hole Bit
Series: Epiroc Drill Bit DTH for Sale
Model No: Atlas Copco DTH Bits
Drilling: Down The Hole Drilling
Application: Water Well Drilling
DOWN-THE-HOLE BITS
Roschen DTH drill bits are fitted with our cemented carbide inserts, which provide you with superior life and drilling productivity.
The Roschen DTH button bit designs are well known and extensively used around the world. Whatever conditions you're dealing with, our drill bits make the job easier. They are fitted with Roschen's proprietary cemented carbide buttons, which are designed to drill further. The drill bit bodies are made from precision hardened nickel molybdenum steel, with a compound curve shape for faster and smoother cutting and easier removal of cuttings.
The bits in the new range have an optimized head length with maximized steel support for the cemented carbide buttons, deep face grooves for excellent flushing and an aggressive cutting structure.
Advantages:
1. Proprietary superior tungsten carbide ensures high quality and performance
2. Carbide grade options for long life in challenging applications
3. Face designs to maximize penetration rate and tool life
4. Optimized flushing designs to aid in cuttings removal and reduce wear
Roschen Premium Quality Button Bits:
Roschen Button Bits range covers hole diameter 3" and upwards upto 24". Roschen DTH Button Bits are available for all Major DTH Hammer Brands.
DHD-3.5, Cop-34, M-30, A34-15
Panther, DHD -14, DH4, DHD-4,DHD-34OA, Cop-42, Cop-44, Mission 40, SD-4, QL-4, Secoroc-4", Numa-4
DHD-16, DHD-160, DHD-360, QL-60, Mission 60, SD-6, Cop-62,Cop-64,Secoroc-6", Numa-6"
SD-8, DHD-380, COP-84, SECOROC-8", NUMA-8, Mission 80
SD-10, NUMA-100
SD-12, NUMA-120
Special Features:
1. Computer analysis and laboratory trials have been used to optimize the number of buttons as well as their size and positioning throughout the bit front.
2. Carbide has been carefully designed to minimize the risk of button loss and button failure
3. The design of the bit body and the frontal sludge grooves provides uniform flushing with reduces steel wash on both bit and the hammer.
4. Material processes and multiple heat treatment have focussed on achieving maximum resistance to fatigue failure.
5. Special bit designs such as Concave and Convex/CB are available on request.
Product specifications:
| For 5" hammer |
Bit Dia. |
No. |
Gauge |
Front |
Weight |
Part No. |
| DTH bits shank |
mm |
inch |
Air Holes |
Buttons |
Buttons |
(Kg) |
| DHD350R/COP54 |
133 |
5 1/4" |
2 |
7×φ16 |
6×φ14 |
15 |
DHD350-133 |
| 140 |
5 1/2" |
2 |
7×φ18 |
7×φ14 |
16 |
DHD350-140 |
| 146 |
5 3/4" |
2 |
8×φ18 |
7×φ14 |
17 |
DHD350-146 |
| 152 |
6" |
2 |
8×φ18 |
8×φ14 |
17.5 |
DHD350-152 |
| 165 |
6 1/2" |
2 |
8×φ18 |
8×φ16 |
18.5 |
DHD350-165 |
| SD5 |
133 |
5 1/4" |
2 |
7×φ16 |
6×φ14 |
15.5 |
SD5-130 |
| 140 |
5 1/2" |
2 |
7×φ18 |
7×φ14 |
16 |
SD5-140 |
| 146 |
5 3/4" |
2 |
8×φ18 |
7×φ14 |
16.5 |
SD5-146 |
| 152 |
6" |
2 |
8×φ18 |
8×φ14 |
17 |
SD5-152 |
| 165 |
6 1/2" |
2 |
8×φ18 |
8×φ16 |
19 |
SD5-165 |
| QL50 |
133 |
5 1/4" |
2 |
7×φ16 |
6×φ14 |
15.5 |
QL50-130 |
| 140 |
5 1/2" |
2 |
7×φ18 |
7×φ14 |
16 |
QL50-140 |
| 146 |
5 3/4" |
2 |
8×φ18 |
7×φ14 |
16.5 |
QL50-146 |
| 152 |
6" |
2 |
8×φ18 |
8×φ14 |
17 |
QL50-152 |
| 165 |
6 1/2" |
2 |
8×φ18 |
8×φ16 |
19 |
QL50-165 |
| Mission 50 |
133 |
5 1/4" |
2 |
7×φ16 |
6×φ14 |
12.5 |
M50-130 |
| 140 |
5 1/2" |
2 |
7×φ18 |
7×φ14 |
13.5 |
M50-140 |
| 146 |
5 3/4" |
2 |
8×φ18 |
7×φ14 |
14 |
M50-146 |
| 152 |
6" |
2 |
8×φ18 |
8×φ14 |
14.4 |
M50-152 |
| 165 |
6 1/2" |
2 |
8×φ18 |
8×φ16 |
15 |
M50-165 |
ROSCHEN hammer bit technical data:
| ROSCHEN DTH Bits Specifications |
| Hammer Size |
Bits diameter |
Shank |
ROSCHEN CODE |
| Metric |
Inch |
| 1" |
64mm-70mm |
2 1/2"-2 3/4" |
BR1 |
ROS 11 |
| 2" |
70mm-95mm |
2 3/4"-3 3/4" |
MACH20/BR2 |
ROS 22 |
| 3" |
90mm-102mm |
3 1/2"-4" |
COP32/COP34/MACH303 |
ROS 32 |
| M30/DHD3.5/BR3 |
ROS 34 |
| 4" |
105mm-152mm |
4 1/8"-6" |
COP44/DHD340/MACH44 |
ROS 42 |
| SD4/M40/QL40 |
ROS 44 |
| 5" |
133mm-165mm |
5 1/4"-6 1/2" |
COP54/DHD350R/MACH50 |
ROS 52 |
| SD5/M50/QL50/BR5 |
ROS 54 |
| 6" |
152mm-254mm |
4 1/8"-10" |
COP64/DHD360/SD6 |
ROS 62 |
| M60/QL60/Bulroc BR6 |
ROS 64 |
| 8" |
203mm-330mm |
8"-13" |
COP84/DHD380/SD8 |
ROS 82 |
| QL80/M80/M85 |
ROS 84 |
| 10" |
254mm-380mm |
10"-15" |
SD10 |
ROS 100 |
| NUMA100 |
| 12" |
305mm-508mm |
12"-20" |
DHD1120/SD12 |
ROS 120 |
| NUMA120/NUMA125 |
| Notes: |
| API, Metzke, Remet thread is available! |
| Any special size of DTH bits will be available by requests. |
Shank can be available:
1), Dia. 64mm-70mm shank Bulroc BR1
2), Dia. 70mm-95mm shank Halco MACH20, Bulroc BR2
3), Dia. 90mm-102mm shank COP32, COP34, Halco MACH303, M30, DHD3.5, Bulroc BR3
4), Dia. 105mm-152mm shank COP44, DHD340, Halco MACH44, SD4, M40, QL40, Bulroc BR4
5), Dia. 135mm-165mm shank COP54, DHD350R, COP54, Halco MACH50, SD5, M50, QL50, Bulroc BR5
6), Dia. 152mm-254mm shank COP64, DHD360, SD6, M60, QL60, Bulroc BR6
7), Dia. 203mm-330mm shank COP84, DHD380, SD8, QL80
8), Dia. 254mm-380mm shank SD10, Numa100
9), Dia. 305mm-508mm shank DHD1120, SD12, N120, N125
10), Dia. 405mm-864mm shank SD15, SD18
11), VKP80, VKP95, CIR90, CIR100, CIR110, CIR150, CIR200...
We can also provide related products DTH hammers, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc
Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.
Production time:
Generally need 15-25 days
Transportation:
By air, By Express or By sea according to your requests.
FAQ
Q: Are you a manufacturer or trading company ?
A: We are a specialized manufacturer.
Q: How about the delivery terms ?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.
Q: How about discount ?
A: Price is based on products and order quantity.
Q: Do you accept sample order?
A: Yes sure, please contact us for details.
Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.
