| Place of Origin | China |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | 6" |

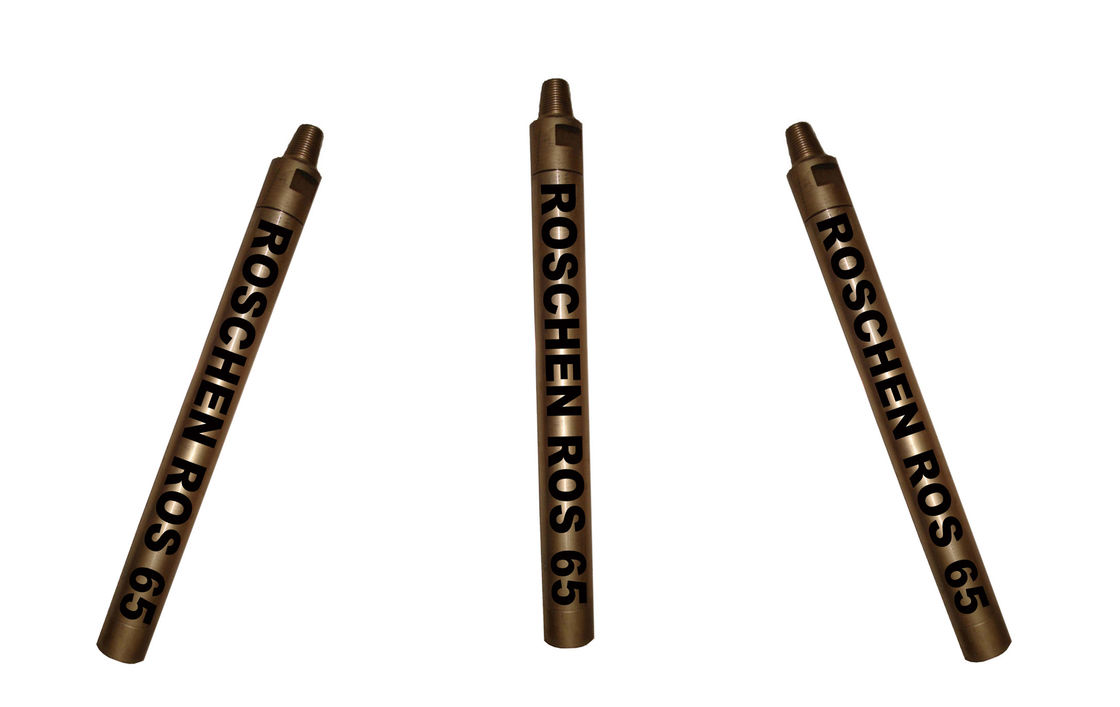

6" DTH Hammers for Mining, Water Well, Construction, and Geo-Thermal Drilling applications
DTH Hammers
Stone Krusher
Fast Penetrating, High Pressure Hammer. COMPETIVELY PRICED!
Designed for Mining, Water Well, Construction, and Geo-Thermal Drilling applications.
| Size | Series |
| 4″ | SD4, DHD340A |
| 5″ | SD5, DHD350R |
| 6″ | SD6, DHD360 |
| 8″ | SD8, DH380 |
| 10″ | SD10 |
| 12″ | SD12, IR112 |
| 15″ | SD15 |
| 24″ | N240 (call for more information) |
| 30″ | SK30 (call for more information) |
Stone Warrior
Hard Hitting, High Pressure Hammer. Premium Quality, Innovative Design
Designed for Oil & Gas applications.
| Size | Series |
| 6″ | QL60 |
| 8″ | QL80 |
| 10″ | SD10 |
| 12" | QL120 |
Our Patented DTH "CATCHER" Retainer System:
1. Designed to prevent shanked bit head loss on hammer bits
2. Fits 6" - 8" - 10" - 12" - 15" Hammers
3. Most industry shanks available
4. Fast installation and removal on hammer and bit
5. Locking collar nitrided for extended use, saving you money
6. No cables, pins, or other small parts to keep up with as found in some competitor systems
6" DTH Hammers for Mining / Water Well / Construction / Geo - Thermal Drilling
| ROSCHEN DTH Hammers Specifications | |||||||
| Hammer Size | Bit Shank | ROSCHEN Code | Connection Thread | Suitable bit | Working pressure | Air consumption | |
| 2" | BR2 | ROS 11 ROS 22 |
RD50 box | ￠70-￠90mm | 0.7-1.75Mpa | 0.7Mpa | 4.5m3/min |
| 1.0Mpa | 4m3/min | ||||||
| 1.4Mpa | 5m3/min | ||||||
| 3" | DHD3.5 | ROS 32 | API 2 3/8" Reg | ￠90-￠110mm | 1.0-1.5Mpa | 1.0Mpa | 4.5m3/min |
| COP32/COP34 | |||||||
| M30 | 1.5Mpa | 9m3/min | |||||
| 4" | DHD340 | ROS 34 | API 2 3/8" Reg | ￠110-￠135mm | 1.0-2.5Mpa | 1.0Mpa | 6m3/min |
| COP44 | |||||||
| QL40 | |||||||
| SD4 | 1.8Mpa | 10m3/min | |||||
| M40 | 2.4Mpa | 15m3/min | |||||
| 5" | DHD350 | ROS 52 ROS 54 |
API 2 3/8"Reg/API 3 1/2" Reg | ￠135-￠155mm | 1.0-2.5Mpa | 1.0Mpa | 9m3/min |
| COP54 | |||||||
| QL50 | |||||||
| SD5 | 1.8Mpa | 15m3/min | |||||
| M50 | 2.4Mpa | 23m3/min | |||||
| 6" | DHD360 | ROS 62 ROS 64 |
API 3 1/2" Reg | ￠155-￠190mm | 1.0-2.5Mpa | 1.0Mpa | 10m3/min |
| COP64 | |||||||
| QL60 | |||||||
| SD6 | 1.8Mpa | 20m3/min | |||||
| M60 | 2.4Mpa | 28.5m3/min | |||||
| 8" | DHD380 | ROS 82 ROS 84 |
API 4 1/2" Reg | ￠195-￠254mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
| COP84 | |||||||
| QL80 | 1.8Mpa | 26m3/min | |||||
| SD8 | 2.4Mpa | 34m3/min | |||||
| M80/M85 | |||||||
| 10" | SD10 | ROS 100 | API 6 5/8" Reg | ￠254-￠311mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
| Numa100 | 1.8Mpa | 40m3/min | |||||
| ROS 100 | 2.4Mpa | 55m3/min | |||||
| 12" | DHD1120 | ROS 120 | API 6 5/8" Reg | ￠305-￠445mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| SD12 | 1.8Mpa | 56m3/min | |||||
| Numa120 | 2.4Mpa | 78m3/min | |||||
| Notes: Any special size of DTH bits will be available by requests. | |||||||
| Metzke, Remet thread is available! | |||||||
FAQ
Terms & Conditions of Ordering:
Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damage during transportation. Also we can customize package according to your special requests.
Production time:
Generally need 15-25 days
Transportation:
By air, By Express or By sea according to your requests.
1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2. Handling time for an order
Based on order quantity, normally it takes 20 days for production.
in 3 working days after receiving the advance payment
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
6. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B. Our sales team and Technical Support will response for your question within 24 hours
C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with a refund.
