Secoroc RC Bits and Shrouds For RE040, RE542/543, RE545 Hammers

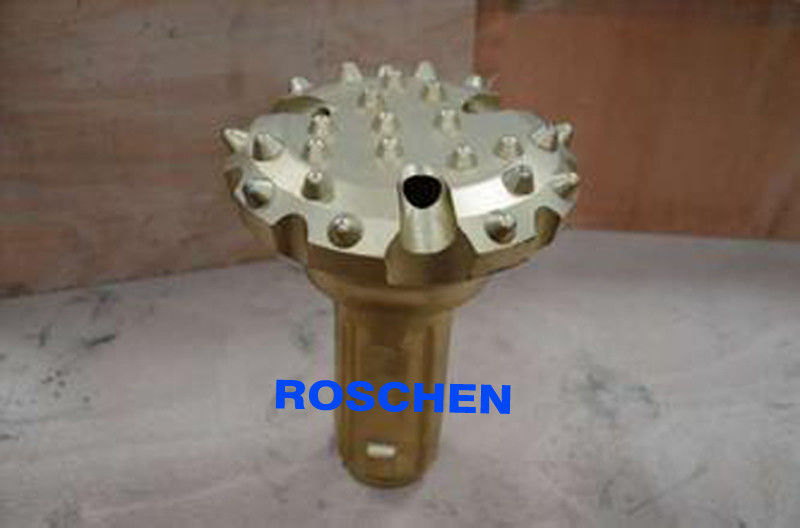

RC bits
REVERSE CIRCULATION BITS
Roschen reverse circulation bits can instead of Secoroc COP RC bits, Boart Longyear
RC bits basis on the quality grade.
Roschen Reverse Circulation Hammer bits quality can be replaced of by Boart Longyear
, atlas copco, halco, mincon, numa basis on the quality grade, and in the after sales service.
Roschen range of high quality Reverse Circulation RC drill bits were specifically designed to work with our RC Hammers. Because of our drill bit sealing mechanism, sample contamination problems are not an issue. Using our unique 12 spline shank design, these RC Bits provide outstanding performance and reliability.
Features:
1. Using higher grade carbides for longer life;
2. Minimizes hole erosion in fragile formations
3. Drills faster through soft formations with less blockages
4. Drills straighter through consolidated and unconsolidated formations
ROSCHEN RC Hammers Specifications | |||||||||
Hammer Size | Hammer | Bit Shank | ROSCHEN Code | Hole Range (mm) | External Diameter (mm) | Length (without bit) mm | Weight (N.W.) kgs | Connection Thread | Working Pressure |
3" | RE531 | RE531 | ROS RC 30 | 84-100 | 81 | 1069 | 29 | 3“ Remet | 1.0-3.0Mpa |
3" | RE035 | RE035 | ROS RC 35 | 84-105 | 85 | 1075 | 35 | 3“ Remet | 1.0-3.0Mpa |
4 1/2" | RE004 | RE004 | ROS RC 40 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
4 1/2" | RE540 | RE540 | ROS RC 45 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
5" | RE040 | RE040 | ROS RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
5" | RE542 | RE542 | ROS RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
5" | RE543 | RE543 | ROS RC 50 | 120-135 | 116 | 1191 | 62 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
5" | RE545 | RE545 | ROS RC 50 | 122-135 | 117.5 | 1261 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
5 1/2" | RE547 | RE547 | ROS RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
5 1/2" | RE052 | RE052 | ROS RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
5 3/4" | RE054 | RE054 | ROS RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
5 3/4" | RE140 | RE140 | ROS RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
5" | PR40 | PR40 | ROS RC 50 | 124-142 | 120.5 | 1362 | 80.5 | 3.5"-4.5" Remet 3.5"-4.5" Metzke | 1.5-3.5Mpa |
5 1/2" | PR52 | PR52 | ROS RC 55 | 126-142 | 121 | 1227 | 68.5 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
5 1/2" | PR52R | PR52/PR52R | ROS RC 55 | 130-146 | 124 | 1225 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
5 1/2" | PR54 | PR54 | ROS RC 55 | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
6" | MX5456 | MX5456 | ROS RC 60 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
6"~6 1/2" | RC62/RC62R | RC62/RC62R | ROS RC 65 | 152-190 | 146 | 1320 | 110 | As Request | 1.5-3.5Mpa |
8" | RC82/RC82R | RC82/RC82R | ROS RC 80 | 190-250 | 180 | 1395 | 185 | As Request | 1.5-3.5Mpa |
10" | RC100/RC100R | RC100/RC100R | ROS RC 100 | 250-370 | 240 | 1528 | 328 | As Request | 1.5-3.5Mpa |
Notes: | |||||||||
Metzke, Remet thread is available! | |||||||||
Any special type shank of RC Hammer will be available by requests. |
ROSCHEN Reverse Circulation Bits Specifications | ||||||||
RE531 RC bits | ||||||||
ROSCHEN Code: ROS RC 30 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
86 | 3 3/8 | 6x12 | 4x12 | 35 | 2 | 84 | 4.2 | RE531-86 |
89 | 3 1/2 | 8x12 | 8x12 | 35 | 2 | 87 | 4.3 | RE531-89 |
95 | 3 3/4 | 8x12 | 8x12 | 35 | 2 | 93 | 4.6 | RE531-95 |
102 | 4 | 8x12 | 8x12 | 35 | 2 | 100 | 4.9 | RE531-102 |
RE004 RC bits | ||||||||
ROSCHEN Code: ROS RC 40 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
114 | 4 1/2 | 8x14 | 6x14 | 35 | 2 | 112 | 11.5 | RE004-114 |
118 | 4 5/8 | 8x14 | 6x14 | 35 | 2 | 116 | 11.7 | RE004-118 |
121 | 4 3/4 | 8x14 | 6x14 | 35 | 2 | 119 | 12 | RE004-121 |
127 | 5 | 8x14 | 8x14 | 35 | 2 | 125 | 12.4 | RE004-127 |
RE542 | ||||||||
ROSCHEN Code: ROS RC 50 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
121 | 4 3/4 | 8x14 | 6x14 | 35 | 2 | 119 | 10.6 | RE542-121 |
124 | 4 7/8 | 8x14 | 8x13 | 35 | 2 | 122 | 10.8 | RE542-124 |
127 | 5 | 8x14 | 8x14 | 35 | 2 | 125 | 11 | RE542-127 |
130 | 5 1/8 | 8x14 | 10x14 | 35 | 2 | 128 | 11.3 | RE542-130 |
RE543 | ||||||||
ROSCHEN Code: ROS RC 50 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 10.8 | RE543-124 |
127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 11 | RE543-127 |
130 | 5 1/8 | 8x14 | 10X14 | 35 | 2 | 128 | 11.3 | RE543-130 |
133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 11.8 | RE543-133 |
RE545 | ||||||||
ROSCHEN Code: ROS RC 50 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 13.3 | RE545-124 |
127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 13.5 | RE545-127 |
133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 13.8 | RE545-133 |
136 | 5 3/8 | 8x16 | 6x16+3x14 | 35 | 2 | 134 | 14.2 | RE545-136 |
PR40 RC bit | ||||||||
ROSCHEN Code: ROS RC 50 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 14.3 | PR40-124 |
127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 14.7 | PR40-127 |
133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 15.2 | PR40-133 |
138 | 5 4/9 | 8x16 | 6x16+3x14 | 35 | 2 | 136 | 15.8 | PR40-138 |
PR52 RC bit | ||||||||
ROSCHEN Code: ROS RC 55 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
133 | 5 1/4 | 8x16 | 10x14 | 35 | 2 | 131 | 11.2 | PR52-133 |
136 | 5 3/8 | 8x16 | 6x16+3x14 | 35 | 2 | 134 | 11.5 | PR52-136 |
140 | 5 1/2 | 8x16 | 6x16+3x14 | 35 | 2 | 138 | 11.9 | PR52-140 |
143 | 5 5/8 | 8x16 | 6x16+3x14 | 35 | 2 | 141 | 12.3 | PR52-143 |
RE547 RC bit | ||||||||
ROSCHEN Code: ROS RC 55 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
136 | 5 3/8 | 8x16 | 6x16+3x14 | 35 | 2 | 134 | 15.1 | RE547-136 |
140 | 5 1/2 | 8x16 | 6x16+3x14 | 35 | 2 | 138 | 15.5 | RE547-140 |
143 | 5 5/8 | 8x16 | 6x16+3x14 | 35 | 2 | 141 | 15.8 | RE547-143 |
146 | 5 3/4 | 8x16 | 6x16+3x14 | 35 | 2 | 144 | 16.3 | RE547-146 |
PR54 | ||||||||
ROSCHEN Code: ROS RC 55 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
136 | 5 3/8 | 8x16 | 6x16+3x14 | 35 | 2 | 134 | 18.2 | PR54-136 |
140 | 5 1/2 | 8x16 | 6x16+3x14 | 35 | 2 | 138 | 18.5 | PR54-140 |
143 | 5 5/8 | 8x16 | 6x16+3x14 | 35 | 2 | 141 | 18.8 | PR54-143 |
146 | 5 3/4 | 8x16 | 6x16+3x14 | 35 | 2 | 144 | 19.2 | PR54-146 |
Notes: | ||||||||
Metzke, Remet thread is available! | ||||||||
Any special size of Reverse Circulation bits will be available by requests. |
