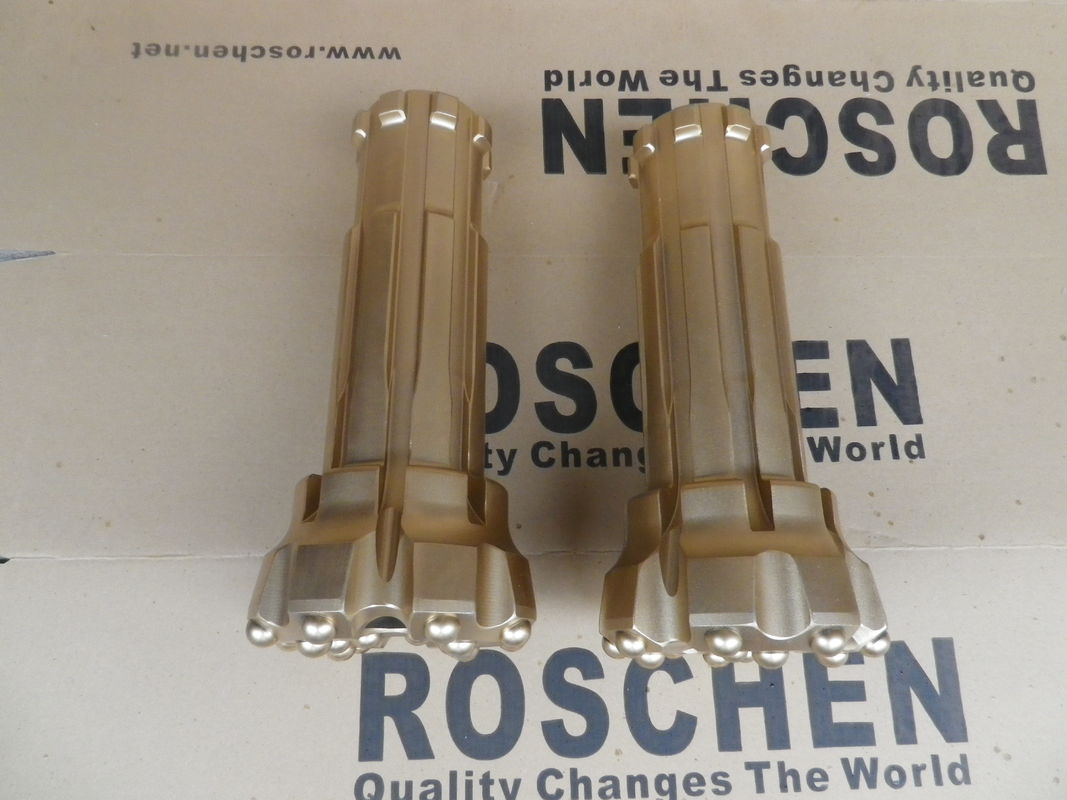

Atlas Copco Reverse Circulation Bits / RC Bits Fast Drilling Geothermal Hole Drilling
Reverse circulation hammers can in most instances carry out continuous sample collection in a fraction of the time necessary with conventional or wireline coring.
THE NEW RC400 & RC500 REVERSE CIRCULATION HAMMERS.
Product specifications:
1) 3" RC hammers: RE531
2) 4" RC hammers: RE004/RE004R; RE542
3) 5" RC hammers:RE543,RE545,RE547;PR40,PR52,PR54; MX5456
4) 6" RC hammers: RC62/RC62R
5) 8" RC hammers: RC82/RC82R
6) 10" RC hammers: RC100/RC100R
RC 50 hammer | ||||||||||||||
Description | Product No. | Product code | Thread connection | Outside diameter | Rec. hole size | Shank style | Working pressure | Length without bit, shoulder to shoulder | Weight without bit | |||||
mm | inch | mm | inch | bar | psi | mm | inch | kg | lbs | |||||
5" | ||||||||||||||
RC 50 STD | 52292273 | 9705-52-67-00 | 4 1/2" Remet Box | 130 | 5.13 | 136-165 | 5 3/8 - 6 ½ | RC 50 | 10-35 | 145-500 | 1152 | 45.4 | 72 | 158 |
RC 50 bit assortment | |||||||||||
Diameter | Product No. | Product code | No. × Button diameter, mm (inch) | Gauge/ Button angle° |
Flushing holes |
Weight approx |
|||||
mm | inch | Outer | Inner | Front | Outer | Inner | kg | lbs | |||
DROP CENTER, EXTRA FLUSHING | |||||||||||
136 | 5 3/8 | 90516434 | 10E-5136-97-7217,08-20 | 8 x 16 (5/8) | 4 x 12,7 (1/2) | 4 x 16 (5/8) | 35 | No | 18,6 | 41 | |
140 | 5 1/2 | 90516432 | 10E-5140-97-7217,08-20 | 8 x 16 (5/8) | 4 x 12,7 (1/2) | 4 x 16 (5/8) | 35 | No | 18,9 | 41 | |
143 | 5 5/8 | 90516472 | 10E-5143-97-7217,08-20 | 8 x 16 (5/8) | 4 x 12,7 (1/2) | 4 x 16 (5/8) | 35 | No | 18,9 | 41 | |
146 | 5 3/4 | 90516433 | 10E-5146-97-7217,08-20 | 8 x 16 (5/8) | 4 x 12,7 (1/2) | 4 x 16 (5/8) | 35 | No | 19,3 | 43 | |
152 | 6 | 90516558 | 10E-5152-97-7217,08-20 | 8 x 16 (5/8) | 4 x 12,7 (1/2) | 4 x 16 (5/8) | 35 | No | 19,9 | 43 | |
165 | 6 1/2 | 90516435 | 10E-5165-97-7217,08-20 | 8 x 16 (5/8) | 6 x 12,7 (1/2) | 4 x 16 (5/8) | 35 | No | 20,5 | 44 |
KEY FEATURES AND BENEFITS:
• Simple design, easy maintenance and improved reliability
• Integrated hammer and bit design for better chip removal and bit life
• Improved safety features
• Unique bit retention system as standard
• Rapidly reaches full operating pressure
• New check valve design
• 2 piece easy loading sample tube
• Solid piston construction reducing stress and improving life
• Manufactured using premium hardened metals for long life
• Maximum material recovery, up to 98%;
• No cross contamination of samples;
• Handles injection of water, foam, oil, and polymers without performance loss
