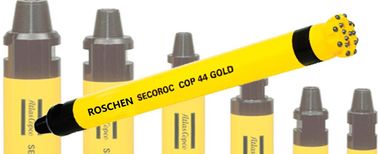

Secoroc Rock Drilling Tools Secoroc COP 44 Gold down the hole hammer

China Secoroc Rock Drilling Tools Secoroc COP 44 Gold down the hole hammer supplier
Secoroc Rock Drilling Tools Secoroc COP 44 Gold down the hole hammer supplier Secoroc Rock Drilling Tools Secoroc COP 44 Gold down the hole hammer supplier Secoroc Rock Drilling Tools Secoroc COP 44 Gold down the hole hammer supplier

Large Image :  Secoroc Rock Drilling Tools Secoroc COP 44 Gold down the hole hammer

Product Details:

Place of Origin: Germany
Brand Name: ROSCHEN
Certification: ISO
Model Number: COP44

Payment & Shipping Terms:

Minimum Order Quantity: 1-5 sets
Packaging Details: Poly wooden box
Supply Ability: 1001 sets
Contact Now
Detailed Product Description
Materials: Alloy Steel Usage: Downhole Hole Drilling
Air Pressure: 10-35 Bar Hammer Type: 3inch, 4inch
Processing Type: Forging Bits Diameter: 110~155mm

Secoroc Rock Drilling Tools Secoroc COP 44 Gold down the hole hammer



Designed for productive well, geothermal and production drilling



The new Secoroc COP 44 DTH hammer is the latest member of the successful COP Gold range. This 4" hammer offers higher penetration rate, greater reliability and lower cost per metre drilled than its predecessor.


Rated at a pressure of 35bar, the COP 44 Gold is primarily aimed at production drilling operations but is also suitable for water well and geothermal drilling. Thanks to the heavier piston and finely tuned air flow, COP 44 Gold's excellent penetration rate can only be surpassed by the TD 40.


By using a Secoroc E-kit, consisting of a casing, chuck and backhead, COP 44 Gold’s life cycle is doubled for the price of 1½ new hammers!



The new drill bits have TD 40 12-spline shafts.



These maximise the life cycle of both chucks and bits while minimising shank failures. The proven and reliable check valve protects the hammer from external water and guarantees optimum functionality.


COP 44 Gold primarily drills 110–130mm diameter holes though 140mm and 152mm drill bits are available. Guides for Symmetrix and Odex casing drilling systems are also available.





General specifications
Drill pipe connection API 2 3/8" Reg. Pin or Cubex # 24 Pin
Bit shank code / type TD 40
Length w/o bit shoulder to shoulder 961 mm 37.9 in
Length with bit extended 1089 mm 42.7 in
Length with bit retracted 1052 mm 41.2 in
Weight w/o bit 40,5 kg 89 lb
Backhead across flats 65 mm 2 9/16 in
Rec. bit size 110–130 mm 4 3/8–5 1/8 in
Outside diameter 100 mm 3 15/16 in
Piston weight 7,9 kg 15.6 lb
Maximum pressure differential 35 bar 508 psi





Secoroc COP 44 Gold
Product No. Product code Connection
89001469 9704-03-34 API 2 3/8" Reg. Pin
89001471 9704-12-34 Cubex # 24 Pin





Air consumption and impact frequency
Pressure Liter/s Strokes/min
10,5 bar/150 psi 105 1500
16 bar/230 psi 175 1890
20 bar/290 psi 240 1950
25 bar/360 psi 317 2150
30 bar/435 psi 400 2580
35 bar/508 psi 444 3000





Bits Product No. Product code Number of buttons x button diameter, mm (inch), shape
Gauge buttons Front buttons
110 mm, Flat front 90516005 100-5110-64-1210,10-20 8 x 14,5 (9/16), Spherical 7 x 12,7 (1/2), Spherical
115 mm, Flat front 90516006 100-5115-64-1210,10-20 8 x 14,5 (9/16), Spherical 8 x 12,7 (1/2), Spherical
115 mm, Flat front 90516450 100-5115-64-1228,10-20 8 x 15,8 (5/8), Semiballistic 6 x 14,5 (9/16), Semiballistic
120 mm, Flat front 90516506 100-5120-64-1210,10-20 8 x 14,5 (9/16), Spherical 8 x 12,7 (1/2), Spherical
125 mm, Flat front 90516227 100-5125-64-1210,10-20 8 x 14,5 (9/16), Spherical 10 x 12,7 (1/2), Spherical
130 mm, Flat front 90516007 100-5130-64-1218,10-20 8 x 15,8 (5/8), Spherical 8 x 14,5 (9/16), Spherical
140 mm, Flat front 90516447 100-5140-64-1218,10-20 8 x 15,8 (5/8), Spherical 10 x 14,5 (9/16), Spherical
152 mm, Flat front 90516446 100-5152-64-1217,10-20 8 x 15,8 (5/8), Spherical 8 x 15,8 (5/8), Spherical
115 mm, Speed bit 90516008 100-5115-64-1250,10-20 8 x 14,5 (9/16), Spherical 8 x 12,7 (1/2), Ballistic
120 mm, Speed bit 90516516 100-5120-64-1250,10-20 8 x 14,5 (9/16), Spherical 8 x 12,7 (1/2), Spherical
125 mm, Speed bit 90516364 100-5125-64-1250,10-20 8 x 14,5 (9/16), Spherical 10 x 12,7 (1/2), Ballistic
130 mm, Speed bit 90516365 100-5130-64-1250,10-20 8 x 14,5 (9/16), Spherical 10 x 12,7 (1/2), Ballistic
121 mm, Konkav 90516009 100-5121-64-0210,10-20 8 x 14,5 (9/16), Spherical 8 x 12,7 (1/2), Spherical
110 mm, Rocket bit 90516010 100-5110-64-623A,10-20 8 x 12,7 (1/2), Ballistic 8 x 12,7 (1/2), Ballistic
115 mm, Rocket bit 90516011 100-5115-64-623A,10-20 8 x 12,7 (1/2), Ballistic 8 x 12,7 (1/2), Ballistic
115 mm, Rocket bit 90516012 100-5115-64-6210,10-20 8 x 14,5 (9/16), Spherical 8 x 12,7 (1/2), Spherical





Foot valve 90516004 9115
Assembly tool 90516013 9141




E-kit
Product No. Product code Connection
89001473 9704-03-34-040 API 2 3/8" Reg. Pin
89001474 9704-12-34-040 Cubex # 24 Pin






ROSCHEN DTH Hammers Specifications
Hammer Size Bit Shank ROSCHEN Code Connection Thread Suitable bit Working pressure Air consumption
2" BR2 ROS 11 ROS 22 RD50 box ¢70-¢90mm 0.7-1.75Mpa 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" DHD3.5 ROS 32 API 2 3/8" Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
COP32/COP34
M30 1.5Mpa 9m3/min
4" DHD340 ROS 34 API 2 3/8" Reg ¢110-¢135mm 1.0-2.5Mpa 1.0Mpa 6m3/min
COP44
QL40
SD4 1.8Mpa 10m3/min
M40 2.4Mpa 15m3/min
5" DHD350 ROS 52 ROS 54 API 2 3/8"Reg/API 3 1/2" Reg ¢135-¢155mm 1.0-2.5Mpa 1.0Mpa 9m3/min
COP54
QL50
SD5 1.8Mpa 15m3/min
M50 2.4Mpa 23m3/min
6" DHD360 ROS 62 ROS 64 API 3 1/2" Reg ¢155-¢190mm 1.0-2.5Mpa 1.0Mpa 10m3/min
COP64
QL60
SD6 1.8Mpa 20m3/min
M60 2.4Mpa 28.5m3/min
8" DHD380 ROS 82 ROS 84 API 4 1/2" Reg ¢195-¢254mm 1.0-2.5Mpa 1.0Mpa 15m3/min
COP84
QL80 1.8Mpa 26m3/min
SD8 2.4Mpa 34m3/min
M80/M85
10" SD10 ROS 100 API 6 5/8" Reg ¢254-¢311mm 1.0-2.5Mpa 1.0Mpa 22m3/min
Numa100 1.8Mpa 40m3/min
ROS 100 2.4Mpa 55m3/min
12" DHD1120 ROS 120 API 6 5/8" Reg ¢305-¢445mm 1.0-2.5Mpa 1.0Mpa 30m3/min
SD12 1.8Mpa 56m3/min
Numa120 2.4Mpa 78m3/min
Notes:
Metzke, Remet thread is available!
Any special typ shank of DTH Hammer will be available by requests.
